User Manual
Thanks for purchasing the D-Power PROGCON program box, please read this manual carefully before using it.
The D-Power PROGCON LCD program box is the equipment that integrates multiple
functions, it is small to carry and convenient to set parameters for ESC (Electronic Speed Controller).
FEATURES
1. Working as an individual device to set the parameters for the ESC.
2. Working as a Lipo battery voltmeter to measure the voltage of the whole battery pack and each cell.
3. For the D-Power ESC with data returning feature, it can display real-time data including: voltage, current,
input throttle, output throttle, RPM, battery power, MOS temperature and motor temperature.
4. For the D-Power ESC with data logging feature, it can read the data including: maximum RPM, minimum
voltage, maximum current, external temperature, and maximum temperature.
5. PWM throttle signal detection: Identify and display the input throttle pulse width and frequency.
6. ESC/Servo Tester: It works like remote control to adjust the speed for ESC/servo by press the program
box's button.
SPECIFICATION
Size: 84*49*11.5mm Weight: 40g Power supply: DC5~12.6V
SUITABLE FOR THE FOLLOWING ESC
D-POWER AVICON
D-POWER AQUACON

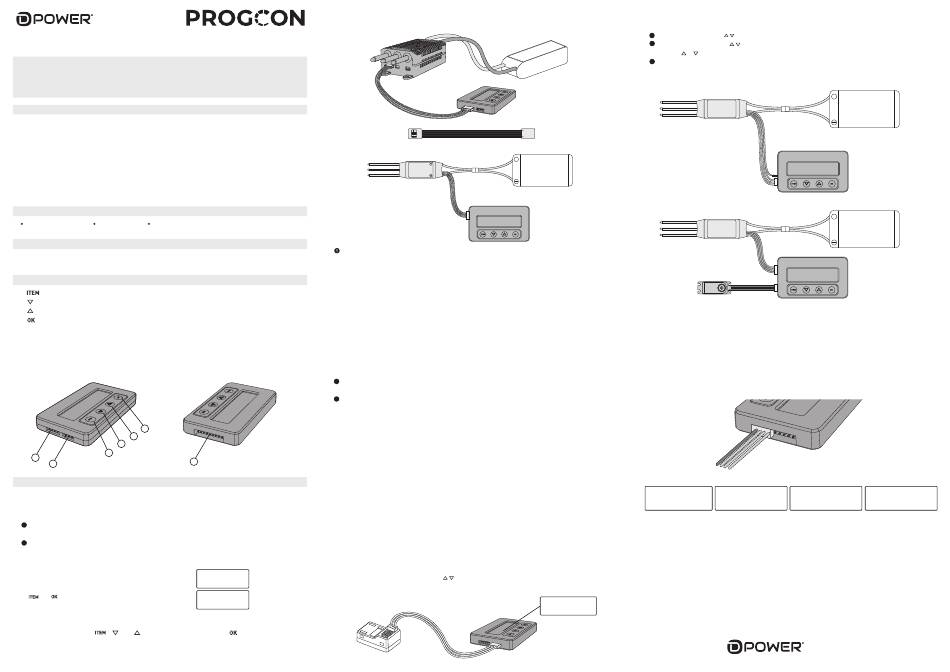

DESCRIPTION OF EACH BUTTON AND PORT
1. : Change the programmable items circularly.
2. : Change the programmable items circularly in positive direction.
3. : Change the programmable items circularly in negative direction.
4. : Save and send the current parameters into the ESC.
5. ESC: Use programming line to connect this port with programming port of ESC.
6. Programming box power supply input port: When the programming port of ESC has no voltage
output such as OPTO ESC, a separated battery or UBEC is needed to supply power for LCD
programming box from this port.
7. Battery Check: Connect this port with the balance charging connectors of the battery.
�
�
�
�
�
�
�
INSTRUCTIONS
A. Working as an individual device to set the parameters for the ESC
1. Disconnect the battery from the ESC.
2. Select the corresponding connection method, and connect the ESC with LCD program box.
�
If the programming line of ESC shares a same line with throttle line, then unplug throttle line from
receiver and plug into "ESC" port of LCD program box correspondingly.
�
If the ESC has independent programming port, then using programming line to connect
programming port of ESC with "ESC" port of LCD program box.
3. Connect the ESC to battery.
4. If the connection is correct, LCD program box shows initial screen,
" " or" "button on the LCD program box, the screen shows
shows the 1st programmable item after a few seconds, which means LCD program box connects with
ESC successfully. Press the " " " " and " " button to select the options, press "
to save data.
For OPTO ESC, a separated battery or UBEC is needed to supply power for LCD
programming box from this port.
Note：
1. Reset the ESC by the LCD program box
When the connection between ESC and LCD program box is successfully established, press "ITEM"
button for several times until the "Restore Default" is displayed, press "OK" button, then all
programmable items in the current profile are reset to factory default options.
2. Read the data logging of ESC by LCD program box
For the ESCs with data logging function, the following data can be displayed after the menu of "Restore
Default": maximum RPM, minimum voltage, maximum current, external temperature, and maximum
temperature. (ESCs without data logging function will not display these data)
3. Check the ESC running data in real time by LCD program box
For the ESCs with data returning function, when the connection between ESC and LCD program box is
successfully established:
�
The LCD program box can display the following data in real time: voltage, current, input throttle,
output throttle, RPM, battery power, MOS temperature and motor temperature.
�
If the ESC has errors, the LCD program box will display the current error circularly. The errors are as
below:
SC Protection
Break Protection
Loss Protection
Zero Protection
LVC Protection
Temp Protection
Start Protection
OC Protection
PPM_THR ERROR
UART_THR ERROR
UART_THR LOSS
CAN_THR LOSS
BAT_VOT ERROR
B. PWM throttle signal detection
When the PWM signal device such as the receiver is in normal working state, connect the receiver and
LCD program box, Press and hold the buttons
PB-G2-V1.00 press
Signal", it can identify and display the input throttle pulse width and frequency.
，then it
ESC CONNECTING
" button
ESC Battery
Program Box
Program wires for LCD program box
+
+
ESC
Battery
Signal wire
Program Box
Short circuit protection
Motor wire brake protection
Throttle loss protection
Throttle is not in zero position when powered up
Low voltage protection
Temperature protection
Start locked rotor protection
Over currect protection
The PPM throttole is not in the range
The UART throttle is not in the range
UART throttle loss
CAN throttle loss
The battery voltage is not in the range
for 3 seconds at the same time, Then select "Input
INPUT SIGNAL
1003US 49HZ
C. ESC/Servo Tester
It works like remote control to adjust the speed for ESC/servo by press the program box's button.
�
Press and hold the buttons for 3 seconds at the same time, then select "Output Signal".
�
Press the button respectively , the throttle will be increased or decreased in units of "1us", long
press the or button for about 3 seconds to quickly increase or decrease the throttle.
�
Press the "ITEM" button, the throttle will decrease in units of "100us", press the "OK" button, the
throttle will increase in units of "100us".
ESC
Signal wire
ESC
Signal wire
Servo
D. Working as a Lipo battery voltmeter to measure the voltage of the whole
battery pack and each cell
1. Battery: 2-8SLi-Polymer/Li-Lon/LiHV/Li-Fe
2. Precision: ±0.1V
3. Usage: Plug the battery balance charge connector into the "BATTERY CHECK" port of the LCD program
box separately, (Please make sure that the negative pole points to the"-" symbol on the program box).
Battery Voltage 1: 3.74V 2: 3.76V
