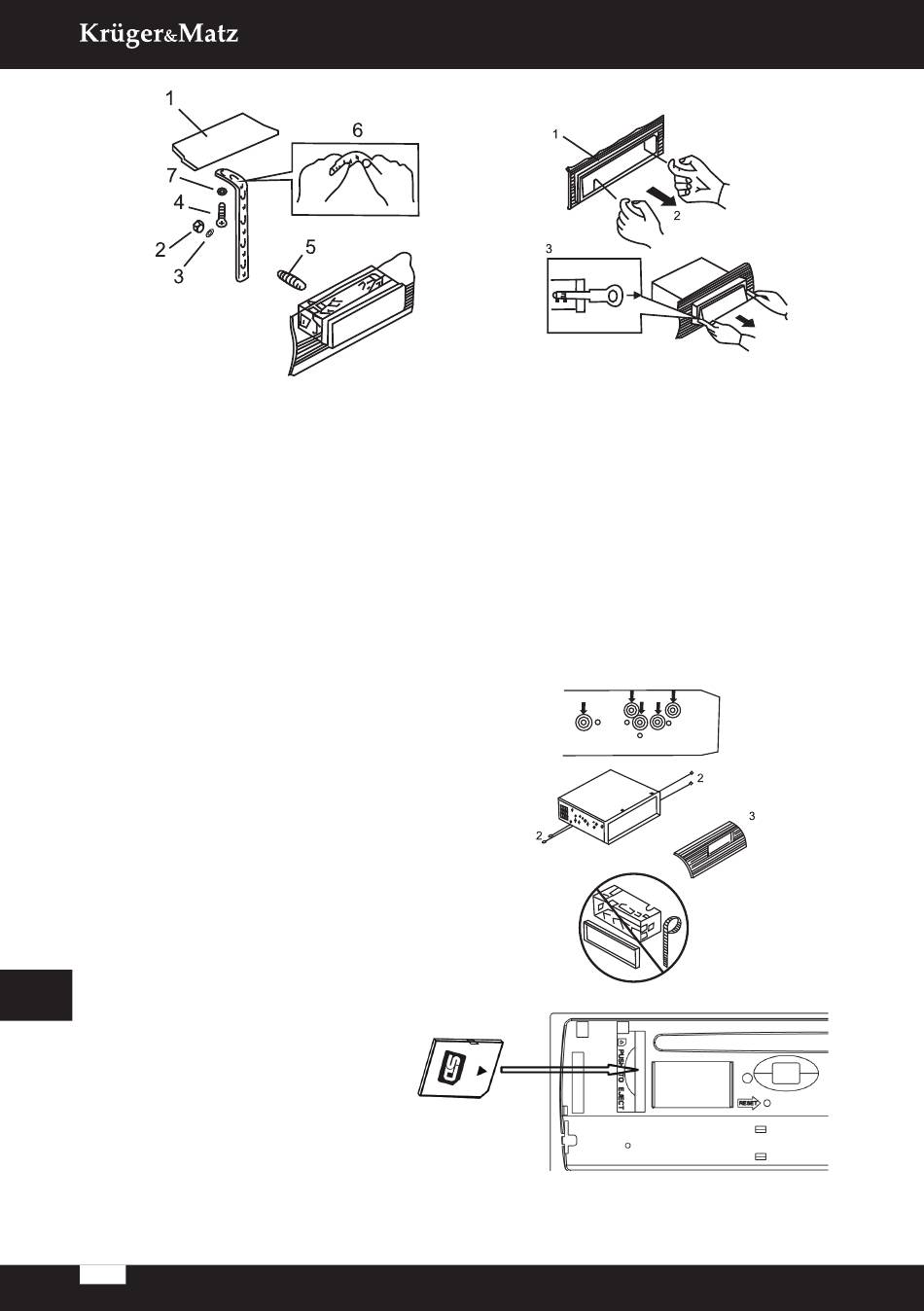

DIN REAR-MOUNT (Method B)

Installation using the screw holes on the
sides of the unit
Fastening the unit to the factory radio
mounting bracket:
1. Select a position where the screw
holes oft he bracket and the screw holes
of the main unit become aligned (are
fitted), and tighten the screws at 2 places
on each side. Use either truss screws (5 x
5mm) or flush surface screws (4 x 5mm)
2. Screw
3. Dashboard or Console
EN
INPUT THE SD CARD
The SD oblique angle keeps
Rightward exposure, put into
the SD slot and press it again to
eject.
14
Fig.2
Fig.3
1. Frame
2. Insert fingers into the groove in the
front of frame and pull out to remove
the frame. (When reattaching the frame,
point the side with a groove downwards
and attach it.)
3. Lever
Insert the levers supplied with the unit
into the grooves at both sides of the unit
and shown in figure until they click. Pull-
ing the levers makes possible to remove
the unit from the dashboard.
