TC3224N9 Defrost Controller European Installation Guide
For refrigerated cabinets, counters and islands, with energy-saving strategies.

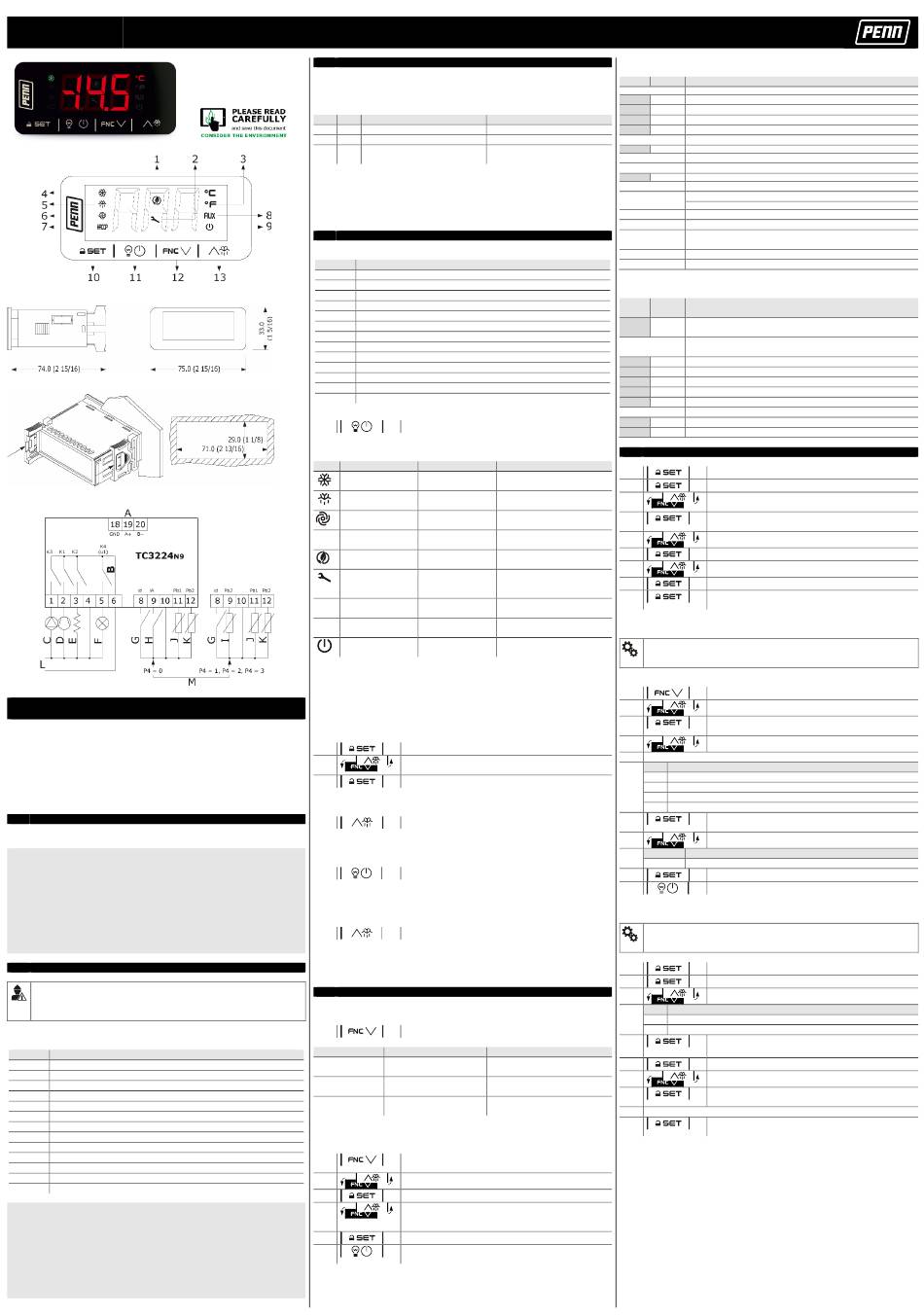

Figure 1: UI
Figure 2: Dimensions, mm (in.)
Figure 3: Drilling template, mm (in.)
Figure 4: Electrical connection
ENGLISH
- Controller for low temperature units
- Universal power supply 115 VAC to 230 VAC
- Incorporated clock
- Cabinet probe and evaporator probe with a negative temperature coefficient (NTC),
10 kohm at 25°C
- Door switch input
- Alarm buzzer
- RS-485 Modbus® subordinate port for Building Management System (BMS)
- Cooling or heating operation
1 MEASUREMENTS AND INSTALLATION
For the dimensions and drilling template, see Figure 2 and Figure 3. Fit the controller to a panel
with the snap-in brackets supplied.
INSTALLATION PRECAUTIONS
- Ensure that the thickness of the panel is between 0.8 mm and 2.0 mm (1/32 in. and
1/16 in.)
- Ensure that the working conditions are within the limits stated in the TECHNICAL
SPECIFICATIONS section.
- Do not install the device close to heat sources, equipment with a strong magnetic field,
in places subject to direct sunlight, rain, damp, excessive dust, mechanical vibrations,
or shocks.
- In compliance with safety regulations, install the device correctly to ensure adequate
protection from contact with electrical parts. Fix all protective parts in such a way so as
to need the aid of a tool to remove them.
2 ELECTRICAL CONNECTION
Important
- Use cables of an adequate wire gauge for the current running through them.
- To reduce any electromagnetic interference, connect the power cables as far away
as possible from the signal cables.
For the electrical connection diagram, see Figure 4.
Electrical connection diagram callouts
Callout Description
A RS-485 Modbus port
B Note: Maximum 12 A
C Evaporator fans
D Compressor
E Defrost
F Cabinet light, configurable
G Door switch
H Multi-purpose
I Auxiliary, configurable
J Cabinet, configurable
K Evaporator
L Power supply for TC3224N9x: 115 VAC to 230 VAC
M Configurable input
PRECAUTIONS FOR ELECTRICAL CONNECTION
If you use an electrical or pneumatic screwdriver, adjust the torque to a maximum of
-
0.5 N•m (4 in. lb).
If you move the device from a cold to a warm place, the humidity may cause
-
condensation to form inside. Wait an hour before you switch on the power.
Make sure that the supply voltage, electrical frequency, and power are within the set
-
limits. See TECHNICAL SPECIFICATIONS.
Disconnect the power supply before you do any type of maintenance.
-
Do not use the device as safety device.
-
For repairs and further information, contact the Penn sales network.
-
3 FIRST-TIME
1. Follow the instructions in MEASUREMENTS AND INSTALLATION to install the controller.
2. Power up the device as shown in ELECTRICAL CONNECTION and an internal test runs.
The test normally takes a few seconds. When it finishes the display switches off.
3. Configure the device as shown in Table 6.1 in SETTINGS.
For recommended configuration parameters for first-time use, see the following table.
PAR. DEF. PARAMETER
SP 0.0 Setpoint
P2 0 Temperature unit of measurement
d1 0 Defrost type
Check that the remaining settings are appropriate; see CONFIGURATION PARAMETERS.
4. Disconnect the device from the mains.
5. Make the electrical connection as shown in ELECTRICAL CONNECTION without powering
up the device.
6. Power up the device.
4 UI AND MAIN FUNCTIONS
For a figure of the UI, see Figure 1.
UI callouts
Callout Description
1 Energy saving
2 Compressor service
3 Temperature unit of measurement
4 Compressor
5 Defrost
6 Evaporator fan
7 Hazard Analysis and Critical Control Point (HACCP)
8 Auxiliary load
9 On or standby
10 SET key and keypad lock
11 ON/STANDBY key, escape, and auxiliary load
12 DOWN key and additional functions menu
13 UP key and defrost
4.1 Switching the device on or off
1. If POF = 1, tap the ON/STAND-BY key for 4 s.
If the device is switched on, the display shows the P5 value, cabinet temperature by default. If
the display shows an alarm code, see ALARMS.
LED ON OFF
Compressor on Compressor off
Defrost or pre-dripping -
active
Evaporator fan on Evaporator fan off
HACCP Saved HACCP alarm -
Energy saving active -
Request for compressor -
service
°C/°F View temperature -
AUX Auxiliary load on Auxiliary load off
Device off Device on
If 30 s elapse and you do not press the keys, the display shows the "Loc" label and the keypad
locks automatically.
4.2 Unlocking the keypad
Tap any key for 1 s. The display shows the label "UnL".
4.3 Setting the setpoint
Check that the keypad is not locked.
1. Tap the SET key.
2. Tap the UP or DOWN key within 15 s to set the value within the
limits r1 and r2.
3. Tap the SET key (or do not operate for 15 s).
4.4 Activating manual defrost (if r5 = 0, default)
Check that the keypad is not locked and that overcooling is not active.
1. Tap the UP key for 2 s.
If P3 = 1 (default), the defrost activates if the evaporator temperature is lower than the d2
threshold.
4.5 Turning the cabinet light on or off (if u1 = 0, default)
1. Tap the ON/STAND-BY key.
- if u1 = 1, the anti-fog switches on for the u6 duration.
- if u1 = 2, r13 = 0, and the keypad is not locked, the key-operated load switches on
or off.
4.6 Turning the key-operated load on or off (if u1 = 2 and r13 = 1)
1. Tap the UP key.
4.7 Silencing the buzzer (if A13 = 1)
Tap any key.
If u1 = 3 and u4 = 1, the alarm output switches off.
5 ADDITIONAL FUNCTIONS
5.1 Activating or deactivating the overcooling, overheating, and manual energy
saving
Check that the keypad is not locked.
1. Tap the DOWN key.
FUNCTION CONDITION CONSEQUENCE
Overcooling r5 = 0, r8 = 1 and defrost not The setpoint becomes "setpoint - r6",
active for the r7 duration
Overheating r5 and r8 = 1 The setpoint becomes "setpoint + r6",
for the r7 duration
Energy saving r5 = 0 and r8 = 2 The setpoint becomes "setpoint + r4",
at maximum for the HE2 duration
5.2 Navigating the additional functions menu
Before you begin, check that the keypad is not locked.
1. To access the additional functions menu, tap the DOWN key for
4 s.
2. To navigate to a label, tap the UP or DOWN key within 15 s.
3. To select a label, tap the SET key.
4. If you cannot edit the parameter, the value displays.
If you can edit the parameter, tap the UP or DOWN key to
navigate to the value that you want.
5. To set the parameter value, tap the SET key.
6. To exit the procedure, tap the ON/STAND-BY key, or do not
operate the controller for 60 s.
5.3 Additional functions menu
Use the additional functions menu to cycle through the labels in the following table.
LABEL
VALUE
LS
AL
AH
MIN. - MAX. id
r1 to r2
PF
0 = °C 1 = °F rLS
149
0 = Electric 1 = Hot gas
CH
2 = Compressor stopped
rCH
149
nS1
Pb1
Pb2
Pb3
Pb4
PrJ
rEU
5.4 Alarm information example
The following table shows an example of information for a high temperature alarm.
LABEL
SAMPLE
VALUE
8.0
Sta
y15
n03
d26
h16
n30
dur
h01
n15
6 SETTINGS
6.1 Setting configuration parameters
FLASHING
1.
- Compressor protection active
2.
- Setpoint setting active
- Defrost delay active
3.
- Dripping active
Evaporator fan stop active
4.
New HACCP alarm saved
5.
6.
-
7.
- Settings active
8.
- Access to additional functions
active
9.
Overcooling or overheating active
- Auxiliary load on by digital input
6.2 Setting the date, time, and day of the week
- Auxiliary load delay active
Device on/off active
Important
Do not disconnect the device from the mains within 2 minutes of setting the time and
day of the week.
Check that the keypad is not locked.
1.
2.
3.
4.
5. Repeat actions 3. and 4. to set the next labels.
LAB.
n
d
h
n
6.
7.
LAB.
Mon to Sun Monday to Sunday
8.
9.
6.3 Restoring the default factory settings and storing customized settings as
default
Important
- Check that the factory settings are appropriate; see CONFIGURATION PARAMETERS.
- When you store customized settings, you overwrite the default.
1.
2.
3.
VAL.
149
161
4.
5.
6.
7.
8. Interrupt the power supply to the device.
9.
DESCRIPTION
View HACCP alarm information
Low temperature alarm information
High temperature alarm information
Door switch alarm information
Power failure alarm information
Delete HACCP alarm information
Command to delete HACCP alarm information
View compressor functioning hours in hundreds
Delete compressor functioning hours
Command to delete compressor functioning hours
View compressor start-up number in thousands
Cabinet temperature if P4 = 0, 1, or 2
Inlet air temperature if P4 = 3
Evaporator temperature if P3 = 1 or 2
Auxiliary temperature if P4 = 1, 2, or 3
Calculated product temperature (CPT) if P4 = 3. See P7 in
CONFIGURATION PARAMETERS for more information.
View the project number
View the firmware revision
DESCRIPTION
The critical value was 8.0°C or 8.0°F. The critical value can be cabinet
temperature or CPT.
The time at which the alarm signaled, for example:
26 March 2015 at 16:30
2015
March
26 March 2015
16:xx
16:30
The alarm duration, for example 1 h 15 min
1 h
1 h 15 min
Tap the SET key for 4 s. The display shows the label "PA".
Tap the SET key. The display shows the label "PAS".
Tap the UP or DOWN key within 15 s to set the password. The
default password is "-19".
Tap the SET key or do not operate for 15 s. The display shows the
label "SP".
Tap the UP or DOWN key to select a parameter.
Tap the SET key.
Tap the UP or DOWN key within 15 s to set the value.
Tap the SET key or do not operate for 15 s.
Tap the SET key for 4 s or do not operate for 60 s to exit the
procedure.
Tap the DOWN key for 4 s.
Tap the UP or DOWN key within 15 s to select the label "rtc".
Tap the SET key. The display shows the label "yy" followed by the
last two figures of the year.
Tap the UP or DOWN key within 15 s to set the year.
DESCRIPTION
Month (01 to 12)
Day (01 to 31)
Time (00 to 23)
Minute (00 to 59)
Tap the SET key. The display shows the label for the day of the
week.
Tap the UP or DOWN key within 15 s to set the day of the week.
DESCRIPTION
Tap the SET key. The device exits the procedure.
Tap the ON/STAND-BY key to exit the procedure beforehand.
Tap the SET key for 4 s. The display shows the label "PA".
Tap the SET key.
Tap the UP or DOWN key within 15 s to set the value.
DESCRIPTION
Restores the default factory settings
Stores customized settings as default
Tap the SET key or do not operate for 15 s. The display shows the
label "dEF" when you set the value "149" or the label "MAP"
when you set the value "161".
Tap the SET key.
Tap the UP or DOWN key within 15 s to set "4".
Tap the SET key or do not operate for 15 s. The display shows
"- - -" flashing for 4 s, then the device exits the procedure.
Tap the SET key 2 s before step 6. to exit the procedure
beforehand.
