ND tackle WI-FI SONAR Benutzerhandbuch

Mobile Fish Finder
WI-FI SONAR RANGE EXTENDER
Quick User Guide
-Waterproof - Long Range
Tablet holder
Tripod holder

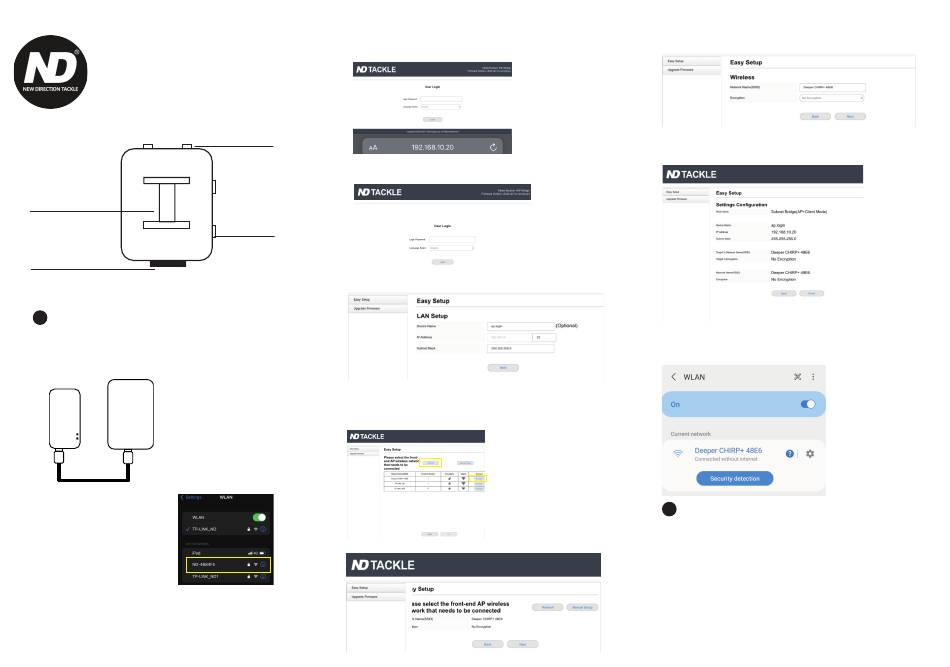

Setup the Range Extender with Sonar
1.Open the box and connect a power bank to the range extender
or use the ND battery pack with XT-60 plug. The router will need
some seconds to start.
Power bank
Range extender
2.Connect your phone or
computer to the Wifi
connection of the
ND Extender.
(ND-****) The Wifi password
is 12345678
3. You can access the configuration page via a web browser:
Open a web browser and type in the IP address 192.168.10.20
Antenna
4. Enter the password at the login mask. Password is "admin".
Click on Login.
Locker
5. Click on the "Easy Setup" button, then click on the "Next" button.
6. Press on the "Refresh" button to start scanning for Wifi networks.
To select your sonar network ("Deeper CHIRP+ ***"),
click on "Connect" button
7.Confirm the information just by a click on "Next"
8. Click on the "Next" button again.
9. Click on "Finish". The router will restart with the new settings.
You can close the configuration page.
10. Wait 30 seconds, Link your Phone/Tablet to the Wifi network
of the Sonar. The Range Extender will work in the background
and expand the Wifi coverage.
Additional Notes
How to reset the Extender
Power on the device. After 60 seconds long press the small reset
button on the extender for 5 seconds. The LEDs will flash, then
the device will automatically reset to default. It will take a while
until you can see the Range Extender Wifi network after the reset.
You also won´t be able to connect to the Range Extender only when
the sonar is not switched on because the sonar acts as DHCP server.
To change the configuration of the Range Extender you need to reset
the device first and run the setup process again.
