SYSTEM SETUP
Central siren
Indicator LEDs
2 m
2 m
10 cm
Antenna
(do not connect)
15
BLACK
Ground (-)
RED
+12V Battery
ORANGE
200mA (-)
+12V battery
BLUE
Perimetry (-)
WHITE
+12V AFTER CONTACT

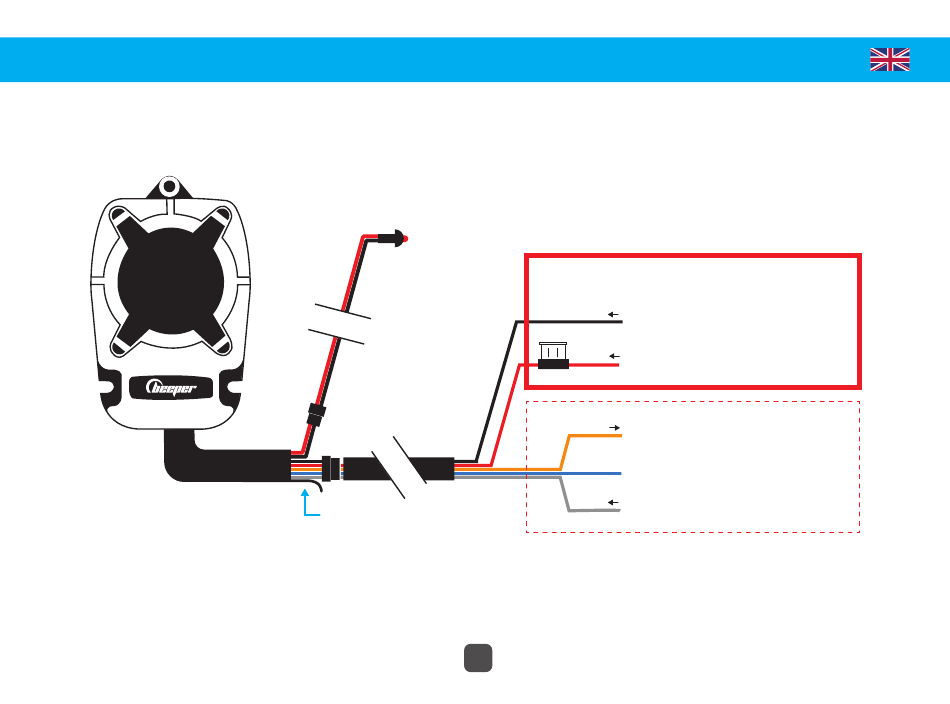

Connections
MANDATORY
87A 30
Connections
OPTIONAL
(see details
on page 18)
