Givi SR361 Bauanleitung

PORTAVALIGIA SPECIFICO - SPECIFIC CASE HOLDER
PORTE-VALISE SPÉCIFIQUE - SPEZIFISCHER KOFFER-TRÄGER
PORTA-EQUIPAJE ESPECÍFICO
YAMAHA X-City 250 2007

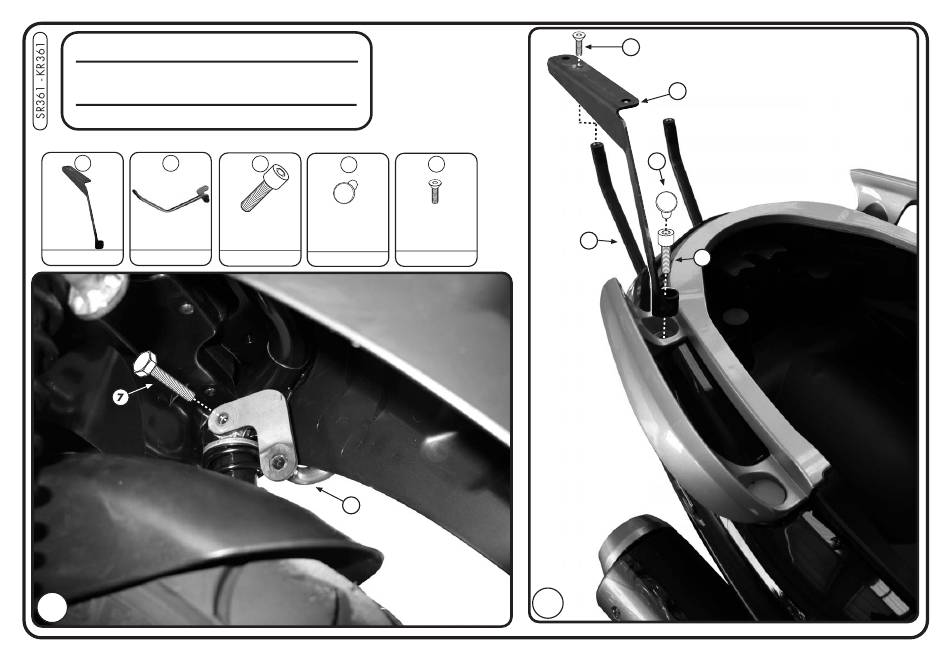

ISTRUZIONI DI MONTAGGIO - MOUNTING INSTRUCTIONS
INSTRUCTIONS DE MONTAGE - BAUANLEITUNG - INSTRUCCIONES DE MONTAJE
1 2
VITE TCEI M8x35mm
SUPPORTO SUPPORTO
SCREW M8x35mm
SUPPORT SUPPORT
VIS M8x35mm
SUPPORT SUPPORT
SCHRAUBE M8x35mm
HALTERUNG HALTERUNG
TORNILLO M8x35mm
SOPORTE SOPORTE
Q.TY n.2 Q.TY n.2
(Dx-Sx) (Dx-Sx)
A
All manuals and user guides at all-guides.com
3
4
VITE TSCEI M6x16mm
COPRIVITE Ø8mm
Z801 SCREW M6x16mm
SCREW CAP
VIS M6x16mm
CACHE VIS SCHRAUBE M6x16mm
STOPSSCHRAUBE
TORNILLO M6x16mm
TAPA TORNILLO
Q.TY n.2 Q.TY n.2
Q.TY n.2
2
5
2
B
5
1
4
3
© Copyright 24052007AB- Rev01 , 1/3
