EN

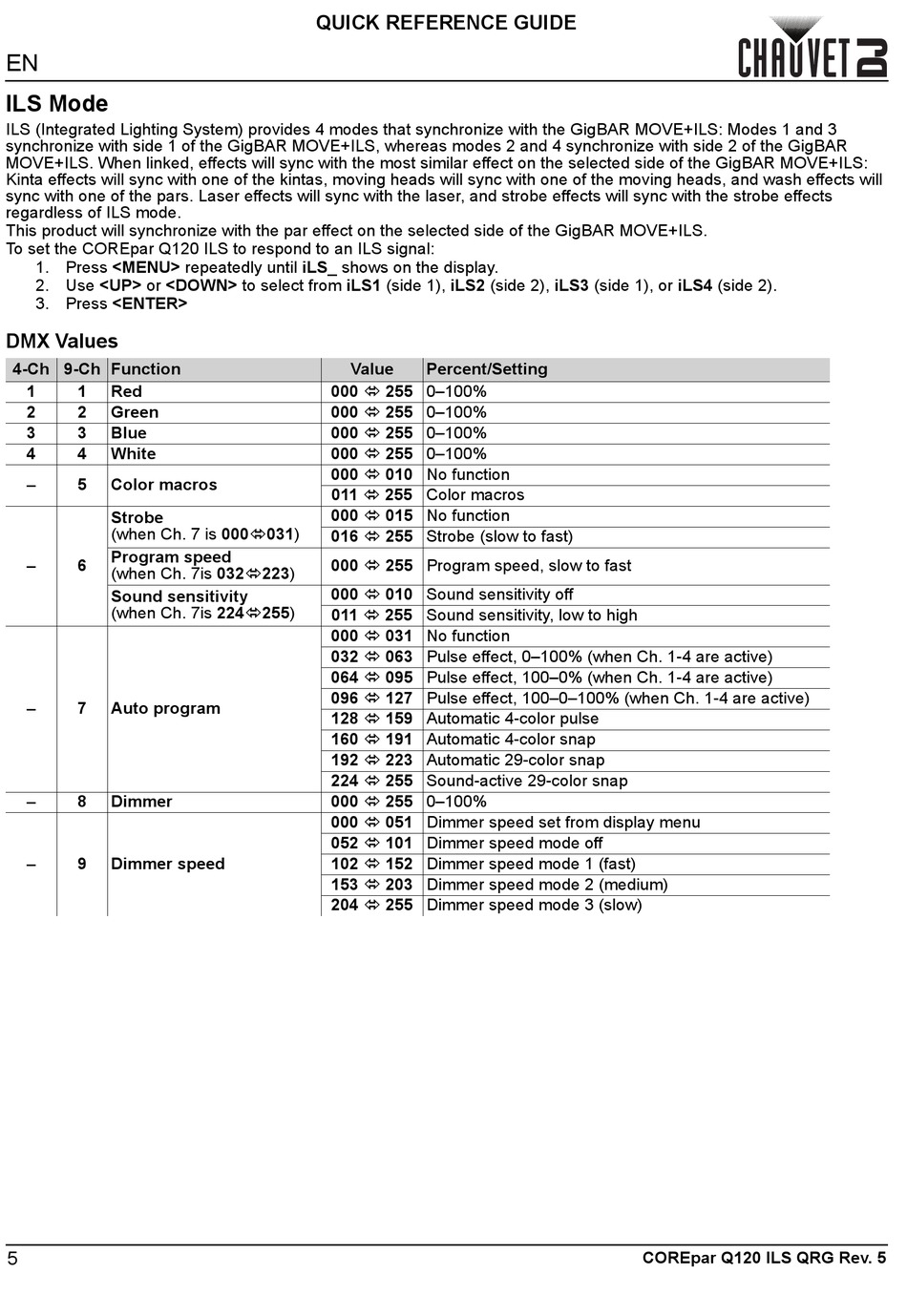

ILS Mode
ILS (Integrated Lighting System) provides 4 modes that synchronize with the GigBAR MOVE+ILS: Modes 1 and 3
synchronize with side 1 of the GigBAR MOVE+ILS, whereas modes 2 and 4 synchronize with side 2 of the GigBAR
MOVE+ILS. When linked, effects will sync with the most similar effect on the selected side of the GigBAR MOVE+ILS:
Kinta effects will sync with one of the kintas, moving heads will sync with one of the moving heads, and wash effects will
sync with one of the pars. Laser effects will sync with the laser, and strobe effects will sync with the strobe effects
regardless of ILS mode.
This product will synchronize with the par effect on the selected side of the GigBAR MOVE+ILS.
To set the COREpar Q120 ILS to respond to an ILS signal:
1. Press <MENU> repeatedly until iLS_ shows on the display.
2. Use <UP> or <DOWN> to select from iLS1 (side 1), iLS2 (side 2), iLS3 (side 1), or iLS4 (side 2).
3. Press <ENTER>

DMX Values

4-Ch 9-Ch Function
1 1 Red
2 2 Green
3 3 Blue
4 4 White
– 5 Color macros
Strobe
(when Ch. 7 is 000031)
Program speed
– 6
(when Ch. 7is 032223)
Sound sensitivity
(when Ch. 7is 224255)
– 7 Auto program
– 8 Dimmer
– 9 Dimmer speed
5
QUICK REFERENCE GUIDE
Value Percent/Setting
000  255 0–100%
000  255 0–100%
000  255 0–100%
000  255 0–100%
000  010 No function
011  255 Color macros
000  015 No function
016  255 Strobe (slow to fast)
000  255 Program speed, slow to fast
000  010 Sound sensitivity off
011  255 Sound sensitivity, low to high
000  031 No function
032  063 Pulse effect, 0–100% (when Ch. 1-4 are active)
064  095 Pulse effect, 100–0% (when Ch. 1-4 are active)
096  127 Pulse effect, 100–0–100% (when Ch. 1-4 are active)
128  159 Automatic 4-color pulse
160  191 Automatic 4-color snap
192  223 Automatic 29-color snap
224  255 Sound-active 29-color snap
000  255 0–100%
000  051 Dimmer speed set from display menu
052  101 Dimmer speed mode off
102  152 Dimmer speed mode 1 (fast)
153  203 Dimmer speed mode 2 (medium)
204  255 Dimmer speed mode 3 (slow)
COREpar Q120 ILS QRG Rev. 5
