9.02 Installation for gas powered models
Switch
Receiver

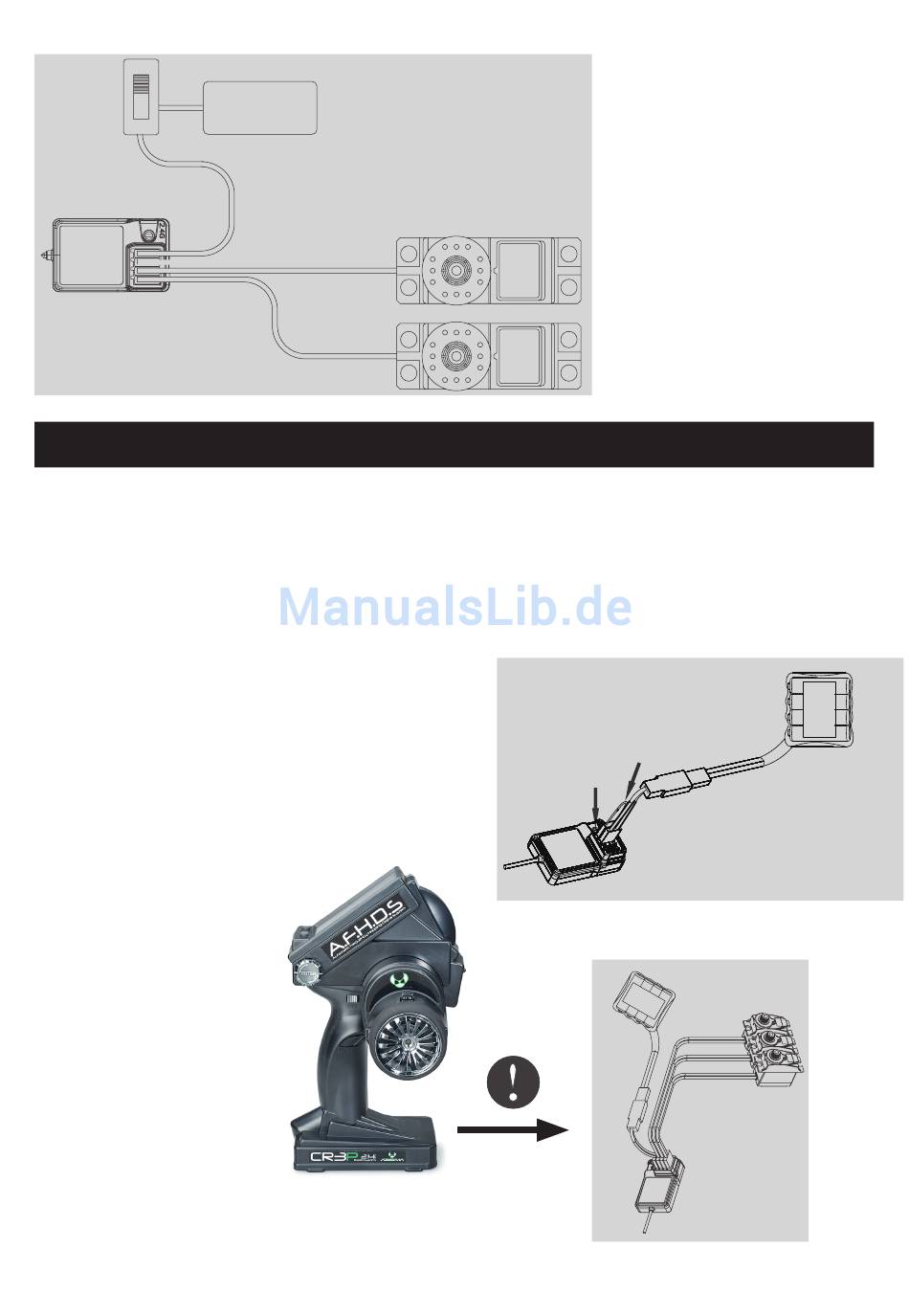

10. 2.4 GHz Operation Notes

10.01 Matching (Code)
Our products are well matched in the factory, you don't need to match
by yourself. But if you are going to match the receiver with another
transmitter, or you need to change a new receiver or transmitter,
please follow the following steps:
• Install the battery to 2.4 GHz transmitter and shut it down.
• Insert the matching lines to the channel BIND/CH4 port of the
receiver. (Figure 2)
• Connect the receiver battery to VCC port of the receiver, on the
same time the two LED are flashing and this means the receiver
is going to the matching status.
• Press and hold the button on the transmitter, and the switch on the
power supply.
• Observe the LED of the receiver, if you find that the LED is not
flashing anymore, and that means succussful matched (This
process takes about 5 sec.).
10.02 Power on
• Connect every part.
• Switch on the power supply of the transmitter.
• Connect the power supply of the receiver.
• Receive LED light solid.
• Finish and use.
Battery
1.5 AA x4
Throttle
Steering
system
1. Tx power ON
Servo
• Release the match button on the transmitter, take out the match
line.
• Install the server and then test.
• If the test fails, please repeat the action above.
• If the test succeeds, insert the power supply port into VCC, match
is complete. (The above ways of match is only suitable for 2.4 GHz
products).
Match line
LED
Receiver
Power ON
Battery
Figure 2
2. Rx power ON
