Schartec RX-WIFI Anleitung Seite 3

ENGLISH
Schartec RX-WIFI receiver
Power supply: 12-24 V AC/DC
Channels: 2
WIFI: EEE 802.11b/g/n
Working temperature: -20°C to +60°C
Article number: ST401004
• Never give the smartphone with the SCHARTEC Smart App in the hands of children.
• The SCHARTEC app may only be operated by persons who are familiar with the system and have been instructed in its functions.
• Only use the SCHARTEC Smart App when you can see the door system.
• If you operate the door system even if you cannot see it at the moment, the use of a photocell is mandatory. Only use original SCHARTEC accessories such as the SPCM photocell (article number:
ST201008).
• Before operation, make sure that you are aware of all regulations, standards and safety instructions and that these are also complied with.
• Local conditions may affect the range of the system.
• Google Play and the Google Play logo are registered trademarks of Google Inc.
• Apple and the Apple logo are registered trademarks of Apple Inc. registered in the U.S. and other countries. The Apple Store is a service mark of Apple Inc. registered in the U.S. and other countries.
IMPORTANT!
Before using the WIFI functions make sure that:
1. Sufficient WIFI signal strength is present at the mounting location. At least 3 out of 4 bars. Otherwise, there may be malfunction, disconnection or no function at all.
2. There is sufficient Wifi signal strength at your smartphone. At least 3 out of 4 bars. Otherwise, there may be malfunctions, disconnections or no function at all.
3. Bluetooth is switched on at your smartphone.
4. The location on your smartphone is active.
5. You have the WIFI network name and the WIFI password ready.
6. You have downloaded and installed the SCHARTEC Smart App.
7. The garage door / gate opener has been professionally installed, programmed and is ready for operation.
8. This is a universal, external device and therefore cannot query the door status of the door operator. To view the door status, please use a conventional magnetic contact on the closing edge of your
door and connect it to the RX-WIFI.
IMPORTANT! The gate/door status cannot be viewed without the use of a magnetic contact, as this is a universal, external device which cannot access the software of the gate operator. Use an addi-
tional magnetic contact on your gate to be able to see the status on the APP. Therefore, only operate the gate operator with the APP if you can see the gate system.
The RX-WIFI has 2 channels (pulse controlled). S1 stands for channel 1 and S2 for channel 2. You can thus control up to 2 different gate/door operators with the APP.
Pairing RX-WIFI with the SCHARTEC Smart APP
1. Open the SCHARTEC Smart APP.
2. In the SCHARTEC Smart app, go to the "+" at the top right and then to "Add device". The SCHARTEC smart APP automatically starts the device detection and searches for compatible devices in the
network.
ATTENTION! It should automatically display that the RX-WIFI has been found. If it is not displayed:
• Check the power supply again.
• The receiver is connected to another device and must be reset! Simply press the S1 button and hold it down for about 10 seconds. The receiver will reset and will then be discovered by the app.
3. When the icon with the garage appears, click the "Add" button to the right of it.
4. Now enter your WIFI information. In the upper field enter the network name and in the lower field the corresponding WIFI password. ATTENTION! Your WIFI network must be 2.4 GHz capable. Other-
wise the RX-WIFI cannot be paired.
5. The device will be added. This process can take up to 2 minutes.
6. After successful pairing, click the "Finish" button at the bottom. The RX-WIFI is now linked to the SCHARTEC Smart APP and can be operated.
Schartec hereby declares that the radio equipment type RX-WIFI is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address:
Scan me to download the
SCHARTEC Smart App for Apple
and Android!
Programming video:
can be found at www.schartec.de
Simplified EU Declaration of Conformity (CE)
www.schartec.de
SCHARTEC
a trademark of bau-shop-24 GmbH
Fritz-Müller-Strasse 115
73730 Esslingen
Germany
WEEE Reg. Nr.: DE90317979

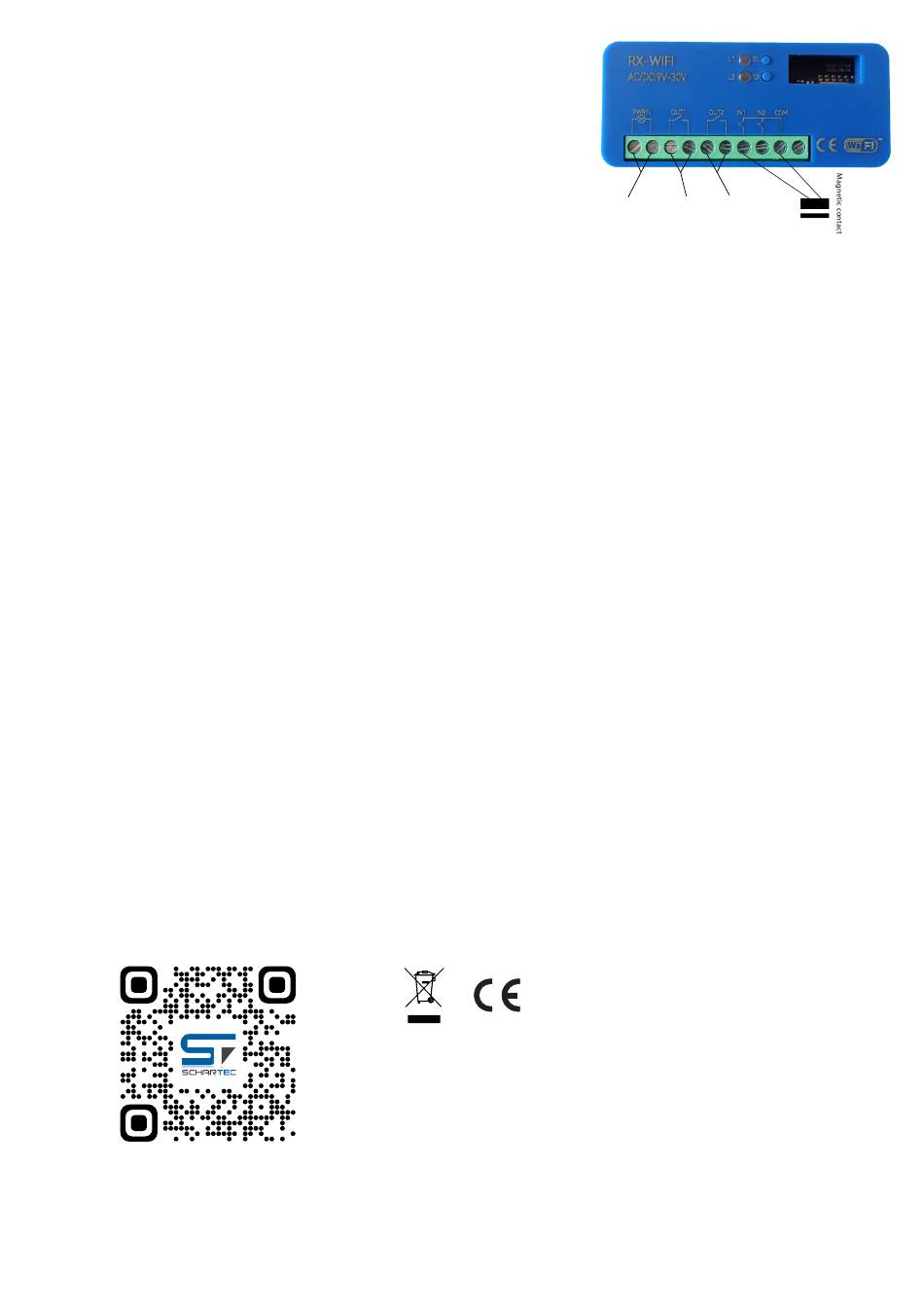

3.
Power Supply Limit
Connection Connection
channel 1 channel 2
12-24 V AC/DC Switch
