3. PRODUCT OVERVIEW

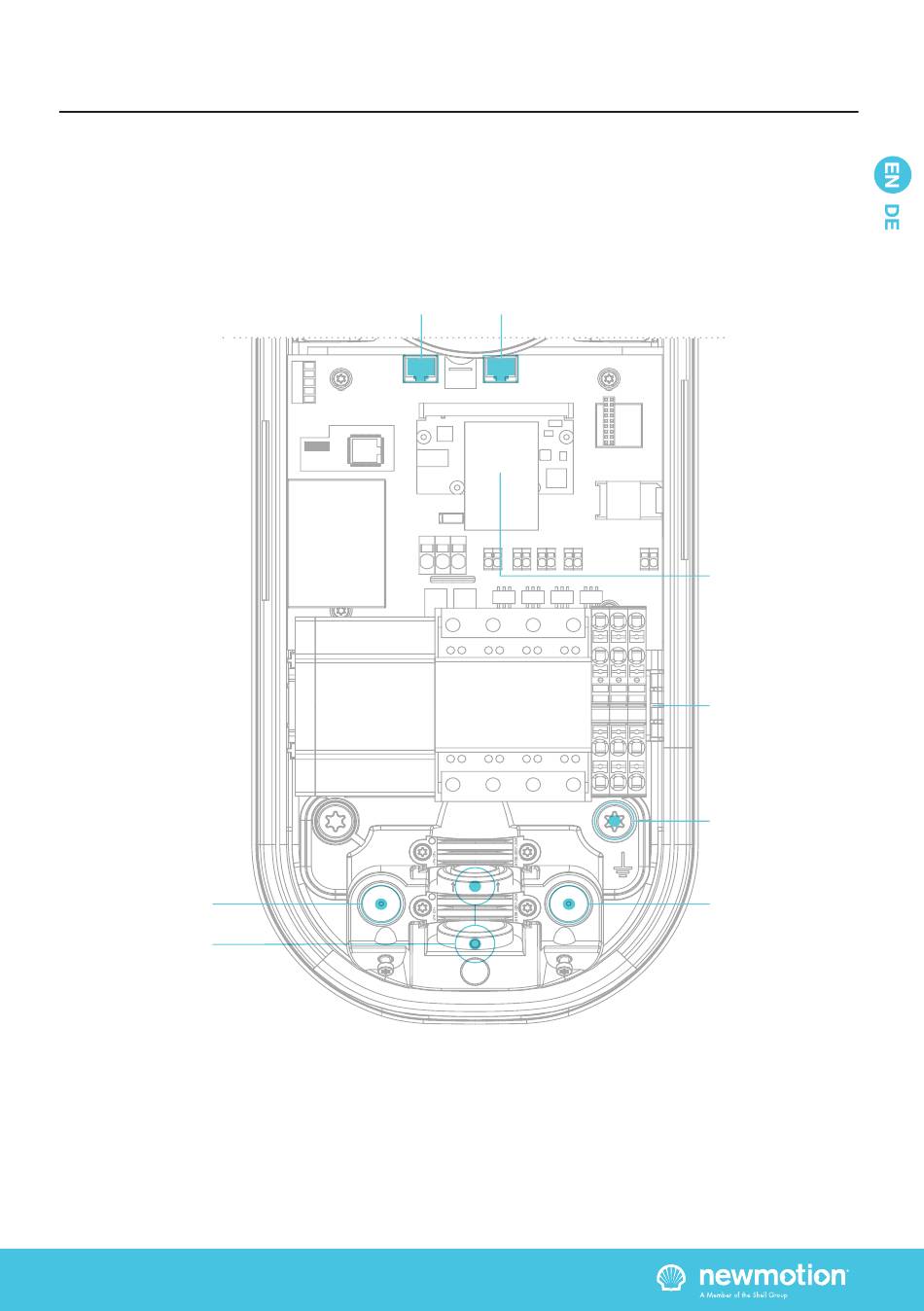

Terminal block
L1
N
PE (earthing)
Phase 2
Phase 3
UTP data cable inlet
with rubber seal
Inlet for power
cable with tension
relief clamps
If connecting to a 230V 3-phase grid without neutral; only install 1-phase and connect one of the two other phase
wires in the neutral wire connection on the terminal block.
INSTALLATIEHANDLEIDING – P11
INSTRUCTION MANUAL – P11 | P11
Business Pro:
RJ45 UTP data port for
Ethernet / Mobile router
connection
Business Lite:
RJ45 UTP data port for
connection switch (star
configuration) or daisy
chain incoming
VERSION 0129NM02INT01
095NM21INT02
Business Pro:
RJ45 UTP data port for
connection Switch in star
configuration or Business
Lites in Daisy chain
configuration
Business Lite:
RJ45 UTP data port for
daisy chain outgoing
INSIDE
DC-fault current
detection module
Tension relief for
data cable(s)
Earthing pole
for pole mount
UTP data cable
inlet with rubber
seal
