1) E InlEItung Die Fantec AluDOCK2X USB 3.0 Dockingstation ist ein multifunktionales Speichergerät zum Erstellen von Kopien von Festplatten, sowie ein USB 3.0 Speichermedium mit hoher Kapazität. Das funktionale Dockingdesign ermöglicht schnellen Zugriff und das leichte Auswechseln Ihrer Festplatten. Mit seiner integrierten One-Touch-Klon- Funktion können Sie Sektor für Sektor Kopien ohne Anschluss an einen...

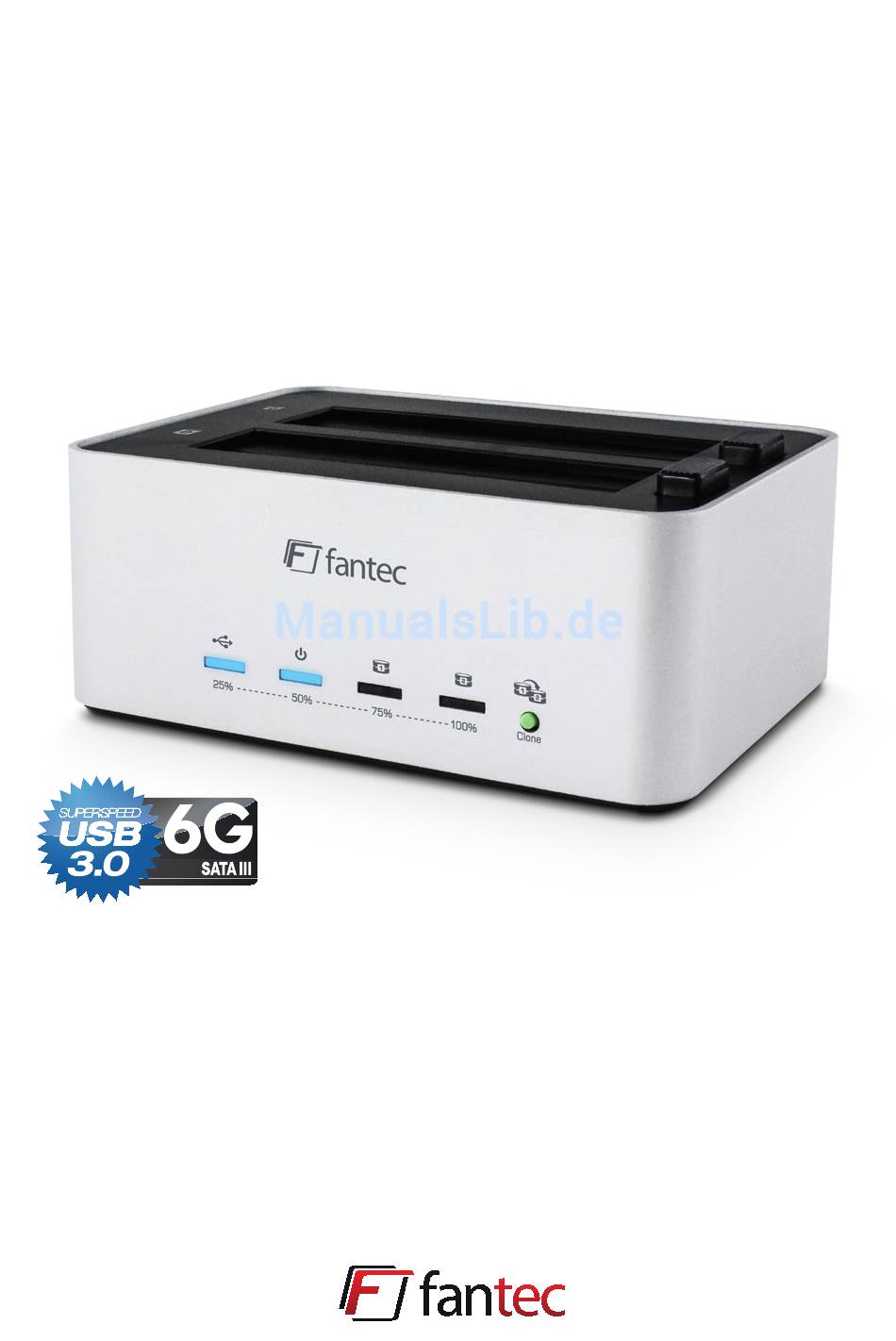

• Netzteil • Bedienungsanleitung 4) E IgEnSchaftEn • Computerunabhängige Klon und USB 3.0 Dockingstation • One-Touch Klon Funktion für 1:1 Kopien • LEDs für Verbindungsstatus und Klonfortschritt • Funktionales Dockingdesign für schnellen und einfachen Festplatten Austausch • Für USB 3.0 Geschwindigkeit muss Ihr System USB 3.0 Spezifikationen unterstützen 5) h ockIngStatIon Frontansicht USB Verbindung Ein/Aus Steckplatz 1 (Quelle) Steckplatz 2 (Ziel) Klon-Taste FANTEC AluDOCK2X Docking Station...
Seite 5
Rückansicht USB 3.0 Port (zum Klonen nicht anschließen!) Stromversorgung Hauptschalter Draufsicht Steckplatz 1 Schnittstelle Steckplatz 1 Auswurftaste Steckplatz 2 Schnittstelle Steckplatz 2 Auswurftaste FANTEC AluDOCK2X Docking Station...
Anschluss des Steckplatzes aus und drücken Sie das Laufwerk vorsichtig in den SATA-Anschluss. 3. Zum Herausnehmen verwenden Sie die Auswurftaste für das entsprechende Laufwerk. Drücken Sie langsam auf die Auswurftaste und halten Sie das Laufwerk während des Trennens mit der Hand fest. FANTEC AluDOCK2X Docking Station...
7. Jede LED stellt 25% Fortschritt dar. Erst wenn die gesamten 25% von HDD1 auf HDD2 kopiert sind, leuchtet die LED dauerhaft, während die andere(n) LED(s) vor- und zurück laufen. Nach der Beendigung des Klonvorgangs blinken alle LEDs gleichmäßig, bis das Gerät ausgeschaltet wird. FANTEC AluDOCK2X Docking Station...
Seite 8
2. Die Kapazität des Ziellaufwerks muss gleich oder größer als das Quellenlaufwerk sein. Ist die Kapazität größer, so kann die nach dem Klonen verbleibende Kapazität zu einer neuen Partition angelegt werden. Folgen Sie den Formatierungshinweisen in dieser Anleitung. FANTEC AluDOCK2X Docking Station...
Wenn Sie unformatierte Festplatten verwenden, müssen diese zunächst initialisiert werden. Dazu führen Sie bitte “Start” und “Ausführen” an Ihrem Windows PC aus und tippen Sie “diskmgmt.msc” ein. Danach drücken Sie die “ENTER” Taste. 1. Initialisieren Sie die neue Festplatte. FANTEC AluDOCK2X Docking Station...
Seite 11
2. Legen Sie eine Partition an und führen Sie die Formatierung durch. 3. Festplatte ist fertig formatiert. MBR oder GPT Modus WICHTIG: Bitte benutzen Sie GPT (Vista/7/8/8.1/10), wenn die Festplatte eine Kapazität über 2TB hat. Benutzen Sie MBR, wenn die Festplattenkapazität max. 2TB beträgt. FANTEC AluDOCK2X Docking Station...
Seite 12
Ausgewählter MBR Modus für Festplatten unter 2TB MBR (Master Boot Record) Ausgewählter GPT Modus für Festplatten über 2TB GPT (GUID Partition Table) MAC OS X ab 10.6 1. Klicken Sie auf Programme > Dienstprogramme > Festplatten-Diestprogramm. FANTEC AluDOCK2X Docking Station...
Seite 13
2. Festplatte initialisieren. 3. Klicken Sie auf den Tab Löschen > wählen Sie ein Dateiformat aus und klicken Sie auf Löschen. 4. Klicken Sie auf Löschen. FANTEC AluDOCK2X Docking Station...
Seite 14
5. Festplatte wird formatiert. 6. Festplatte fertig formatiert. FANTEC AluDOCK2X Docking Station...
Produkte werden mit größter Sorgfalt entwickelt und produziert, um ein Höchstmaß an Qualität bieten zu können. 1. Bitte lesen Sie das Handbuch und besuchen Sie das FANTEC Technic & Support Forum unter www.fantec-forum.de Dort finden Sie Antworten auf viele Fragen, Hilfestellungen und Lösungsansätze.
Seite 16
INTRODUCTION..............17 SPECIFICATIONS............17 PACKAGE CONTENTS...............18 FEATURES..............18 HDD DOCKINGSTATION............18 HARD DRIVE INSTALLATION AND REMOVAL......20 USING THE DEVICE FOR CLONING..........21 USING THE DEVICE AS A DOCKING STATION......23 HDD INITIALIZING AND FORMATTING........24 CONTACT & TECHNICAL SUPPORT...........29 FANTEC AluDOCK2X Docking Station...
When connected to a computer, the device turns into a USB 3.0 storage device and can handle up to 2 independent storage drives at the same time. Whether your need is data access or cloning, the AluDOCK2X from FANTEC provides the perfect solution.
• Power Adapter • User Manual 4) f EaturES • Standalone storage Clone & USB 3.0 Docking station • OneTouch Sector-by-Sector cloning • LED lights for connection status and cloning progress • Functional Docking design for quick and easy exchange and access • For USB 3.0 speed, the system must support USB 3.0 specifications 5) h ockIngStatIon Front View USB Connection Power Slot 1 (Source) Slot 2 (Destination) Clone Button FANTEC AluDOCK2X Docking Station...
Seite 19
Rear View USB 3.0 interface (do not connect if cloning) Power adapter interface Power switch Top View Slot 1 interface Slot 1 eject button Slot 2 interface Slot 2 ejection button FANTEC AluDOCK2X Docking Station...
SATA interface. 3. To remove the drive, use the eject button corresponding to the drive you want to remove. Press the eject button slowly while holding the drive as it disconnect from the SATA interface. FANTEC AluDOCK2X Docking Station...
HDD1 is duplicated to HDD2 that such LED will remain constantly on, leaving the other LED(s) scrolling back and forth. When cloning operation is fully completed, all LEDs will flash regularly until the device is power off. FANTEC AluDOCK2X Docking Station...
Seite 22
3. If the Source drive was initialized using MBR/GPT/APM partition scheme, the copied drive will be the same partition scheme, too. Even if the Source drive is completely empty, the Destination drive will become empty as well. FANTEC AluDOCK2X Docking Station...
SLOT 1 SLOT2 100% STANDBY Solid Drive 1 Flashing blue Blue Blue installed at access Drive 2 Flashing blue Blue Blue installed at access Drive 1/2 Flashing blue Flashing blue Blue Blue installed at access at access FANTEC AluDOCK2X Docking Station...
If the HDD is uninitialized, you may have to initialize it by doing steps as followed: At first click “Start” at your PC and key in “diskmgmt.msc”. After that please press “OK” key. 1. Start disk initialization. FANTEC AluDOCK2X Docking Station...
Seite 25
2. Create new partition and format disk. 3. HDD format completed. Start disk initialization. NOTE: Please enable GPT (Vista/7/8/8.1/10) if the total capacity is more than 2TB and enable MBR if the total capacity is less than 2TB. FANTEC AluDOCK2X Docking Station...
Seite 26
Activate MBR if total volume is less than 2TB MBR (Master Boot Record) Activate GPT if total volume is more than 2TB GPT (GUID Partition Table) MAC OS X 10.6 or later 1. Click on Programs > Utility > Disk Utility icon. FANTEC AluDOCK2X Docking Station...
There you can find frequently asked questions, support and assistance. 2. If the problem persists, please contact our services department via E-Mail: service@fantec.de Address for warranty return shipments: FANTEC GmbH Abteilung RMA/Service Billwerder Billdeich 605B 21033 Hamburg Germany Declaration of conformity: http://www.fantec.de/unternehmen/bestimmungenrichtlinien/ce/ www.fantec.de • www.fantec-forum.de FANTEC AluDOCK2X Docking Station...
