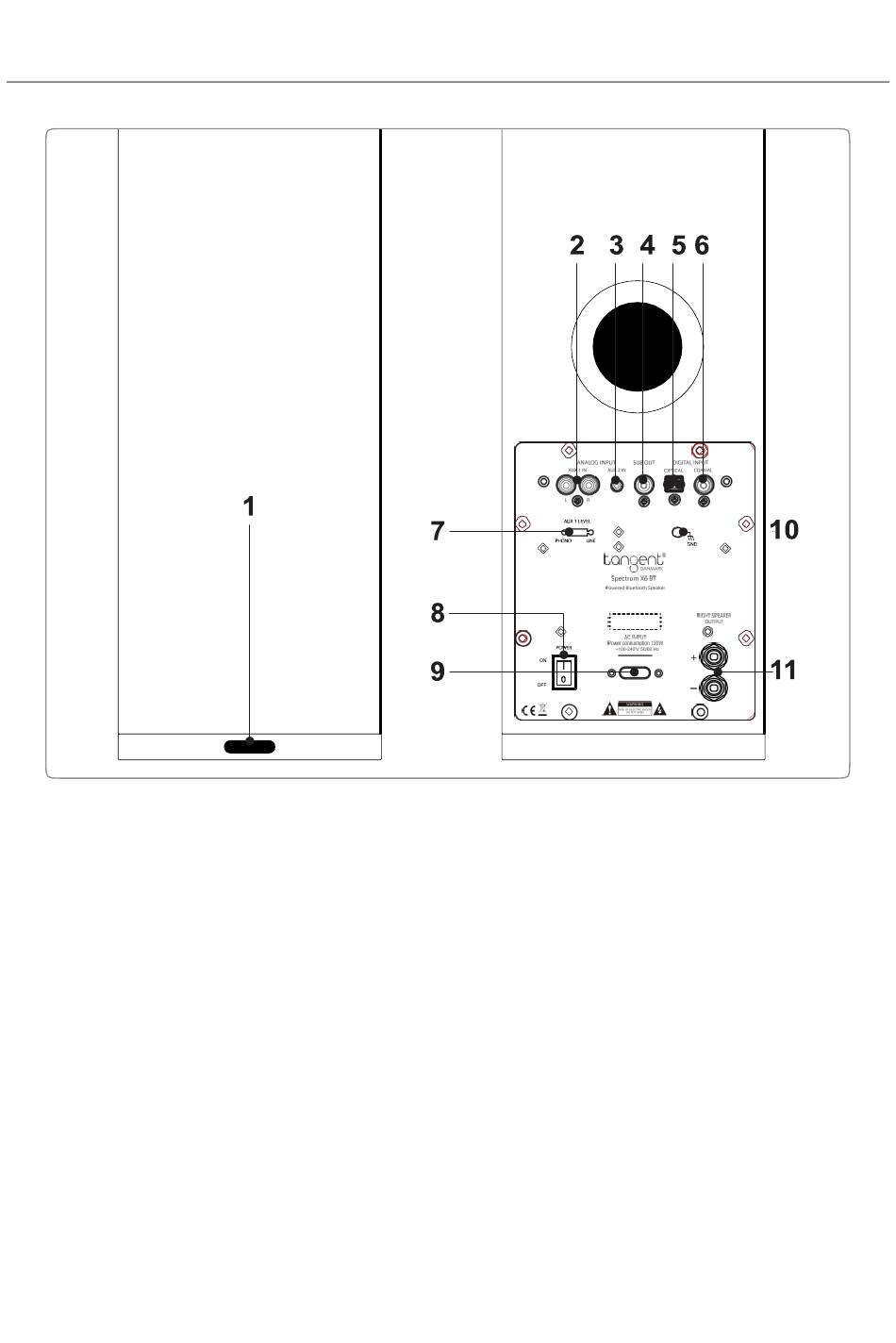

FRONT AND REAR PANEL

1. Power LED and BT detector
2. AUX. 1 input
For left / right RCA stereo plugs of
CD / DVD, TV etc.
3. AUX. 2 input
To connect 3,5 mm mini jack plug
4. SUB OUT to connect an active
subwoofer
5. Optical audio input
6. Coaxial audio input
7. Phono or line input selection
8. Switch for input voltage power
ON / OFF
9. Main plug power input
10. Input groundwire
11.Right channel amplifier output to
connect to the passive speaker.
