User Manual

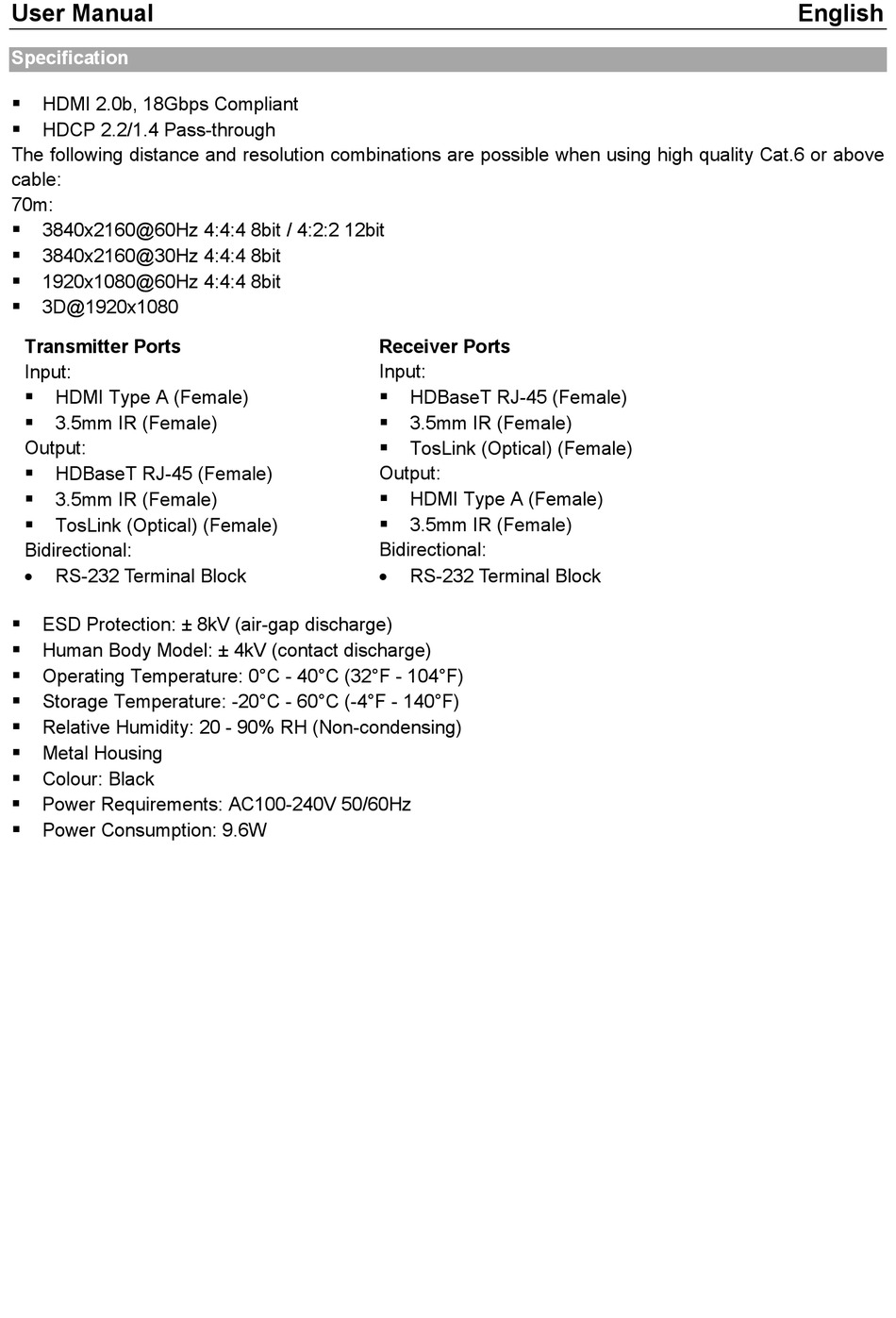

Specification
HDMI 2.0b, 18Gbps Compliant

HDCP 2.2/1.4 Pass-through

The following distance and resolution combinations are possible when using high quality Cat.6 or above
cable:
70m:
3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit

3840x2160@30Hz 4:4:4 8bit

1920x1080@60Hz 4:4:4 8bit

3D@1920x1080

Transmitter Ports
Input:
HDMI Type A (Female)

3.5mm IR (Female)

Output:
HDBaseT RJ-45 (Female)

3.5mm IR (Female)

TosLink (Optical) (Female)

Bidirectional:
RS-232 Terminal Block
•
ESD Protection: ± 8kV (air-gap discharge)

Human Body Model: ± 4kV (contact discharge)

Operating Temperature: 0°C - 40°C (32°F - 104°F)

Storage Temperature: -20°C - 60°C (-4°F - 140°F)

Relative Humidity: 20 - 90% RH (Non-condensing)

Metal Housing

Colour: Black

Power Requirements: AC100-240V 50/60Hz

Power Consumption: 9.6W

Receiver Ports
Input:
HDBaseT RJ-45 (Female)

3.5mm IR (Female)

TosLink (Optical) (Female)

Output:
HDMI Type A (Female)

3.5mm IR (Female)

Bidirectional:
RS-232 Terminal Block
•
English
