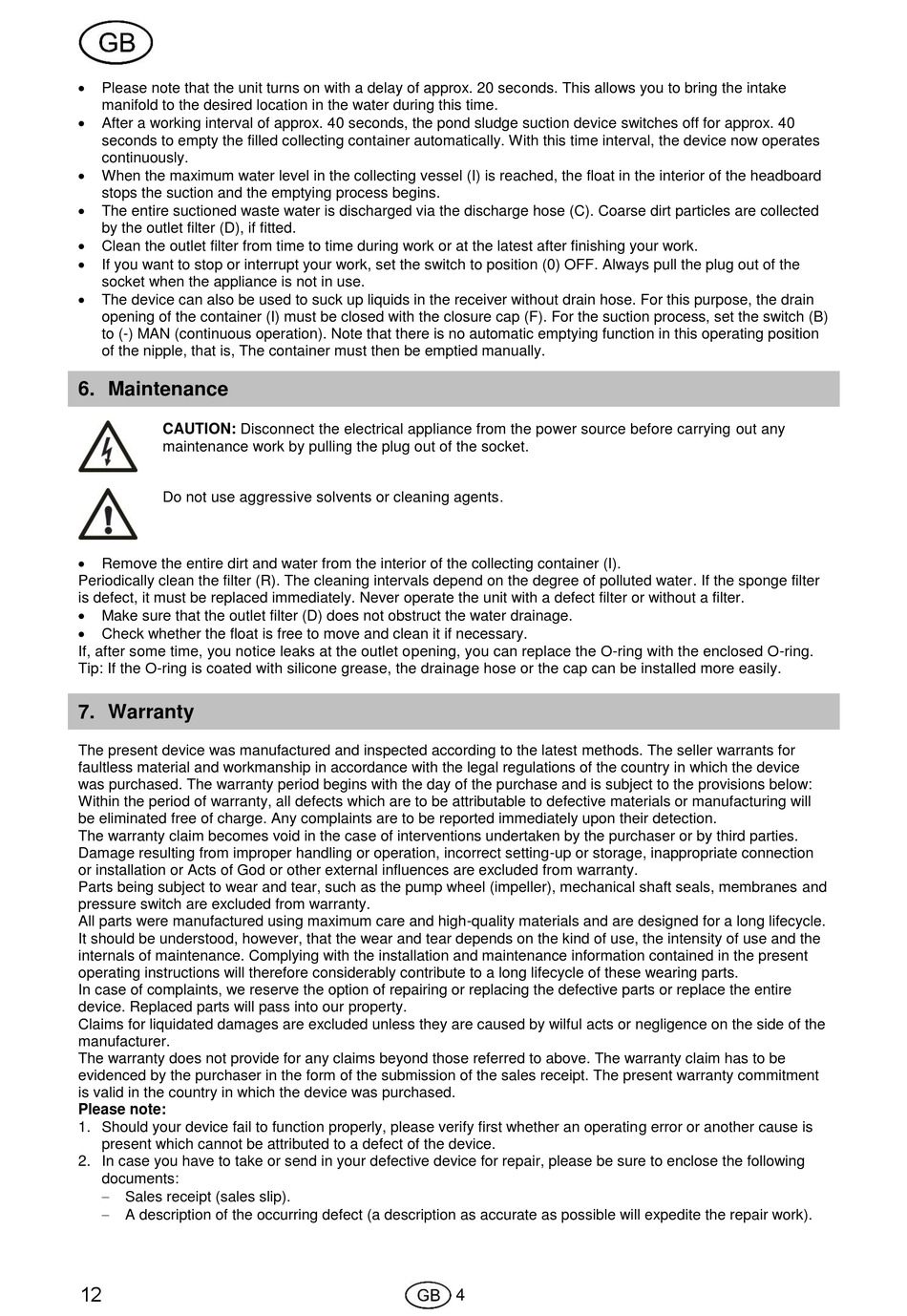

Please note that the unit turns on with a delay of approx. 20 seconds. This allows you to bring the intake
manifold to the desired location in the water during this time.
After a working interval of approx. 40 seconds, the pond sludge suction device switches off for approx. 40
seconds to empty the filled collecting container automatically. With this time interval, the device now operates
continuously.
When the maximum water level in the collecting vessel (I) is reached, the float in the interior of the headboard
stops the suction and the emptying process begins.
The entire suctioned waste water is discharged via the discharge hose (C). Coarse dirt particles are collected
by the outlet filter (D), if fitted.
Clean the outlet filter from time to time during work or at the latest after finishing your work.
If you want to stop or interrupt your work, set the switch to position (0) OFF. Always pull the plug out of the
socket when the appliance is not in use.
The device can also be used to suck up liquids in the receiver without drain hose. For this purpose, the drain
opening of the container (I) must be closed with the closure cap (F). For the suction process, set the switch (B)
to (-) MAN (continuous operation). Note that there is no automatic emptying function in this operating position
of the nipple, that is, The container must then be emptied manually.
6. Maintenance
CAUTION: Disconnect the electrical appliance from the power source before carrying out any
maintenance work by pulling the plug out of the socket.
Do not use aggressive solvents or cleaning agents.
Remove the entire dirt and water from the interior of the collecting container (I).
Periodically clean the filter (R). The cleaning intervals depend on the degree of polluted water. If the sponge filter
is defect, it must be replaced immediately. Never operate the unit with a defect filter or without a filter.
Make sure that the outlet filter (D) does not obstruct the water drainage.
Check whether the float is free to move and clean it if necessary.
If, after some time, you notice leaks at the outlet opening, you can replace the O-ring with the enclosed O-ring.
Tip: If the O-ring is coated with silicone grease, the drainage hose or the cap can be installed more easily.
7. Warranty
The present device was manufactured and inspected according to the latest methods. The seller warrants for
faultless material and workmanship in accordance with the legal regulations of the country in which the device
was purchased. The warranty period begins with the day of the purchase and is subject to the provisions below:
Within the period of warranty, all defects which are to be attributable to defective materials or manufacturing will
be eliminated free of charge. Any complaints are to be reported immediately upon their detection.
The warranty claim becomes void in the case of interventions undertaken by the purchaser or by third parties.
Damage resulting from improper handling or operation, incorrect setting-up or storage, inappropriate connection
or installation or Acts of God or other external influences are excluded from warranty.
Parts being subject to wear and tear, such as the pump wheel (impeller), mechanical shaft seals, membranes and
pressure switch are excluded from warranty.
All parts were manufactured using maximum care and high-quality materials and are designed for a long lifecycle.
It should be understood, however, that the wear and tear depends on the kind of use, the intensity of use and the
internals of maintenance. Complying with the installation and maintenance information contained in the present
operating instructions will therefore considerably contribute to a long lifecycle of these wearing parts.
In case of complaints, we reserve the option of repairing or replacing the defective parts or replace the entire
device. Replaced parts will pass into our property.
Claims for liquidated damages are excluded unless they are caused by wilful acts or negligence on the side of the
manufacturer.
The warranty does not provide for any claims beyond those referred to above. The warranty claim has to be
evidenced by the purchaser in the form of the submission of the sales receipt. The present warranty commitment
is valid in the country in which the device was purchased.
Please note:
1. Should your device fail to function properly, please verify first whether an operating error or another cause is
present which cannot be attributed to a defect of the device.
2. In case you have to take or send in your defective device for repair, please be sure to enclose the following
documents:
Sales receipt (sales slip).
A description of the occurring defect (a description as accurate as possible will expedite the repair work).
