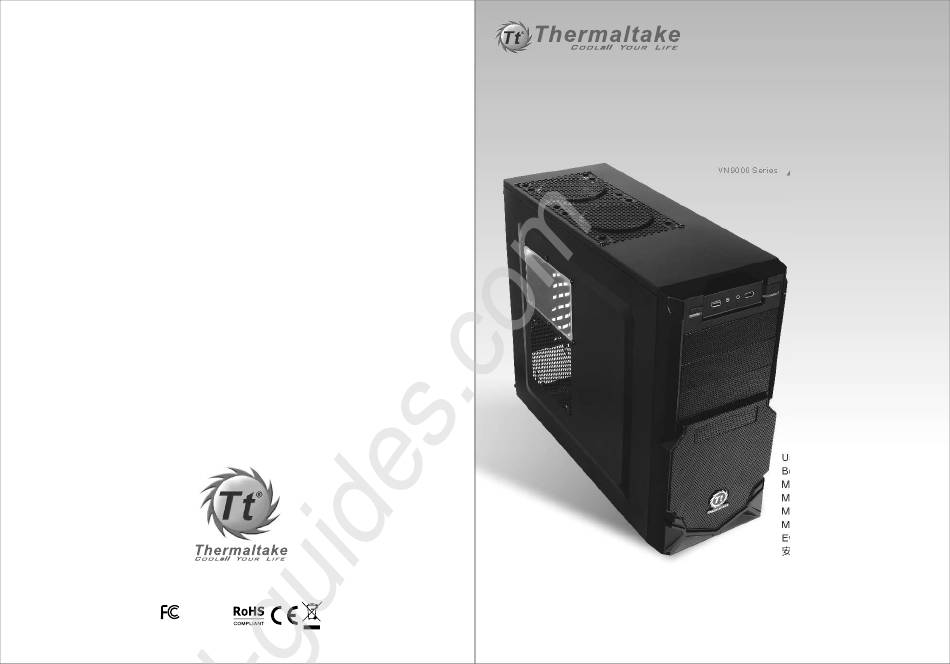

Commander
MS-II
VN9000 Series
User's Manual
Benutzerhandbuch
Mode d'emploi
Manual del usuario
Manuale dell'utente
Manual do Utilizador
Εγχειρίδιο Χρήσης
安裝說明書
用戶手冊
ユーザーズマニュアル
Руководство пользователя
kullanıcı elkitabı
(EEE Yönetmeliğine Uygundur)
คู ่ ม ื อ การใช้
Werbung
Inhaltsverzeichnis
Verwandte Anleitungen für Thermaltake VN9000 Serie
Inhaltszusammenfassung für Thermaltake VN9000 Serie
- Seite 1 Manuale dell’utente Manual do Utilizador Εγχειρίδιο Χρήσης 安裝說明書 用戶手冊 ユーザーズマニュアル © 2011 Thermaltake Technology Co., Ltd. All Rights Reserved. 2011.11 www.thermaltake.com All other registered trademarks belong to their respective companies. Руководство пользователя kullanıcı elkitabı Tested To Comply With FCC Standards (EEE Yönetmeliğine Uygundur)
-
Seite 2: Inhaltsverzeichnis
All manuals and user guides at all-guides.com Specification Contents Model VN900A1W2N Case Type Mid Tower Side Panel Transparent Window Net Weight Chapter 1. Product Introduction 4.5 kg / 9.9 lb Dimension 423x 195 x 481 mm Specification (H*W*D) ( 16.7 x 7.7 x 18.9 inch) Front (intake) : Optional Accessory 120 x 120 x 25 mm fan x 1... -
Seite 3: Warning And Notice
All manuals and user guides at all-guides.com Atenção!! Warning and Notice - Limite de altura para o dissipador do CPU: O limite de altura para o dissipador do CPU é 155 mm (6,1 polegadas). - Limite de comprimento para VGA (placa gráfica): O limite de comprimento para VGA (placa gráfica) é... -
Seite 4: Side Panel Disassembly
All manuals and user guides at all-guides.com PSU Installation Side Panel Disassembly 繁體中文 / English / English / 繁體中文 Place the power supply in proper location and Remove the screws on the back of the chassis, 將電源供應器放在正確的位置，並用螺絲固定 。 移除機殼後方螺絲，將側窗打開 secure it with screws. and open the side panel. -
Seite 5: Motherboard Installation
All manuals and user guides at all-guides.com 5.25" Device Installation Motherboard Installation English / 1.Lay down the chassis. 繁體中文 / 2.Install the motherboard in proper location and English / Español / 1. 將機殼平放。 secure it with screws. 1. Pull out the front panel. 1. -
Seite 6: External 3.5" Device Installation
All manuals and user guides at all-guides.com External 3.5” Device Installation Português/ 日本語 / 1. Puxe o painel dianteiro para fora. 1. 前面パネルを引き出します。 2. Remova a cobertura da baía da unidade de 5,25”. 2. 5.25”ドライブベイのカバーを取り外します。 3. Remova a tampa de metal da baía da unidade de 5,25”. 3. -
Seite 7: Hdd Installation
All manuals and user guides at all-guides.com HDD Installation Italiano / 日本語 / 1. Ruotare il dispositivo di blocco in senso orario 1. ロックデバイスを時計方向に回してロック解除 per sbloccarlo e rimuoverlo. し、ロックデバイスを取り外します。 2. Posizionare l HDD nel vano unità 2. HDD をドライブベイに取り付けます。 3. Individuare le aperture appropriate. 3. -
Seite 8: Pci Slot Usage
All manuals and user guides at all-guides.com 2.5" HDD Installation PCI Slot Usage Ελληνικά/ 1. Αφαιρέστε τη βίδα από το στήριγμα της θυρίδας PCI και αφαιρέστε το στήριγμα της θυρίδας PCI. English / 2. Εισάγετε τη συσκευή PCI στη θυρίδα PCI. 1.Remove screw from PCI slot bracket and take off the PCI 3. -
Seite 9: Case Led Connection
All manuals and user guides at all-guides.com Leads Installation English Français Guide d'installation des fils Leads Installation Guide Connexion des voyants du boîtier / Sur la face avant du boîtier, vous trouverez plusieurs voyants et les fils des Case LED Connection / On the front of the case, you can find some LEDs and switch leads. Please consult your user boutons. - Seite 10 All manuals and user guides at all-guides.com Italiano Ελληνικά Guida di installazione dei contatti Οδηγός Τοποθέτησης Αγωγών Connessione del LED del case / Nella parte anteriore del case, sono presenti alcuni contatti per interruttori e LED. Σύνδεση LED Θήκης / Στην πρόσοψη της θήκης, μπορείτε να βρείτε ορισμένες λυχνίες LED και αγωγούς διακοπτών. Συμβουλευτείτε...
- Seite 11 All manuals and user guides at all-guides.com Русский 简体中文 Указания по прокладке кабелей Указания по прокладке кабелей 线材安装说明 线材安装说明 Подключение индикаторов корпуса Подключение индикаторов корпуса / В передней части корпуса расположены индикаторы и провода выключателей. 机壳LED连接方式 机壳LED连接方式 / 在机壳前方的面板后面，可以找到一些LED与开关线材（POWER Switch….），请参考主板使用说明 / 在机壳前方的面板后面，可以找到一些LED与开关线材（POWER Switch….），请参考主板使用说明...
-
Seite 12: Toughpower / Tr2 / Litepower
3. Modularized Cable Management: To eliminate clutter and improve airflow inside the case. The functions can assure all Thermaltake Power Supply meets the balance in noise control and heat exhausted. All power supply provides complete protection function as follow: 1.
