EN
Introduction
The contact contains a transmitter and a magnet, which can be
mounted on a door, window, or any object that can be opened or
closed. When the transmitter and magnet are separated, the contact
will send a signal to the control panel and the latter will trigger
an alarm. The tamper switch ensures that sabotage attempting to
disassemble the contact will trigger an alarm.

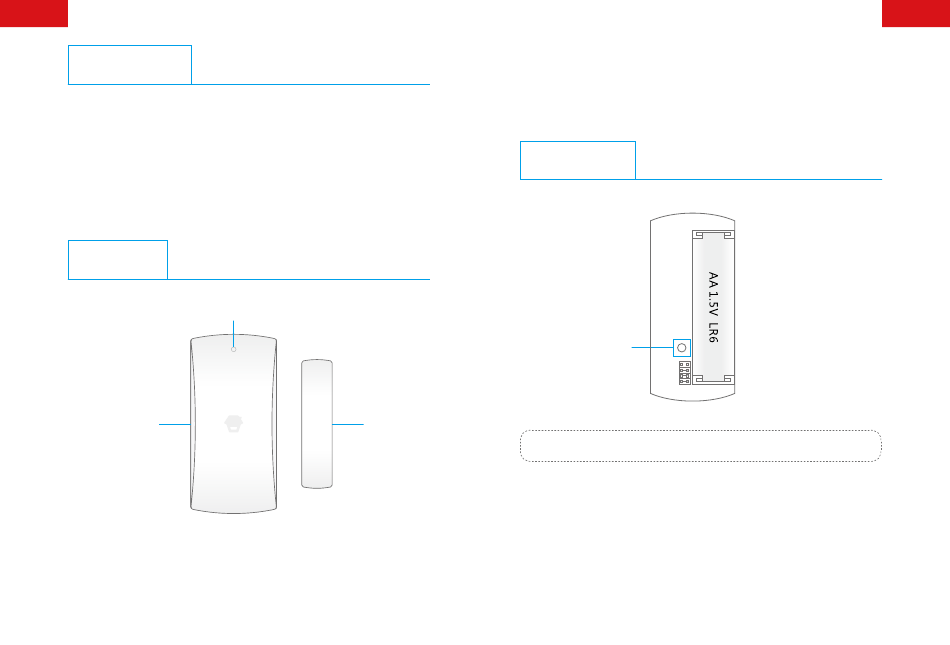

Overview
LED Indicator
Transmitter
LED Indication
Flash once:
Flash once per 3 seconds after triggered:
the battery as soon as possible.

PCB Layout

Magnet
Note:
Intruder is detected.
Tamper Switch
When tamper switch is pressed, system will alarm immediately.
EN
Low battery. Replace
