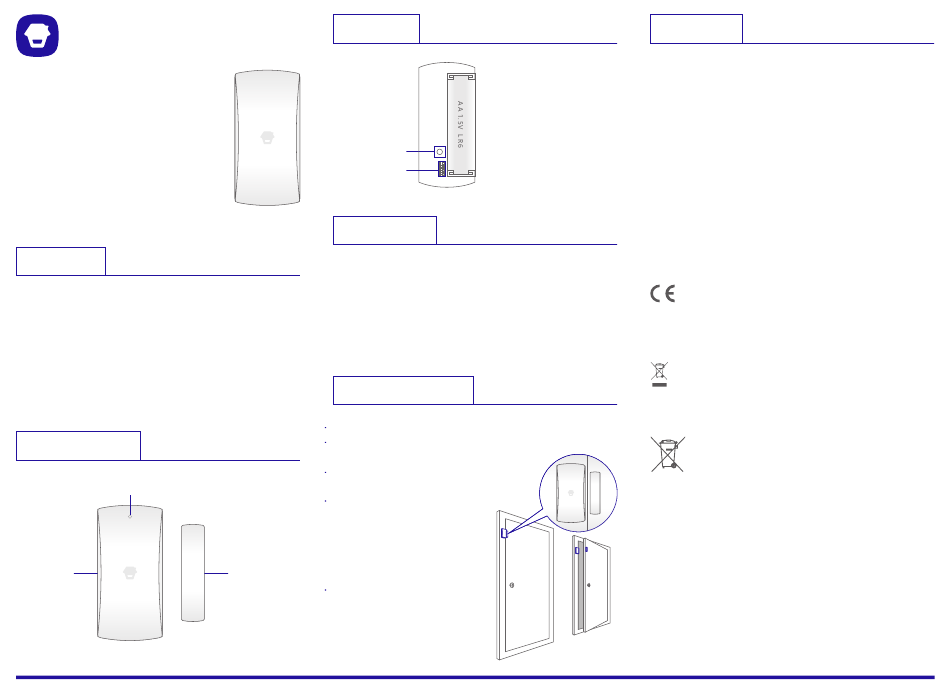

Chuango DWC-102 Bedienungsanleitung

Wireless Door/Window
Contact
DWC-102
User Manual
Introduction
The DWC-102 is a Door/Window Contact that can be installed
on doors, windows, and any other objects that can be opened
and closed. The sensor transmits signals to the control panel
when a magnet mounted near the sensor is moved away. It will
also transmit alert signal to the control panel in case of low
battery. The tamper protection ensures that sabotage
attempts to move the contact will result in an alarm activation.
Product Overview
LED indicator
Transmitter
PCB Layout
Tamper switch
Zone setup
LED Indication
LED flashes once:
sends signal to the control panel.
Flash once per 3 seconds:
battery as soon as possible. (If the door contact is connected to
the alarm system, the user will receive an alert that the battery
is low.)
Installation & Notice
Open the case and remove the battery activation strip.
Mount the sensor on the door frame and the magnet on the
door.
Make sure the magnet is on the right side
of the transmitter
Place the transmitter in the desired
location, mount the magnet no
more than 1cm away from the
transmitter and secure the
transmitter and magnet with
Magnet
double-sided tapes or screws.
Avoid mounting sensors in
areas with a large quantity
of metal or electrical wiring,
such as a furnace or utility
room.
NOTE: When tamper switch
is triggered, it will send out
alarm signal immediately.
Door/window is opened and transmitter
Low power indication, please change
Specifications
Power Supply: DC 1.5V (AA 1.5V LR6 Battery x 1 pc)
Static Current: ＜ 56uA
Alarm Current: ＜ 82mA
Transmitting Distance: ＜ 80m (in open area)
Radio Frequency: 315MHz/433.92MHz (±75KHz)
*Only 433.92MHz is available for Europe&Australia
Housing Material: ABS plastic
ERP(dBm) Max.: -12.06
Operating Temperature: 0°C to 50°C
Relative Humidity: ＜ 80% (non-condensing)
Transmitter Dimensions (LxWxH): 71 x 34 x 17.5mm
Magnet Dimensions (LxWxH): 51 x 12 x 13.5mm
CE Declaration of Conformity
Hereby, Chuango AIoT GmbH declares that the radio equipment type DWC-102 Door/Window
Contact is in compliance with Directive 2014/53/EU. The full text of the EU declaration of
conformity is available at the following internet address:
https://www.chuango.com/english/compliance_DWC-102
INFORMATION FOR THE USERS
At the end of its life, the device has to be separated from the other waste. Consign the device
and all its components together to a center of electronical and electrotechnical waste
recycling center, designated by your local authorities.
2006/66/EC and its amendment 2013/56/EU (battery directive): This product contains a
battery that cannot be disposed of as unsorted municipal waste in the European Union. See the
product documentation for specific battery information.
The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd),
lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a
designated collection point. For more information see: www.recyclethis.info.
Safety Information
INDOOR USE ONLY! Do not expose or immerse your device/battery to liquids.
Do not heat or place the device/battery near any heat source. Do not expose the
device/battery to explosions or other hazards.
Do not short-circuit the battery.
Do not use sharp objects to remove the battery.
Replace only with the same or equivalent type recommended battery.
