RK5038ek INSTRUCTIONS
RK5038ek Product Inventory
Grounding Strap (6)
10-32 Nut with Tooth Lock Washer (24)
#10 Zinc Plated Washer (24)
Instructions

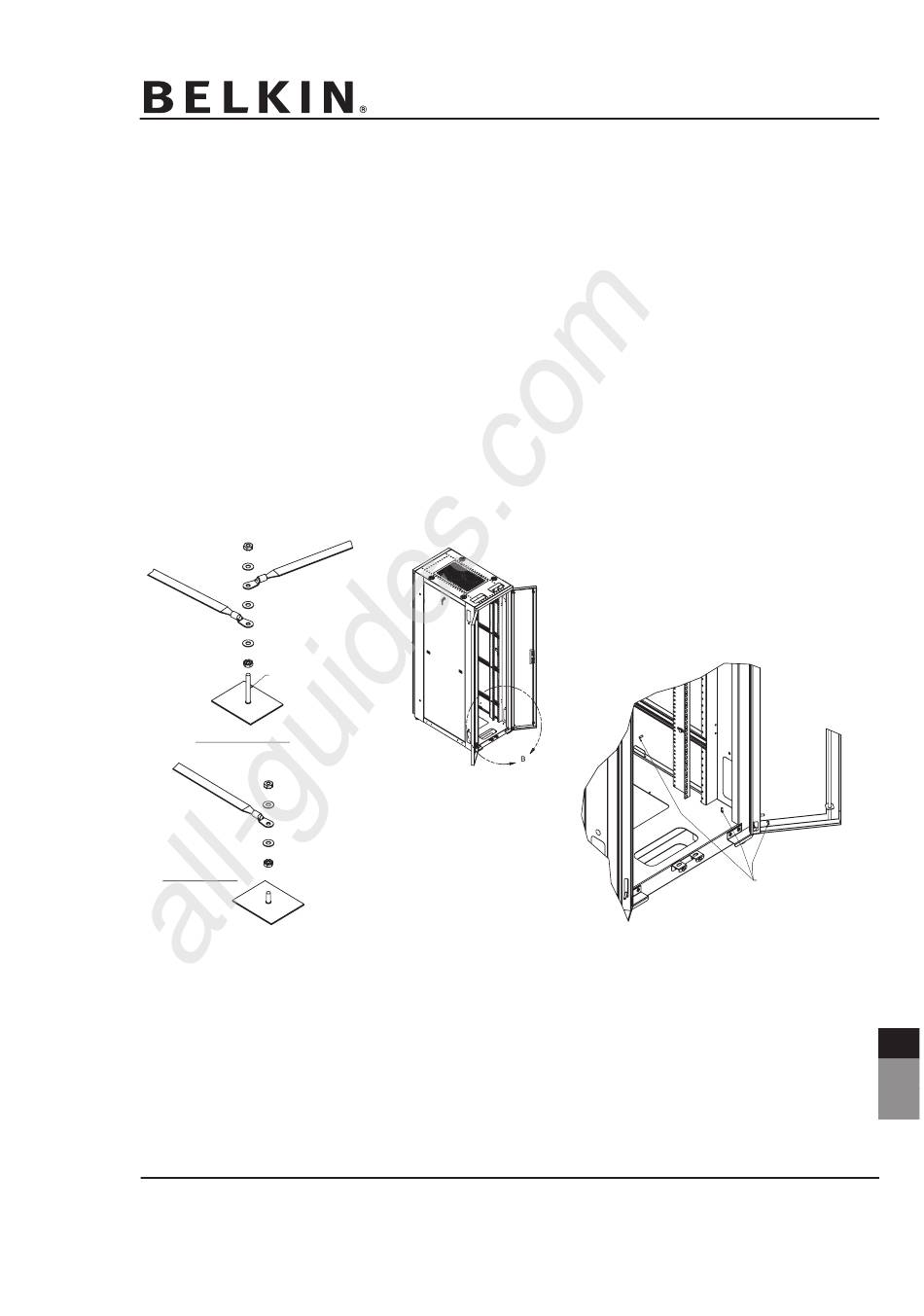

1. Using the tinned copper braided straps supplied, connect one end of the strap to copper ground stud
on the side panels and doors and the other end to copper ground stud on the frame of the Enclosure.
2. Side panels and rear doors can be grounded together with the studs located at the bottom rear of the
frame. Reversible front door can be grounded using the stud located inside top front of the frame
3. Once all straps have been connected to a copper frame stud, have at least one frame stud connected
to the common building ground.
Ground stud: #10-32 x 1-7/8"
(22mm) LG
MULTIPLE STRAPS
SINGLE STRAP
Belkin Tech Support
Europe: 00 800 223 55 460
For other languages: www.belkin.com/support
RK5038ek Instructions
DETAIL B
REFERENCE GROUND STUD LOCATIONS
NOT ALL SHOWN.
P35764ec
