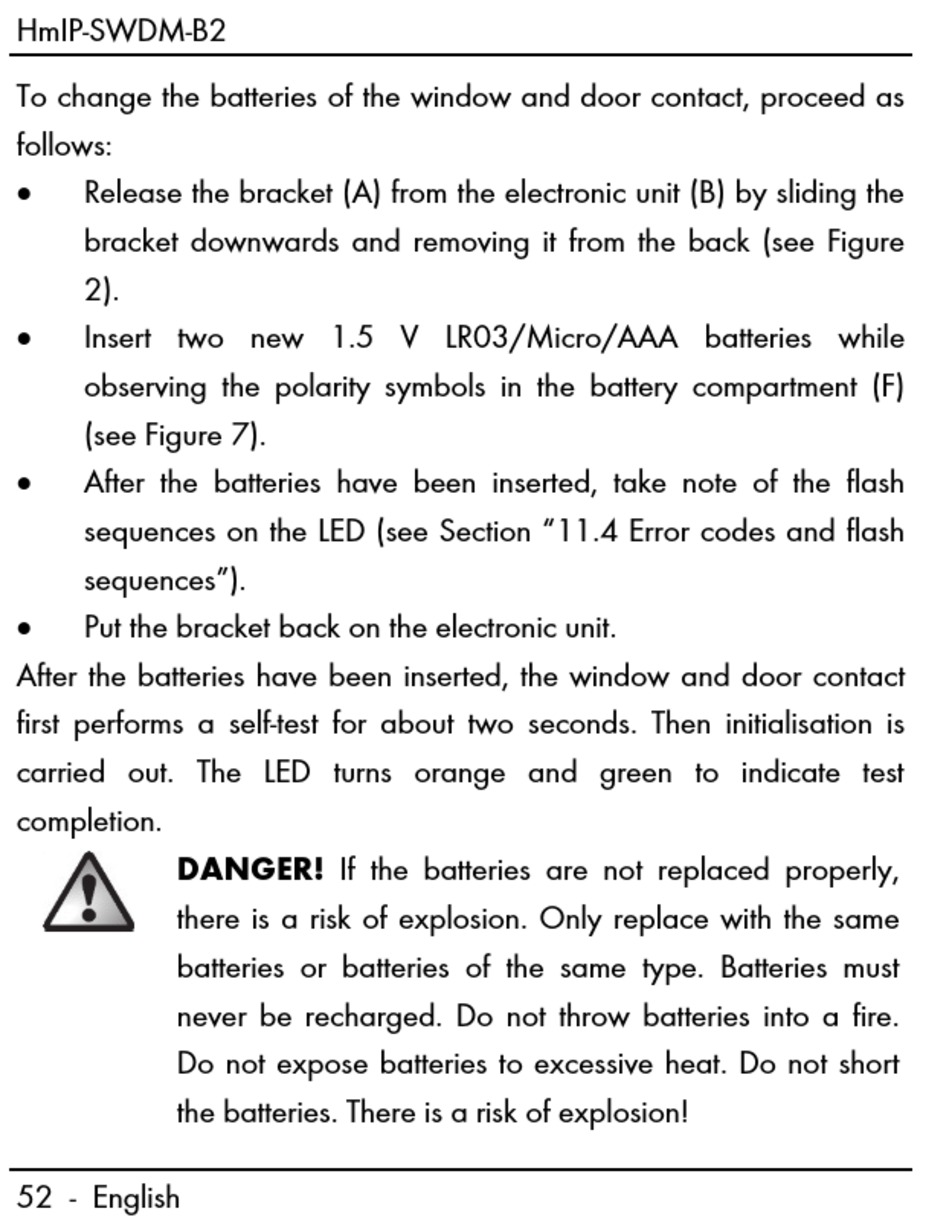

HmIP-SWDM-B2
To change the batteries of the window and door contact, proceed as
follows:
Release the bracket (A) from the electronic unit (B) by sliding the
bracket downwards and removing it from the back (see Figure
2).
Insert two new 1.5 V LR03/Micro/AAA batteries while
observing the polarity symbols in the battery compartment (F)
(see Figure 7).
After the batteries have been inserted, take note of the flash
sequences on the LED (see Section "11.4 Error codes and flash
sequences").
Put the bracket back on the electronic unit.
After the batteries have been inserted, the window and door contact
first performs a self-test for about two seconds. Then initialisation is
carried out. The LED turns orange and green to indicate test
completion.
DANGER! If the batteries are not replaced properly,
there is a risk of explosion. Only replace with the same
batteries or batteries of the same type. Batteries must
never be recharged. Do not throw batteries into a fire.
Do not expose batteries to excessive heat. Do not short
the batteries. There is a risk of explosion!
52 - English
