Diagnostic functions

On the display on both receiver and transmitter, 8 LEDs help the user to control and check the state of the AOPD, in
Alignment mode, Normal operation mode and Error mode.
Transmitter
AOPD mode
Short range emission
Long range emission
No code
Code 1
Normal operation
Code 2
Test
Emission
Microprocessor error
Optical error
BCM configuration error
Error
Communication error
Critical error
It is not possible to acknowledge a critical error. The device must be switched off and on. If the error persists, contact
your ABB Jokab Safety representative.
2TLC172296M0201 Rev A
2015-03-20
Status
CODE

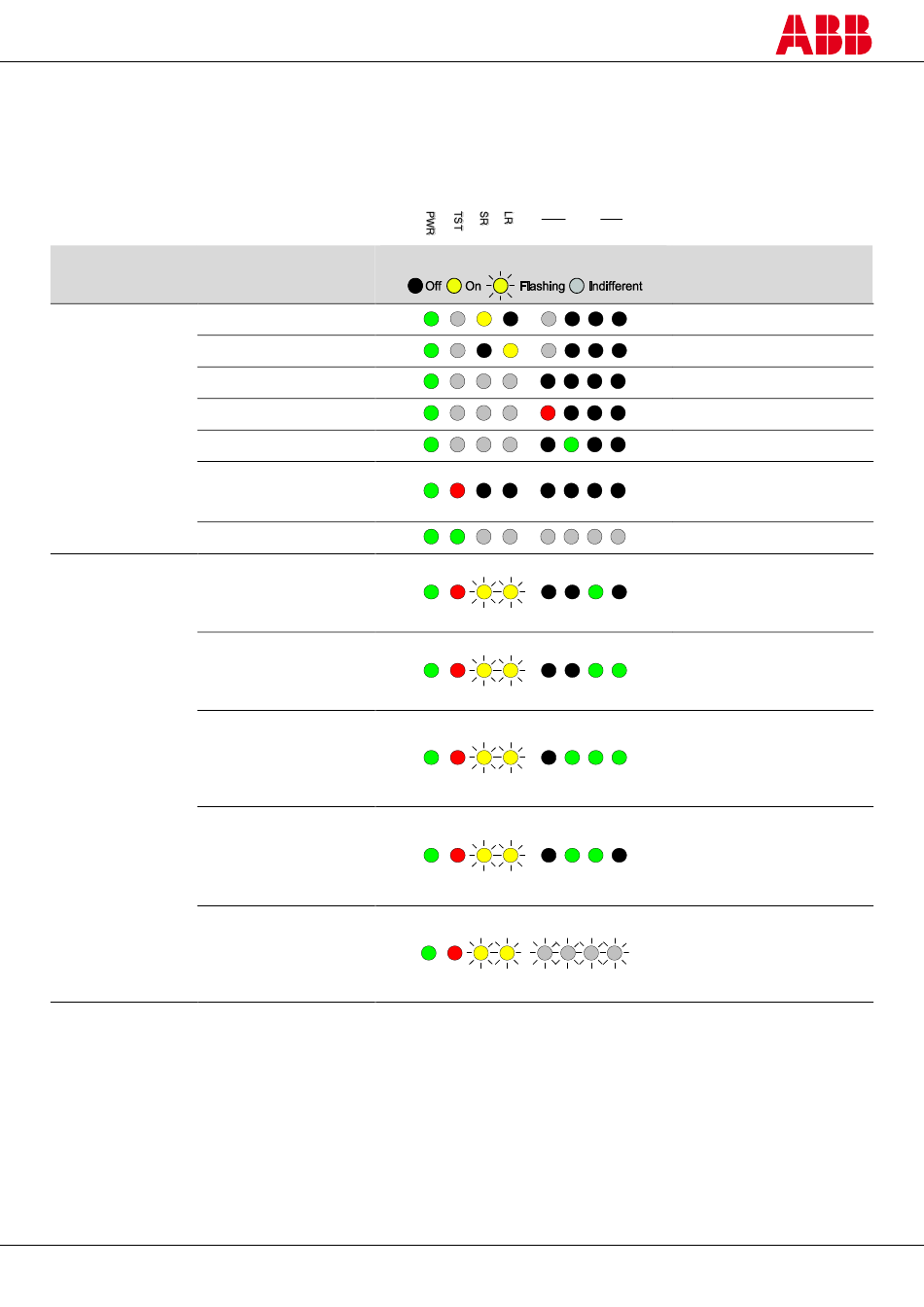

LED configuration
11
Action
If undesired test, check the
wiring and connections of
the test input.
Acknowledge. If the error
persists, contact your
ABB Jokab Safety
representative.
Acknowledge. If the error
persists, contact your
ABB Jokab Safety
representative.
Perform a new BCM
configuration. If the error
persists, contact your
ABB Jokab Safety
representative.
Check the cascade
connection and the
presence of the terminator
caps.
Acknowledge.
Switch the AOPD off and
on. If the error persists,
contact your
ABB Jokab Safety
representative.
