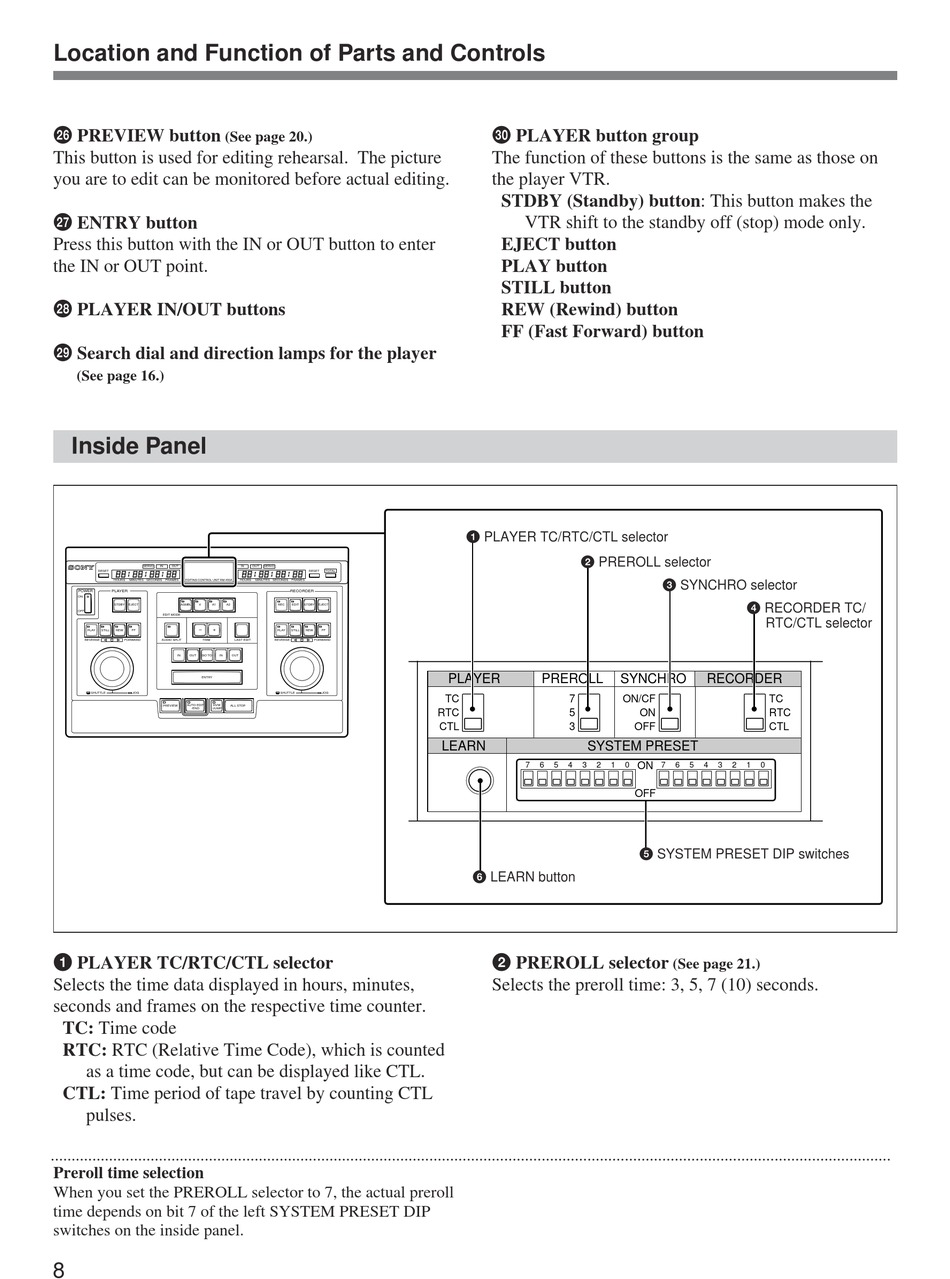

Location and Function of Parts and Controls
@§ PREVIEW button
(See page 20.)
This button is used for editing rehearsal. The picture
you are to edit can be monitored before actual editing.
@¶ ENTRY button
Press this button with the IN or OUT button to enter
the IN or OUT point.
@• PLAYER IN/OUT buttons
@ª Search dial and direction lamps for the player
(See page 16.)

Inside Panel

SERVO IN OUT
RESET
HOURS MINUTES SECONDS FRAMES EDITING CONTROL UNIT RM-450A
POWER PLAYER
ON
STDBY EJECT ASMBL V A1 A2
OFF
EDIT MODE
– +
PLAY STILL REW FF
REVERSE FORWARD AUDIO SPLIT TRIM
IN OUT GO TO IN
ENTRY
SHUTTLE JOG
PREVIEW AUTO EDIT RVW
/END /JUMP
1 PLAYER TC/RTC/CTL selector
Selects the time data displayed in hours, minutes,
seconds and frames on the respective time counter.
TC: Time code
RTC: RTC (Relative Time Code), which is counted
as a time code, but can be displayed like CTL.
CTL: Time period of tape travel by counting CTL
pulses.
..........................................................................................................................................................................................................
Preroll time selection
When you set the PREROLL selector to 7, the actual preroll
time depends on bit 7 of the left SYSTEM PRESET DIP
switches on the inside panel.
8
IN OUT SERVO
RESET TOTAL
HOURS MINUTES SECONDS FRAMES
RECORDER
REC EDIT STDBY EJECT
PLAY STILL REW FF
LAST EDIT REVERSE FORWARD
OUT
SHUTTLE JOG
ALL STOP
#º PLAYER button group
The function of these buttons is the same as those on
the player VTR.
STDBY (Standby) button: This button makes the
VTR shift to the standby off (stop) mode only.
EJECT button
PLAY button
STILL button
REW (Rewind) button
FF (Fast Forward) button
1 PLAYER TC/RTC/CTL selector
2 PREROLL selector
PLAYER PREROLL
TC 7
RTC 5
CTL 3
LEARN SYSTEM PRESET
7 6 5 4 3 2 1
6 LEARN button
2 PREROLL selector
Selects the preroll time: 3, 5, 7 (10) seconds.
3 SYNCHRO selector
4 RECORDER TC/
RTC/CTL selector
SYNCHRO RECORDER
ON/CF TC
ON RTC
OFF CTL
ON
0 7 6 5 4 3 2 1 0
OFF
5 SYSTEM PRESET DIP switches
(See page 21.)
