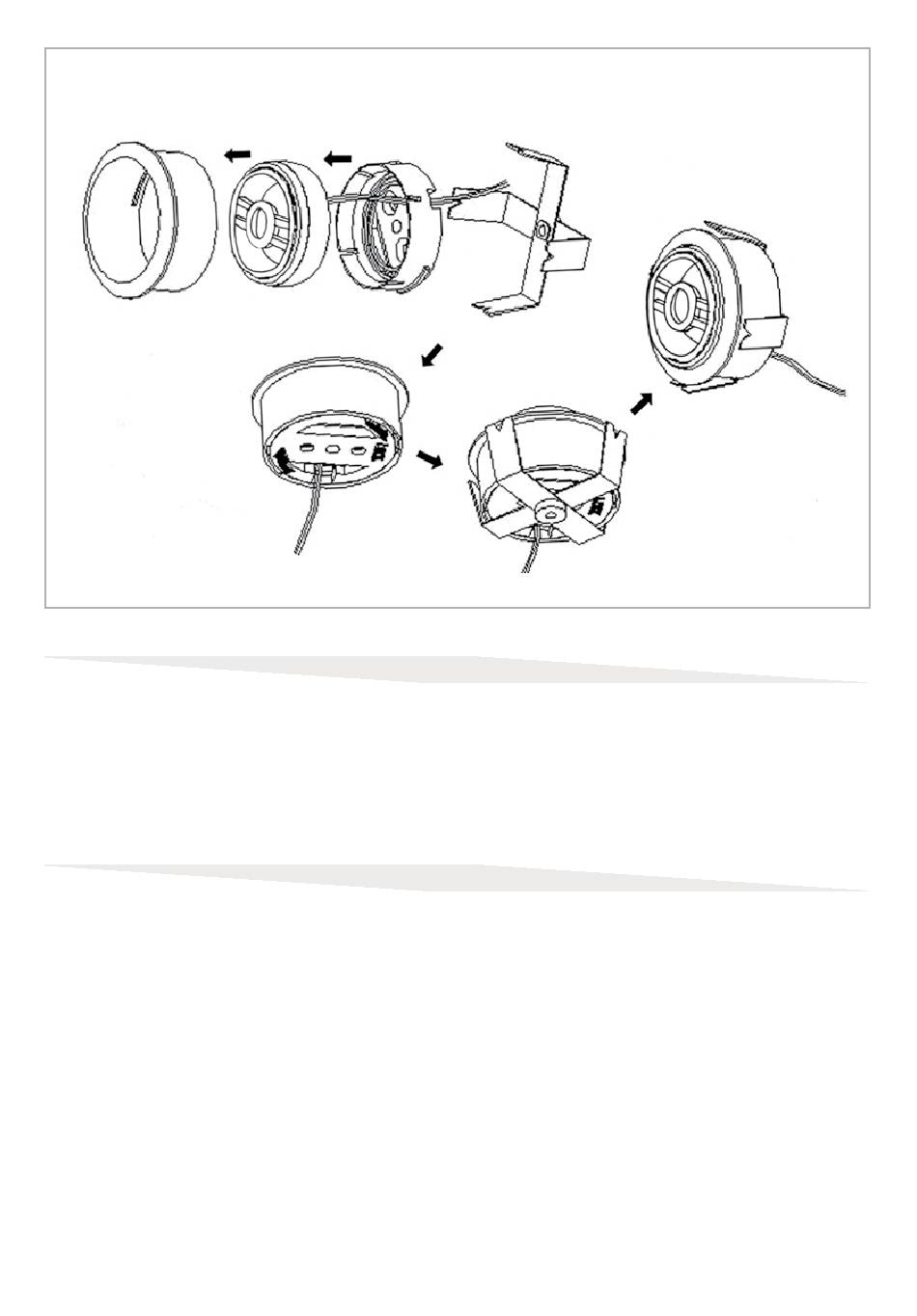

Fig. Flush Mounting
InStALLInG tHE mID/WOOfER
The EURO-DIN frame mid/woofers allow easy replacement of the factory installed speaker
systems. Their frame/bolt hole configuration is made to match perfectly with European and
Asian car factory speaker cut-outs.
For best bass performance, the mid/woofers must be mounted on a solid background,
providing an airtight and perfect fit.
If you intend to use the speaker grilles provided, mount the grille on top of the mid/woo-fer.
mOUntInG tHE CROSSOVER
The crossover can be mounted in any location inside the vehicle. Stay away from places
that could lead to excessive exposure to dirt, moisture or heat.
Double check the connection of all the speaker wires! They must be connected in-phase,
that is positive (+) is connected to positive (+), and negative (-) is connected to negative (-).
If one of the speakers is connected with reversed polarity (out of phase) to the crossover,
the result could be low bass output or/and a dislocated soundstage. However, it is
advisable to reversely connect both tweeter wires to the crossover unit and check the sonic
result by a short listening test. Depending on the distance of mid/woofer to tweeter the
overall sound quality and the soundstage might benefit from reversed polarity connection
of both tweeter units.
