Installation

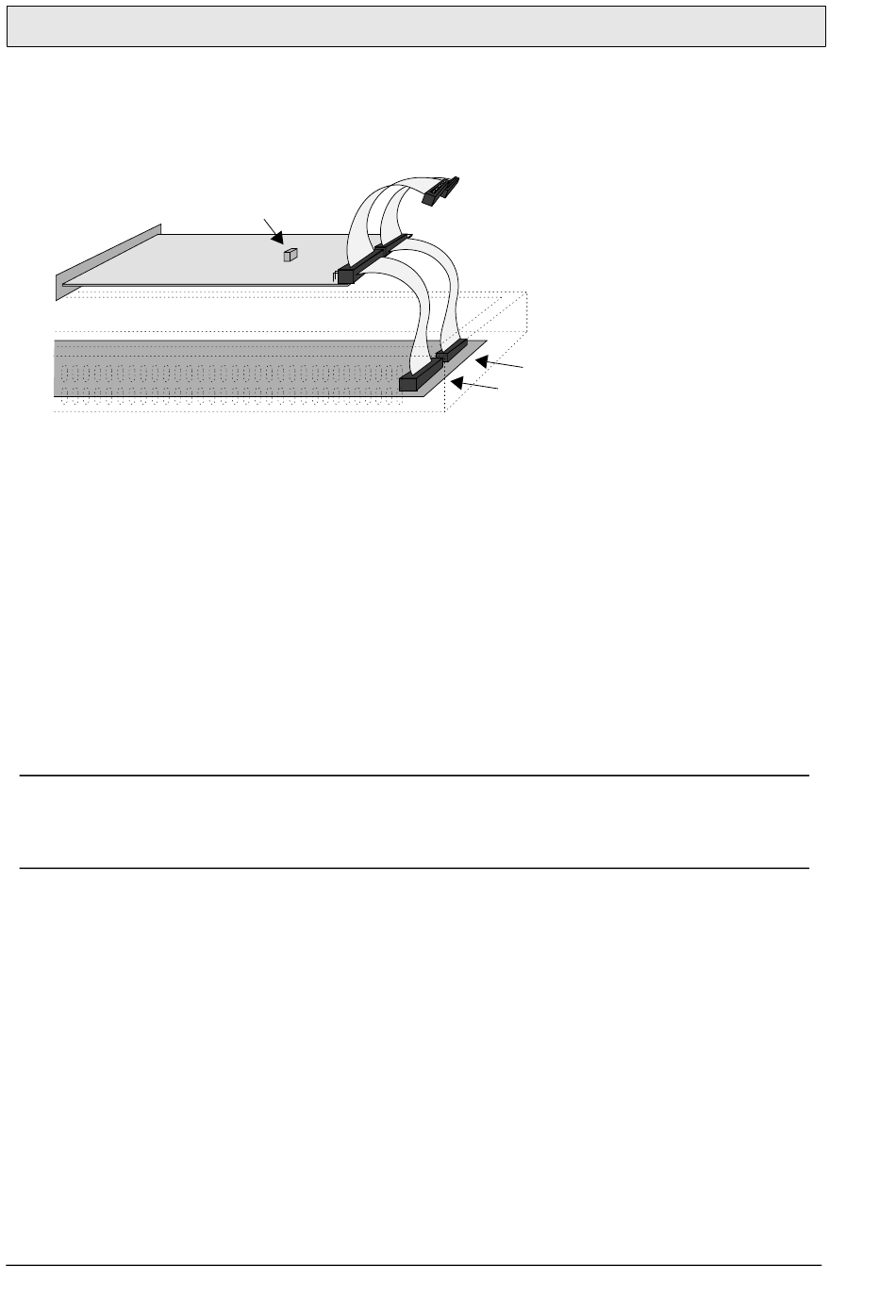

4. Put the jumper J1 on the expansion card in the position SLOT 1 if the
expansion card is mounted in Slot 1, and in position SLOT 2 if the card is
mounted in Slot 2.
5. Mount the expansion cables with the components of the expansion card
placed upwards. One of the expansion cables is mounted between X1 on the
CPU card and X1 on the expansion card, and the other cable between X2
on the CPU card and X2 on the expansion card.
6. Fasten the card with the spacers or the screws. Use the screws if the expan-
sion card is mounted in Slot 1, and the spacers if the card is mounted in
Slot 2.
7. Check that the expansion cable is correctly mounted.
8. Mount the cover plates.
Note!
To use the memory card for autoload of a terminal project, it has to be mounted
in Slot 1.
8
J1
X2
X1
X1
X2
