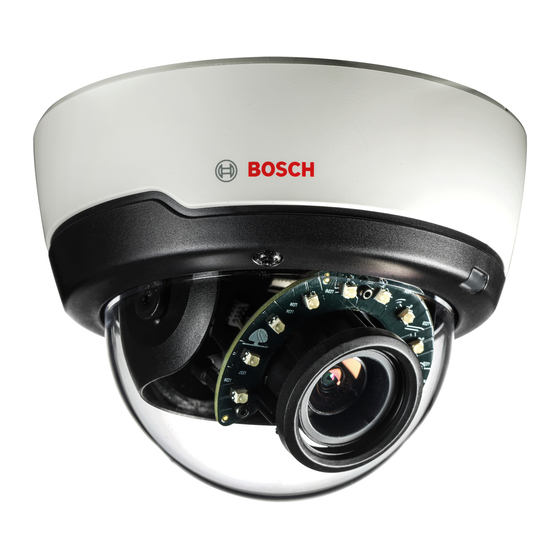

Bosch FLEXIDOME outdoor 5000 IP Schnellinstallationsanleitung

FLEXIDOME outdoor 5000 IP - Quick Install
1
x4
IR version
microSDHC Card Desiccant
5
Pan
Tilt
Do not position light sensor
below edge of cover
(IR only).
Twist
AM18-Q0657 Bosch Security Systems BV, Torenallee 49, 5617BA, Eindhoven,The Netherlands
2
Outer 6.0mm 4 Holes
Torque To 8 kg-m
For Plastic Anchor
(4 Holes)
Inner 3.3mm 4 Holes
For T4 Type Screws
Camera Outline
Cut Line
x4
T4 (Ø3.3 mm)
x4
6
CVBS
Zoom
(T <—> W)
Focus
(∞ <—> N)
Tuner
3
5 mm
RJ45
(0.2 in)
22AWG
Ethernet (PoE)
Default: DHCP on
12 VDC
(no DHCP: 192.168.0.1)
Class 2
7
Bosch Video Client
IP Camera 200 Series
NBC-255-P
© 2009
Bosch Security Systems
All rights reserved
Made in Taiwan
F.01U.132.215
Content:
• BVIP Lite Suite
• Documentation
• Tools
CD-ROM
Autorun or BVC-installer.exe
4
Line - L
Line in: 9 kOhm typ.,
200 mVrms GND
Line out: 16 Ohm min.
Line - R
200 mVrms (earphone
compatible)
5 mm
(0.2 in)
In: 30 AWG
Out: 20 AWG
Color
Orange
Relay in
Brown
Grey
Relay out
Red
8
Wizard
1/2
