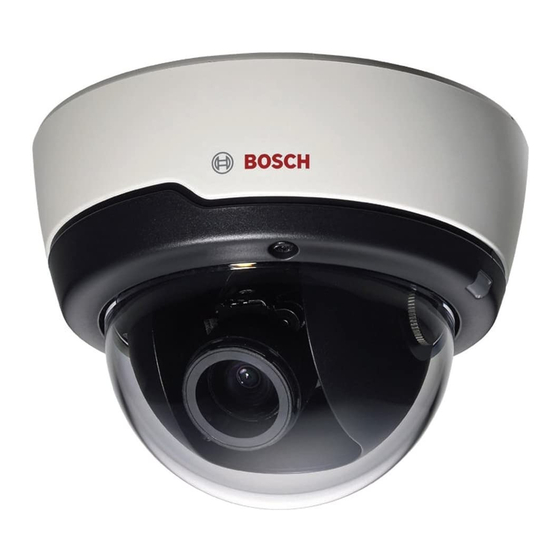

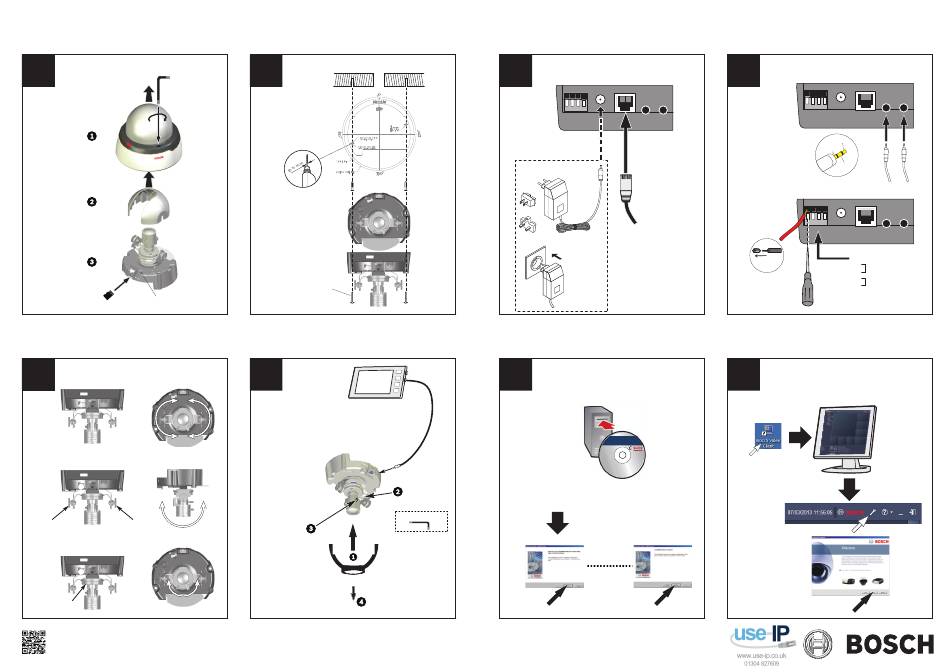

FLEXIDOME IP indoor 5000 / FLEXIDOME IP indoor 4000 - Quick Install
1
x2
microSDHC Card
Reset
5
Pan
355°
Tilt
140°
(IR: 100°)
Twist
355°
http://www.boschsecurity.com/catalog_overview.htm
Bosch Security Systems BV, Torenallee 49, 5617BA, Eindhoven,The Netherlands
2
x2
M4 (Ø3.3 mm)
x2
6
CVBS
S1460 monitor cable
(optional)
Zoom
(T <—> W)
IR version tuner
"click"
Focus
(∞ <—> N)
Focus aid
AM18-Q0655
3
DC 12V
Ethernet
Line-out
Line-in
1 2 3 4
RJ45
Ethernet (PoE)
12 VDC
Default: DHCP on
Class 2
(no DHCP: 192.168.0.1)
7
Bosch Video Client
IP Camera 200 Series
NBC-255-P
© 2009
Bosch Security Systems
All rights reserved
Made in Taiwan
F.01U.132.215
Content:
• BVIP Lite Suite
• Documentation
• Tools
CD-ROM
Autorun or BVC-installer.exe
4
DC 12V
Ethernet
Line-out
Line-in
1 2 3 4
Line - L
Line in: 9 kOhm typ.,
200 mVrms
GND
Line out: 16 Ohm min.
Line - R
200 mVrms (earphone
compatible)
DC 12V
Ethernet
Line-out
Line-in
1 2 3 4
Pin
I/O
5 mm
(0.2 in)
1
Relay out
2
3
Relay in
4
8
Wizard
1/2
