Dear Customer,
Before you use the cartridge gun for the first time,
please read these instructions and note the
information for the tool's operation and maintenance.
Always keep this manual with the tool.

1. Items supplied

1 cartridge gun
1 plug-in nipple R 1/4"

2. Technical data

Permissible working pressure max.
Air consumption
Cartridges
Recommended hose diameter
Compressed air quality
Air supply
via conditioning unit with filter pressure reducer
and mist oiler
Compressor capacity
approx. 250 l/min. equivalent to a motor
rating of 2.2 kW.
Work settings
6 bar working pressure set at the pressure
reducer or filter pressure reducer
Please note:
When working with the cartridge gun, be sure to
wear the necessary protective clothing,
particularly goggles and safety gloves.
Observe the safety regulations.
4
13.11.2001 7:53 Uhr
4 bar
approx. 170 l/min.
310 ml
Ø 9 mm
cleaned and oiled
Seite 4

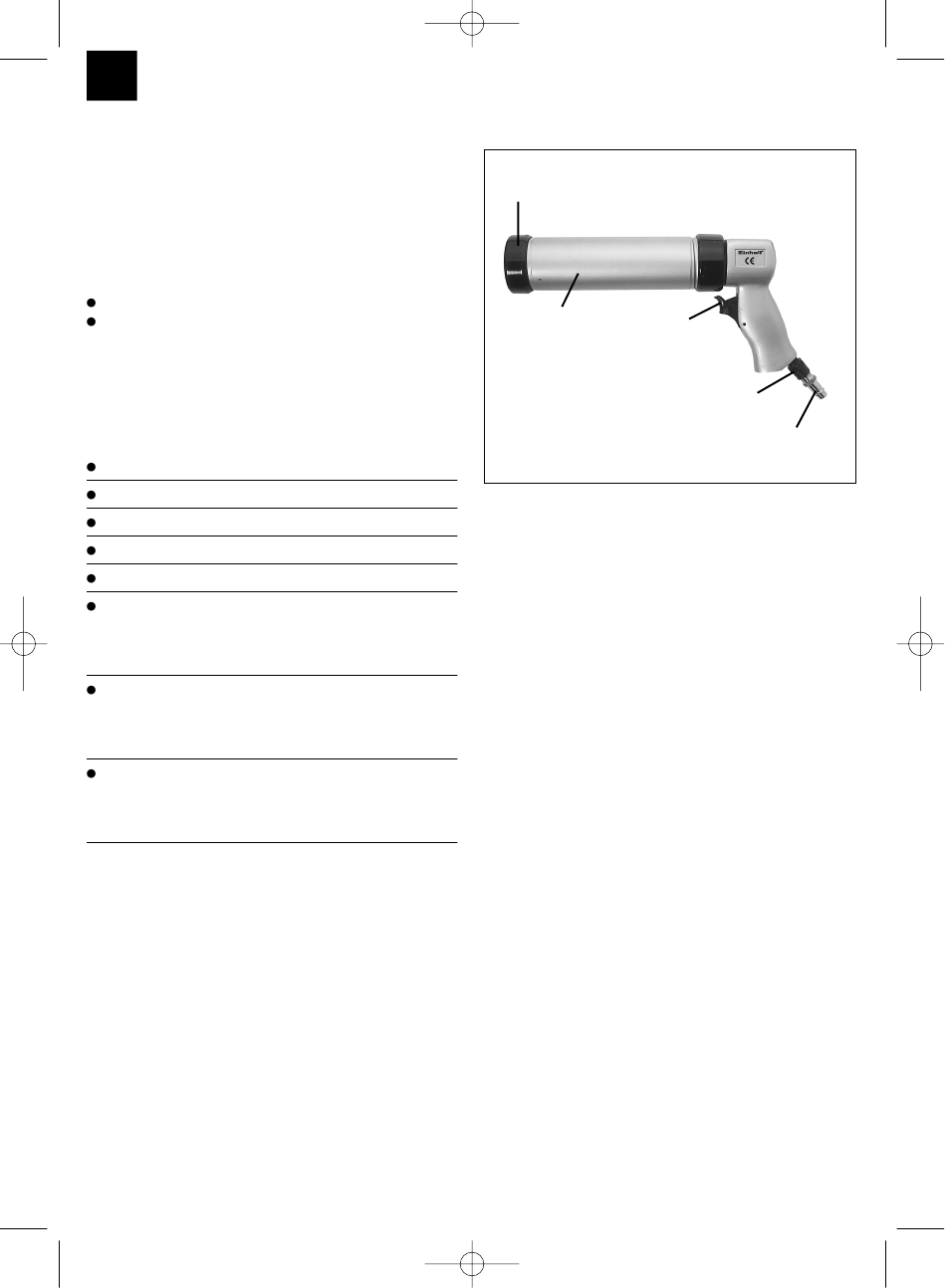

3. Illustration
E
D
Item Description
A connection nipple
B air connection
C trigger lever
D cartridge container
E screw plug

4. Proper use

The cartridge gun is a pneumatic tool for general
use.
Repairs and maintenance work are to be carried out
only by authorized specialist workshops.
Please note!
The power of the tool will be reduced if you use a
hose that has too small an inner diameter or
which is too long.
C
B
A
