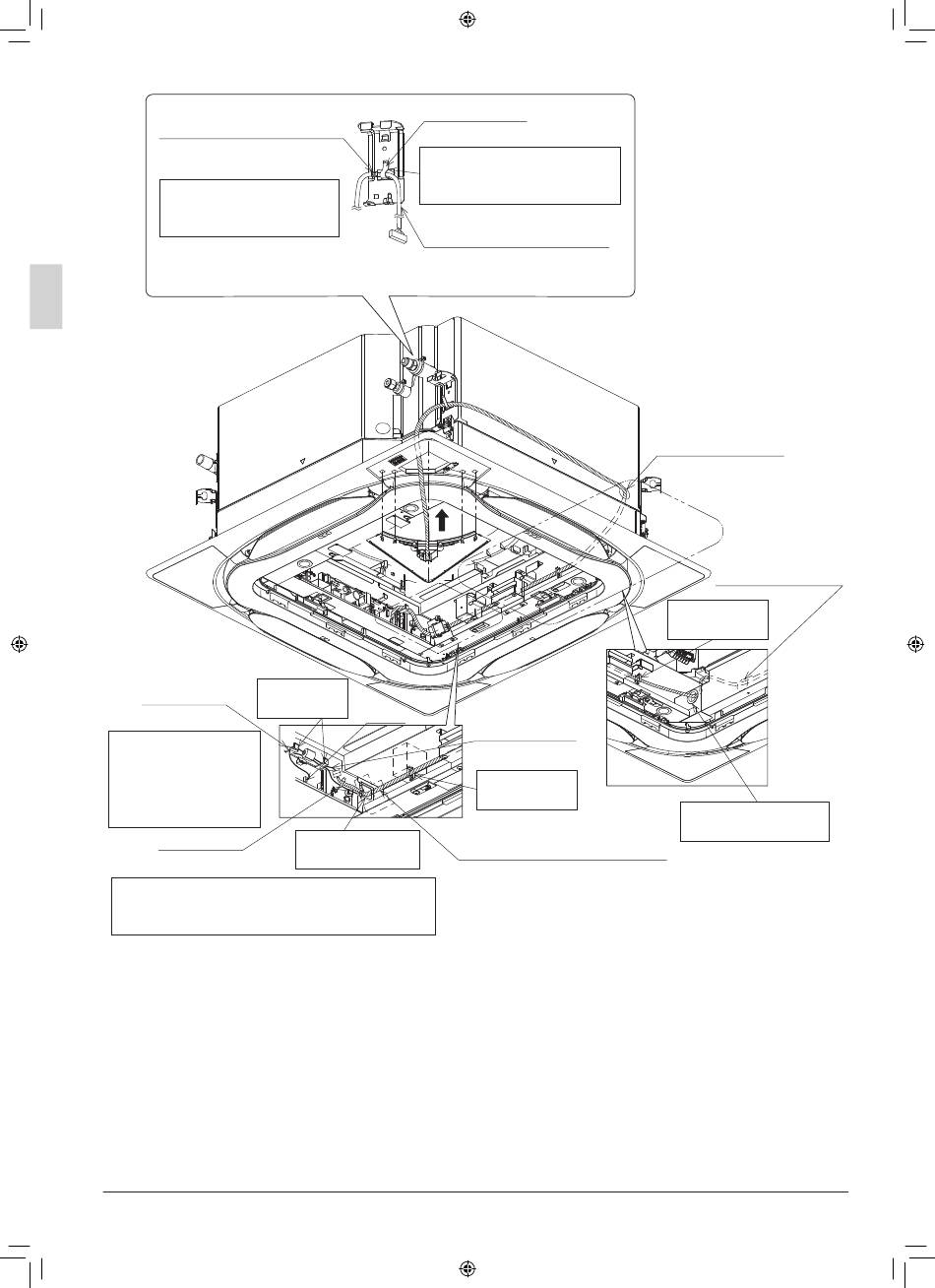

Clamp
(Supplied with the
wire harness)
Make sure the clamp is
in the position shown in
the figure.
Clamp (2)
(Accessory)
Secure relay harness
(small) (6) to the hook.
* In doing so, try not to
strain the relay
harness (small) (6).
Clamp (2)
(Accessory)
Bundle the wire harness of the corner cover
with operation display (5) and any of the lead
wires (any 1 of them) with protective tube.
15
01_EN_3P701968-3.indd 15 01_EN_3P701968-3.indd 15
Wire clamp (7)
(Accessory)
Bend the wire harness to
prevent it from moving, and
fasten securely.
Corner cover assembly (5)
Wire harness
(Accessory)
Figure 17
Pass under
the hook.
X40A
Pass through
the edge saddle.
Relay harness
(Small) (6)
(Accessory)
Pass through
the wire clip.
Wire harness of corner cover
with operation display (5)
(Accessory)
Figure 18
Field-wired path
(Low current side)
Field-wired path
(Low current side)
Pass through
the wire clip.
Pass through wiring
through-hole 2.
English
