Afbeelding 1-2: De Bedieningsorganen En Aansluitingen; Отображать - Rotel DT-6000 Bedienungsanleitung

1 2
English

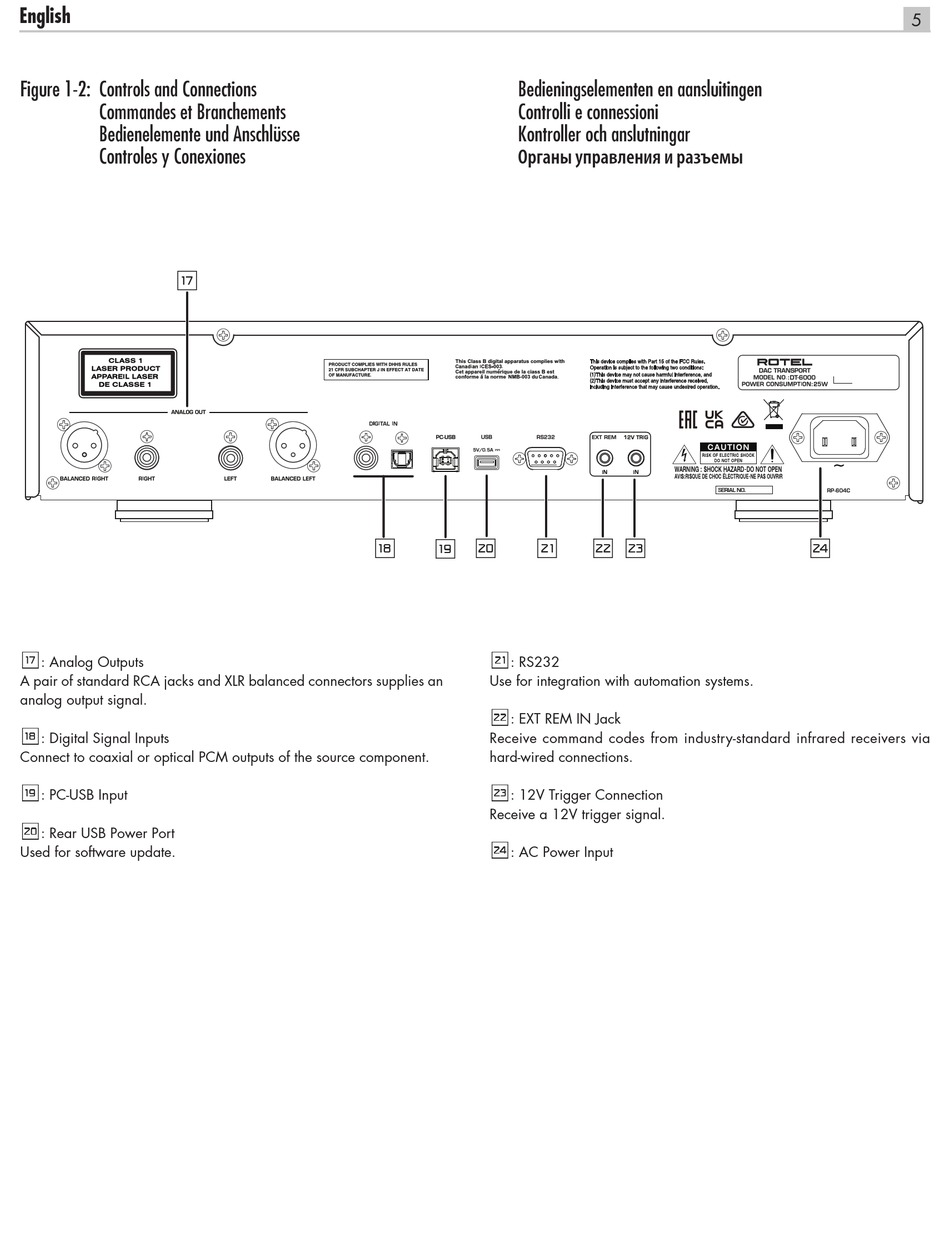

Figure 1-2: Controls and Connections
Commandes et Branchements
Bedienelemente und Anschlüsse
Controles y Conexiones
= q w e
t
t
: Analog Outputs
A pair of standard RCA jacks and XLR balanced connectors supplies an
analog output signal.
y
: Digital Signal Inputs
Connect to coaxial or optical PCM outputs of the source component.
u
: PC-USB Input
i
: Rear USB Power Port
Used for software update.
3 4 5
y
Bedieningselementen en aansluitingen
Controlli e connessioni
Kontroller och anslutningar
Органы управления и разъемы
r
u i o p
o
: RS232
Use for integration with automation systems.
p
: EXT REM IN Jack
Receive command codes from industry-standard infrared receivers via
hard-wired connections.
[
: 12V Trigger Connection
Receive a 12V trigger signal.
]
: AC Power Input
9 0
6 7
[
-
5
]
