BAYLED TEMO Montageanleitung Seite 2

10-18W VERSIONS
1
2
1 2
4
DIMENSIONS
190 100
150
200
250
3
1
2
5
6
T connector is optional
8
220V AC
N
BLUE (Neautral)
YELLOW / GREEN
ELECTRICITY
LINE
(Ground)
L
BROWN (Live)
10
Pole
Nut
Washer
Flange
Electrical Conduit
Anchor Bold
Concrete
Cable
11
POWER ON

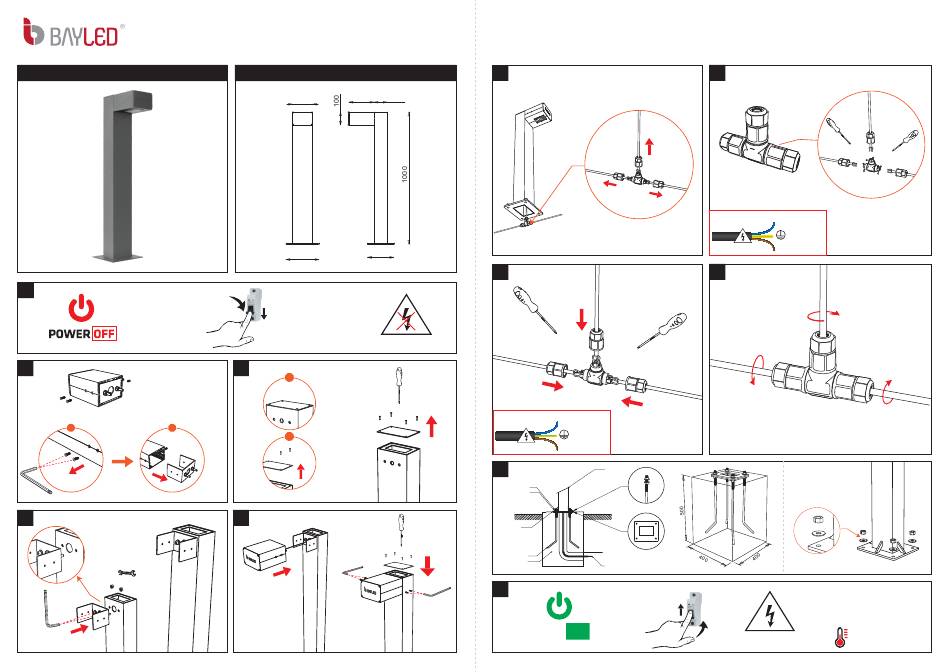

TEMO INSTALLATION INSTRUCTION
7
220V AC
N
BLUE (Neautral)
YELLOW / GREEN
ELECTRICITY
LINE (Ground)
L
BROWN (Live)
9
Power factor > 90% full load
-25°C / +55°C
OPERATION TEMPERATURE
