Thank you for purchase the Miditech i2-mini 32 USB MIDI-masterkeyboard. The i2-mini 32 is
used in conjunction with a USB equipped Mac or Windows Computer and appropriate music
software to enter MIDI notes information. They has been especially designed to work perfectly
with Apple`s Garageband software on Mac OSX computers. This manual is written to help you to
become familiar with the features of the i2-mini 32.
i2-mini 32 keyboard: 32 dynamic keys (F3 – C6)

Octave-buttons up and down with red LED

Transpose Buttons up and down with blue LED

Volume slider

Pitch bend and Modulation wheels

Sustain jack

Transmit MIDI notes on MIDI channel 1

USB MIDI

USB bus powered, no additional AC power adaptor necessary

Dimensions: 46 cm x 13 cm x 5 cm, incl. USB cable, weight 800 g.

Simply connect your i2-mini 32 with the USB cable to a free USB port of your Mac or
Windows PC computer. After connecting the OS automatically installs the keyboard as a
MIDI input device. The Miditech i2-mini 32 always starts with the PC, you do not need to
switch it on. Depending on the OS, the i2-mini 32 can be called different in your system. For
example, in Windows XP it can be named „USB audio device", in Windows 7 „AKM320".
Please setup this device as the MIDI input device in your music software.
To switch between one additional octave up or down, please press one of the buttons on the
left side of the keyboard. Press one time the left button, the keyboard will switch to one octave
lower. Press one time the right button for changing the octave range one octave up.
In the same ways the Tranpose buttons work, up and down maximum 12 semitones.
Each time your keyboard is powered off, this setting goes back to the factory default.
The volume slider controls the basic MIDI volume (CC 7) of the keyboard.
Connect an optional sustain pedal to the sustain jack on the back side of the i2-mini to control
a sustain effect. You can use a „closer" pedal or a pedal, which has a switchable polarity.

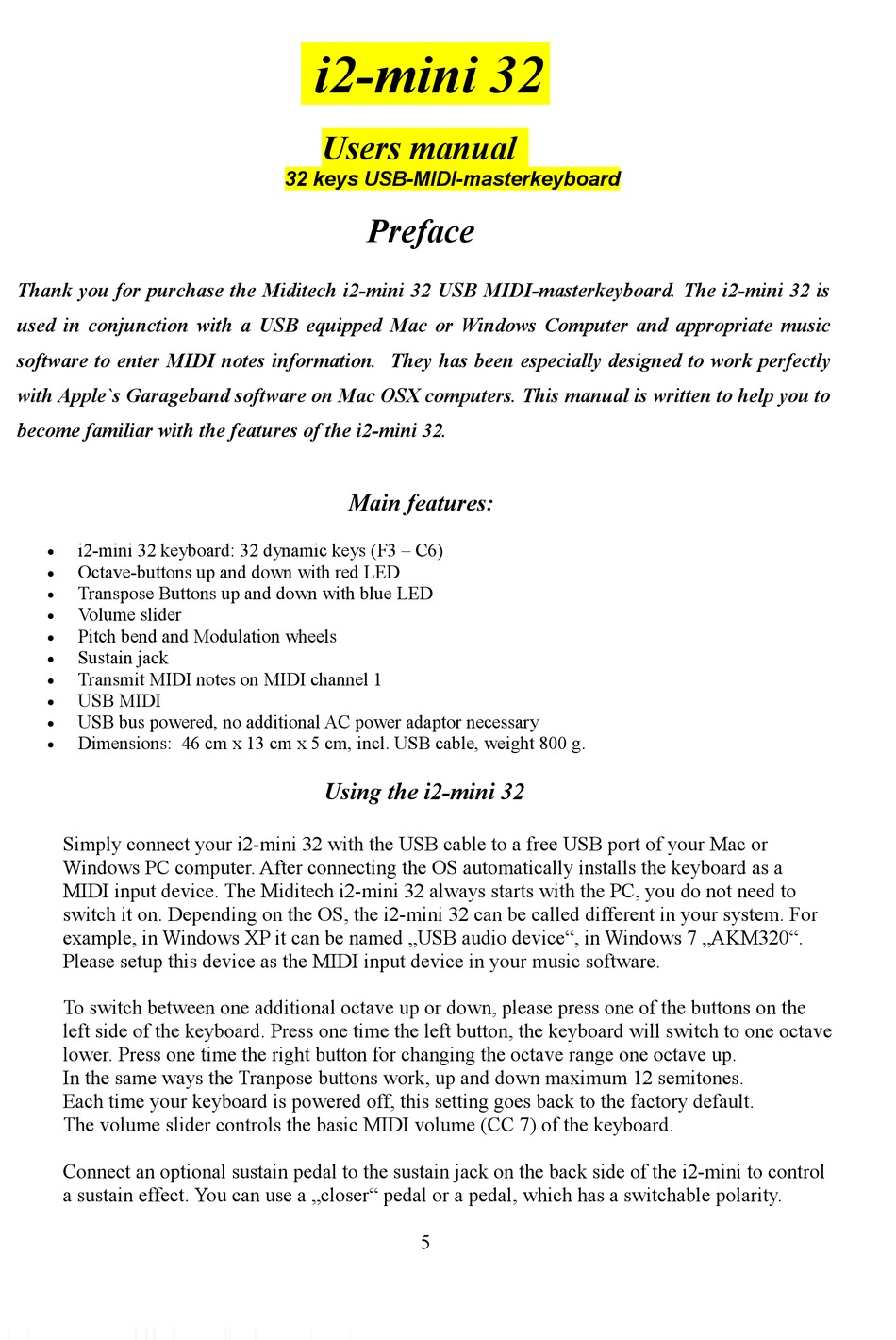

i2-mini 32
Users manual
32 keys USB-MIDI-masterkeyboard
Preface

Main features:

Using the i2-mini 32
5
