Operating instructions
7-channel receiver 2.4 GHz "Gen7"
Item no. 2611681
1 Intended use
The receiver is intended for a matching radio remote control (transmitter). For example, a steering servo, an
electronic speed controller or similar can be connected.
The power supply is possible either via the BEC of a speed controller or via a separate receiver power supply
(e.g. battery box).
This product complies with statutory, national and European regulations. For safety and approval purposes,
you must not rebuild and/or modify the product.
Read the instructions carefully and store them in a safe place. Always provide these operating instructions
when giving the product to a third party.
All company and product names contained herein are trademarks of their respective owners. All rights re-
served.
2 Delivery content
Receiver
Operating instructions
3 Latest product information
Download the latest product information at
the instructions on the website.
4 Explanation of symbols
The symbol with an exclamation mark in a triangle is used to highlight important information in
these operating instructions. Always read this information carefully.
The arrow symbol indicates special information and tips on how to use the product.
5 Safety instructions
The warranty will be void in the event of damage caused by non-compliance with these
safety instructions. We shall not be liable for any consequential damage!
We shall not be liable for damage to property or personal injury caused by incorrect
handling or failure to observe the safety information! Such cases will void the warranty/
guarantee.
Normal wear and tear in operation and damages due to accidents (like the receiver antenna
tearing off, or the receiver case breaking etc.) are excluded from the warranty.
Dear customer, these safety instructions are provided to ensure the safe operation of the product, your safety
and the safety of others. Read this chapter very carefully before using the product!
5.1 General information
The unauthorised conversion and/or modification of the product is prohibited for safety and approval
reasons.
This product is not a toy and is not suitable for children under 14 years of age.
The product must not get damp or wet. Protect it from dust/dirt/moisture and vibrations, e.g. by means
of a receiver box.
Do not connect the drive motor to electric models before the receiver system has been completely
installed. This stops the drive motor from starting before you are ready.
Check the functional safety of your model and the remote control system before each use. Inspect the
parts for any visible signs of damage, such as broken connectors or damaged cables.
Do not leave packaging material lying around carelessly, as it could become a dangerous plaything for
children.
If you have any questions that are not answered by these operating instructions, contact us or an
experienced technician.
5.2 Operation
Follow the operating instructions for the remote control you are using.
When putting the device into operation, always switch on the transmitter first. Only then turn on the
power supply for the receiver in the model. Otherwise, the model may show unpredictable reactions.
Before using the model, check whether it responds properly to the remote control commands.
Always leave the remote control turned on when the model is in use. To switch off a model, always
switch off the engine first and then switch off the receiving system (e.g. disconnect the power supply to
the receiver). Only afterwards that the transmitter can be turned off.
If the voltage is too low, the receiver may not work properly, and the model may not be controlled accord-
ingly. If this is the case, stop operation immediately.
Do not take any risks when using the product! Always use the model responsibly; otherwise, you may
endanger yourself and your surroundings.
www.conrad.com/downloads or scan the QR code shown. Follow

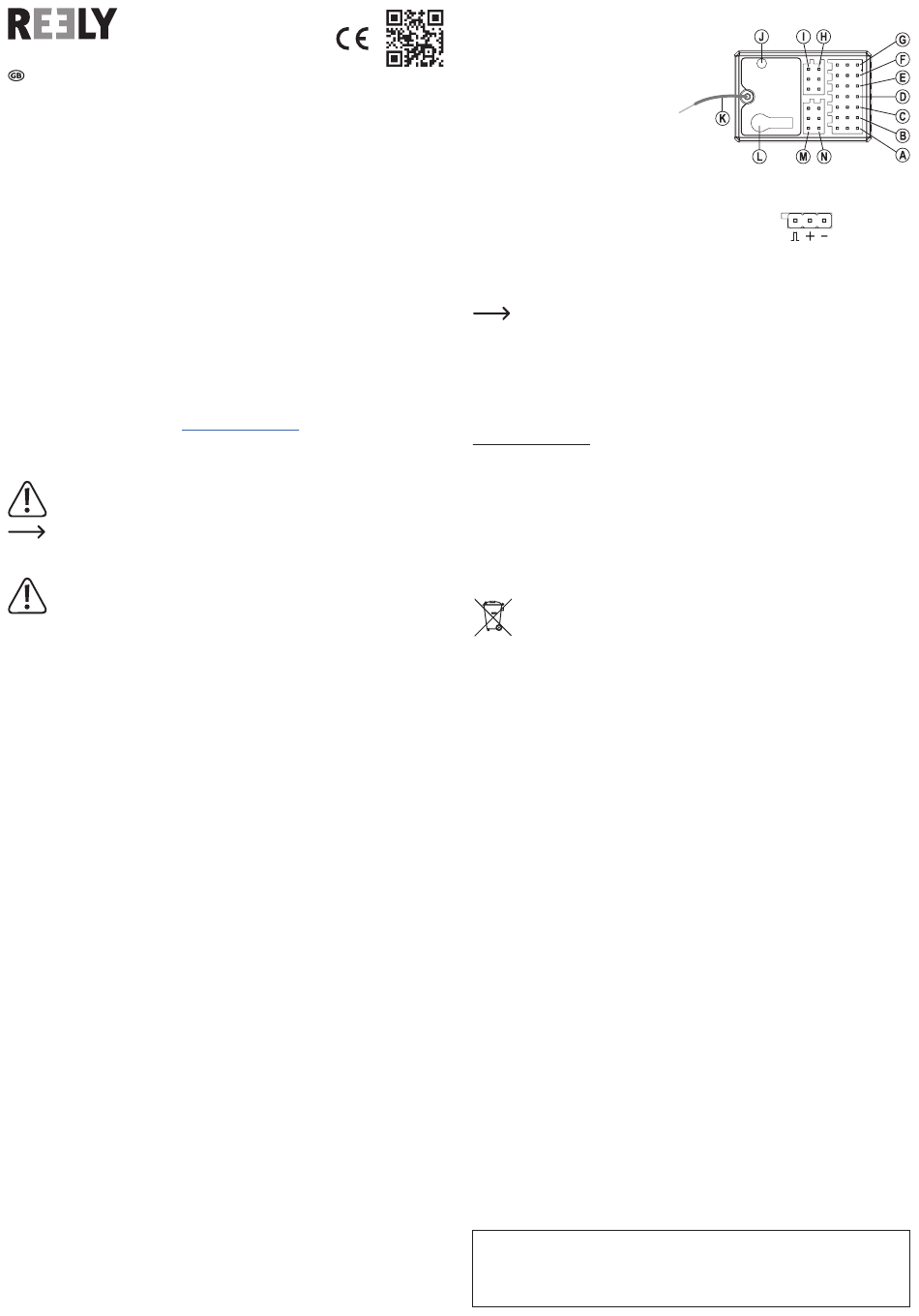

6 Controls and connections
A Channel 1 (CH1/P)
B Channel 2 (CH2)
C Channel 3 (CH3)
D Channel 4 (CH4)
E Channel 5 (CH5)
F "BIND" connector
G "BVD/VCC" connector for voltage/power
supply, if no speed controller with BEC is
used; or for voltage detection
H Channel 7 (CH7)
I "SERVO" connector for the connection of
extensions ("i-BUS")
J LED
K Antenna cable
L Binding button (hidden below the sticker)
M Connector "SENS" for external "i-BUS" sensors
N Channel 6 (CH6)
The binding process (the digital binding between transmitter and receiver) can be carried out
either via the binding button (L) or via the "BIND" connector (F). Observe the operating instruc-
tions of your transmitter.
7 Declaration of Conformity (DOC)
Conrad Electronic SE, Klaus-Conrad-Straße 1, D-92240 Hirschau hereby declares that this product con-
forms to the 2014/53/EU directive.
Click on the following link to read the full text of the EU declaration of conformity:
www.conrad.com/downloads
Select a language by clicking on a flag symbol and enter the product order number in the search box. You
can then download the EU declaration of conformity in PDF format.
8 Cleaning and maintenance
This product does not require maintenance. Use a dry, lint-free cloth for occasional cleaning.
Never use aggressive cleaning agents, rubbing alcohol or other chemical solutions, as these may cause
discolouration or damage to the housing.
9 Disposal
This symbol must appear on any electrical and electronic equipment placed on the EU market.
This symbol indicates that this device should not be disposed of as unsorted municipal waste at
the end of its service life.
Owners of WEEE (Waste from Electrical and Electronic Equipment) shall dispose of it separately from un-
sorted municipal waste. Spent batteries and accumulators, which are not enclosed by the WEEE, as well
as lamps that can be removed from the WEEE in a non-destructive manner, must be removed by end users
from the WEEE in a non-destructive manner before it is handed over to a collection point.
Distributors of electrical and electronic equipment are legally obliged to provide free take-back of waste.
Conrad provides the following return options free of charge (more details on our website):
in our Conrad offices
at the Conrad collection points
at the collection points of public waste management authorities or the collection points set up by manu-
facturers or distributors within the meaning of the ElektroG
End users are responsible for deleting personal data from the WEEE to be disposed of.
It should be noted that different obligations about the return or recycling of WEEE may apply in countries
outside of Germany.
10 Technical data
Operating voltage ................................. 3.5 - 9 V/DC
Transmission frequency........................ 2.406 - 2.474 GHz
Transmission power.............................. 17.58 dBm
Range (in free field) .............................. max. 300 m
Number of channels ............................. 7
Radio protocol ...................................... ANT
Connection system ............................... JR
Dimensions (W x D x H) ....................... approx. 35 x 23.6 x 13.3 mm
Weight .................................................. approx. 8.3 g
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method (e.g. photocopying, microfilming or capturing in
electronic data processing systems) requires prior written approval from the publisher. Reprinting, also in part, is
prohibited. This publication reflects the technical status at the time of printing.
Copyright 2022 by Conrad Electronic SE. *2611681_V1_0922_02_VTP_m_en
