MOSAIC CONFIGURATION MEMORY (MCM)
MCM is a memory
file saving.
Each time MCM is used, carefully check that the chosen configuration is the one that was planned
for that particular system.
If the file inside the MCM does not match the one contained in M1, the file of MCM will overwrite
the M1 erasing definitively the old data. WARNING: ALL DATA PREVIOUSLY CONTAINED IN M1
(PASSWORD INCLUDED) WILL BE OVERWRITED.
Perform again a fully functional test of the system composed of Mosaic plus all devices connected
to it (see the TEST section on the MOSAIC technical manual).
MCM card insertion
•
Always switch the M1 module off before peform the following steps.
•

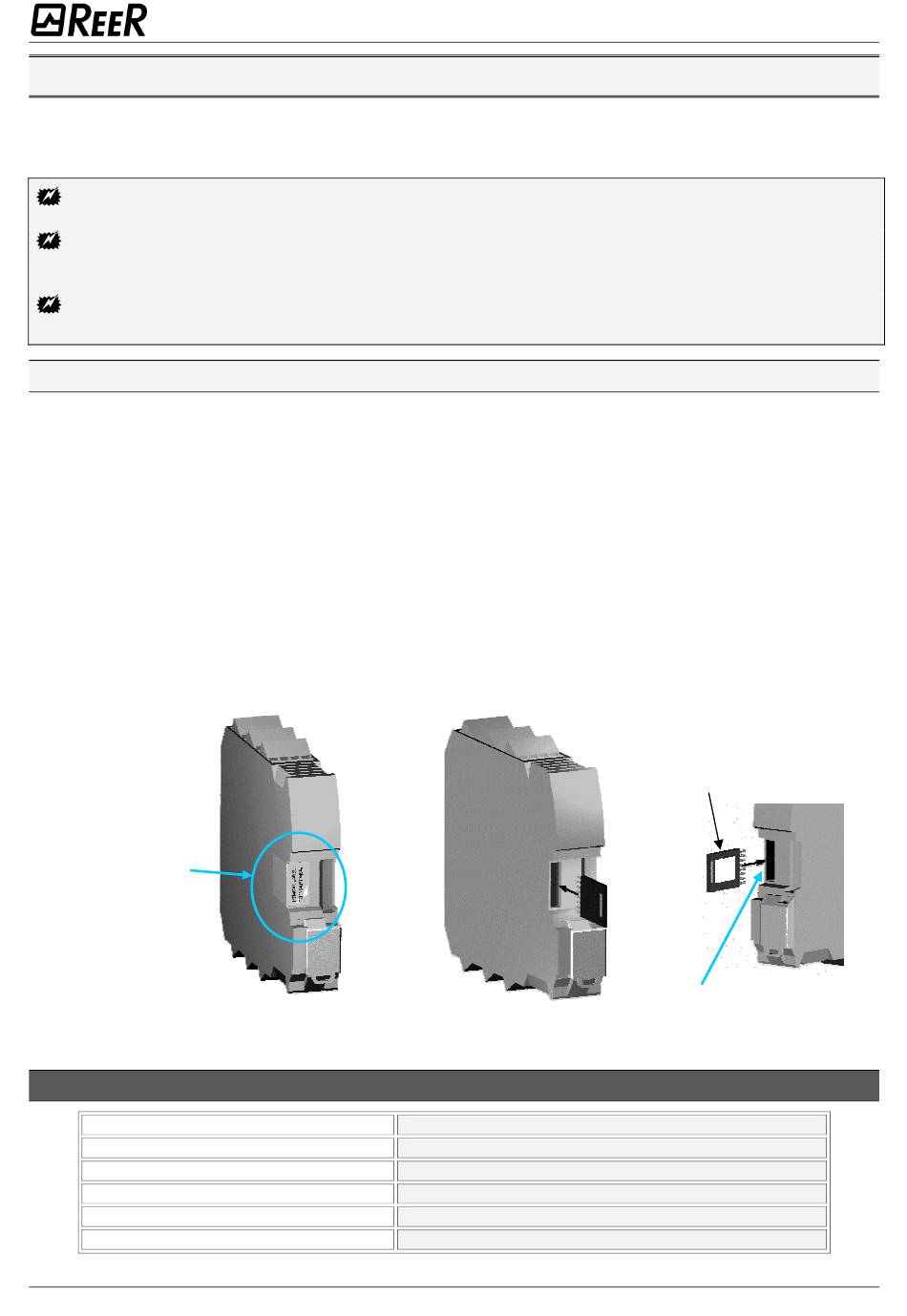

Remove the protection label (Figure 1).
•
Insertion of the MCM card inside the M1 module must be performed as Figure 2 and Figure 3 show.
If insertion is not correct the memory will not be damaged and not detected by the system; refer to
the MOSAIC technical manual "SIGNALS" paragraph to check the leds that light on when MCM is read.
•
The MCM write operation can be performed only using the MSD software, during M1 module
programming.
•
If a not programmed memory is inserted, M1 will continue to operate normally with the previously
loaded configuration.
•
If the file inside the MCM does not match the one contained in M1, the file of MCM will overwrite the
M1 erasing definitively the old data. ALL DATA PREVIOUSLY CONTAINED IN M1 (PASSWORD
INCLUDED) WILL BE OVERWRITTEN.
•
Insert a screwdriver in the slot of the MCM to extract it from M1.
REMOVE THE
PROTECTION
LABEL FROM
THE BACK OF
THE MODULE
TECHNICAL DATA
Interface module
Connections
Operating temperature
Storage temperature
Relative humidity
Dimensions
8540787 • 10 Dicembre 2010 • Rev.1
card supplied as
Figure 1
(h x l x p)
accessory to permit
WARNING!
Figure 2
Mosaic M1
8 poles connector
-10 ÷ 55°C
-20 ÷ 85°C
10% ÷ 95%
21,5 x 18 x 2 mm
the SW configuration
THE MCM LABEL
MUST BE FACED TO
THE CENTRE OF THE
MODULE
SLOT
Figure 3
MCM Mosaic
system
