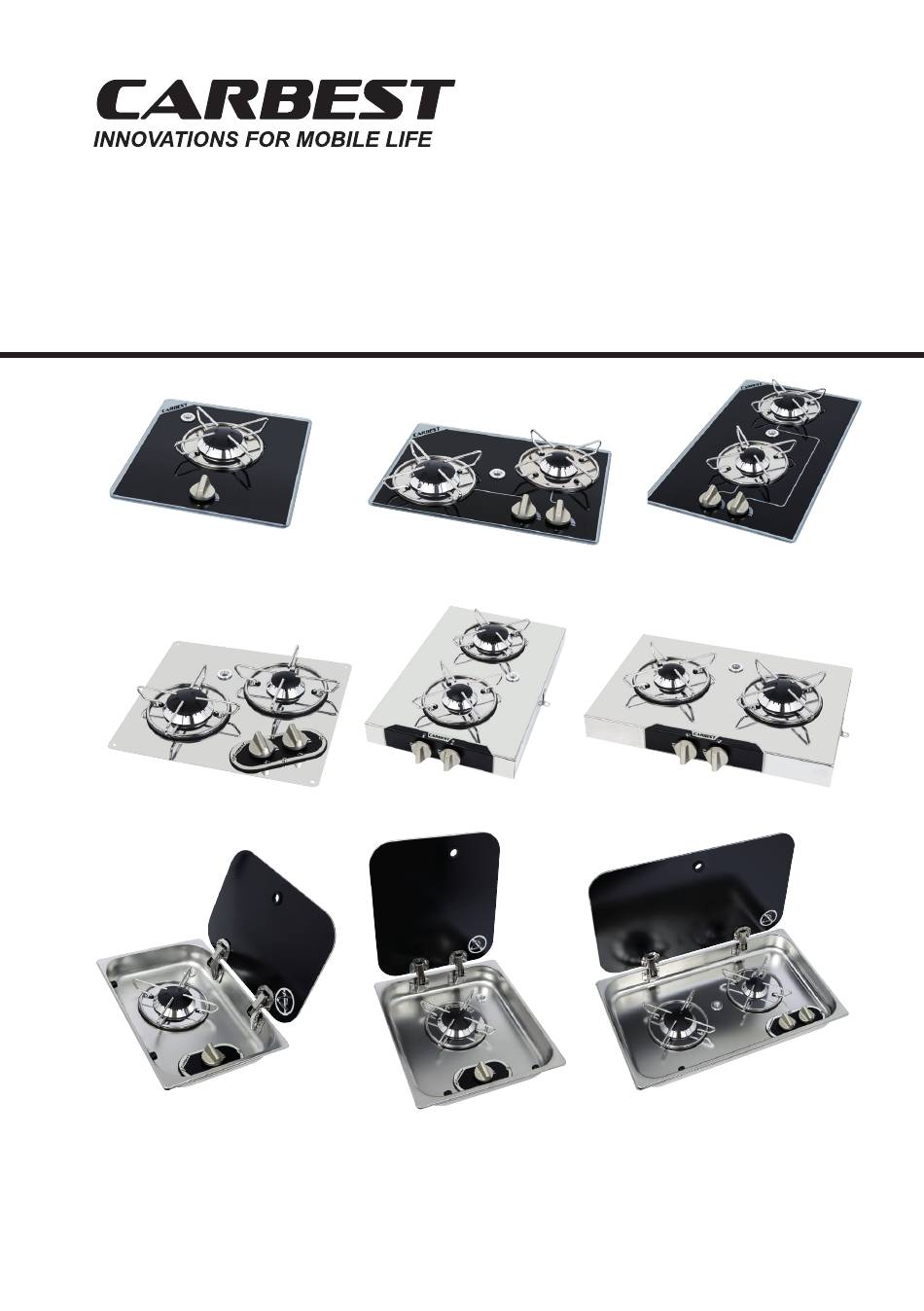

CARBEST Gaskocher l 70557-70559 / 70561-70563 / 70567-70569 1. Allgemeine Sicherheitshinweise Bitte lesen Sie vor der Installation und dem Gebrauch des Geräts diese Anleitung sorgfältig durch. Bewah- ren Sie diese Anleitung für späteres Nachschlagen und ggf. Rückfragen des technischen Kundendiensts auf.
CARBEST Gaskocher l 70557-70559 / 70561-70563 / 70567-70569 Für das richtige Verständnis dieser Anleitung prüfen Sie bitte, welches Gerätmodell Sie gekauft haben. Bei jedem Modell gibt es: • Ein Feld aus Sicherheitsglas; über jedem Drehgriff befindet sich ein Schema, auf dem markiert ist, auf welchen Brenner sich der Drehgriff bezieht;...
CARBEST Gaskocher l 70557-70559 / 70561-70563 / 70567-70569 Durchgangsschlitze Befestigungszapfen Durchgangsloch für Thermoelement Abb. 2 b): Brennerkopf Sitz zur Verbindung mit den Be- festigungszapfen Abb. 2 c): Deckel (Rückseite) Die Brennerteile, die für die normale Reinigung ausgebaut werden können, sind nur der Brennerdeckel und der Brennerkopf.
Seite 7
CARBEST Gaskocher l 70557-70559 / 70561-70563 / 70567-70569 Einsetzen und Befestigen des Geräts Das Gerät aus der Verpackung nehmen und sicherstellen, dass es nicht beschädigt ist. Im Zweifelsfall nicht fortfahren, sondern umgehend den Händler oder den technischen Kundendienst kontaktieren. Die schützende Plastikfolie entfernen.
CARBEST Gaskocher l 70557-70559 / 70561-70563 / 70567-70569 Das Gerät muss mit geeignetem Silikon oder gleichwertigem Klebstoff am Möbel befestigt werden. Soll das Gerät bündig mit der Auflagefläche des Möbels installiert werden, müssen Sie eine Fräsung (Breite 1 cm, Tiefe 1 cm) in die Öffnung im Möbel anbringen.
CARBEST Gaskocher l 70557-70559 / 70561-70563 / 70567-70569 Falls dies doch der Fall sein sollte: • Die verwendete Gassorte/Gasdruck überprüfen: diese müssen den Kenndaten des Geräts entsprechen; • Auf Verschiebungen der Brennerteile (Brennerkopf, Deckel) durch die Montage des Geräts kontrollieren.
CARBEST Gaskocher l 70557-70559 / 70561-70563 / 70567-70569 8. Außerordentliche Wartung ACHTUNG: Jede außerordentliche Wartungsarbeit des Kochfelds muss von Fachpersonal aus- geführt werden. Die Bauteile im Inneren des Kochfelds können ausgewechselt werden. Für den Zugriff auf das Innere des Kochfelds, muss dieses aus dem Möbel ausgebaut werden. Dann den Drehgriff mit der entsprechenden Nutmutter und die Wärmeschutzflanschen/Gitter entfernen.
CARBEST Gaskocher l 70557-70559 / 70561-70563 / 70567-70569 9. Technische Daten Die nachstehenden Tabellen enthalten die wichtigen technischen Daten für jeden Brenner, je nach Geräteklasse. Mittlerer Brenner Nennwärmeleistung 1,80 1,80 1,80 Verbrauch g/h Verbrauch dm3/h Größe des Injektors Reduzierte Leistung kW...
Seite 13
CARBEST Gaskocher l 70557-70559 / 70561-70563 / 70567-70569 Notizen...
Seite 14
CARBEST Gas Cooker l 70557-70559 / 70561-70563 / 70567-70569 Content 1. General warnings 2. To light the burners 3. Cleaning the appliance 4. Installation 18 - 21 5. Gas connection 6. Ventilation 7. Adjustments and transformations 8. Special maintenance 9. Specifications...
CARBEST Gas Cooker l 70557-70559 / 70561-70563 / 70567-70569 1. General Warnings Before using the appliance, read this booklet carefully. Keep it safely for every further need and for any technical servicing. This appliance must be installed in compliance with the regulations in force and used only in a well ventilat- ed environment.
CARBEST Gas Cooker l 70557-70559 / 70561-70563 / 70567-70569 The series of glass hobs comprises the models shown in the following table, which summarises the feature of the burners: To fully understand this booklet, check which model you have just purchased.
CARBEST Gas Cooker l 70557-70559 / 70561-70563 / 70567-70569 To obtain maximum performance with minimum gas consumption, we recommend that: • you use suitable pans for each burner: Burner Auxiliary (Ø 67mm) Semi-fast (Ø 88mm) Pan diameter 100 + 120 mm 160 + 220 mm •...
CARBEST Gas Cooker l 70557-70559 / 70561-70563 / 70567-70569 through slots and Fixing pegs hole for thermocouple passage Fig. 2 b): flame divider Seat for connection to the fixing pegs Fig. 2 c): cap (underside) The burner parts that can be dismantled for ordinary cleaning are the cap and flame divider. Do not use tools to dismantle the parts.
Seite 19
CARBEST Gas Cooker l 70557-70559 / 70561-70563 / 70567-70569 Inserting and fastening the appliance Remove the appliance from the packaging, ensuring that it is complete and undamaged. If in doubt, do not proceed and contact the dealer of Technical Assistance immediately. Remove the protective plastic.
CARBEST Gas Cooker l 70557-70559 / 70561-70563 / 70567-70569 The appliance must be fastened to the unit using silicone or equivalent. If you wish to install the appliance flush with the unit, it is necessary to mill (1 cm wide, 1 cm deep) the hole cut into the unit.
CARBEST Gas Cooker l 70557-70559 / 70561-70563 / 70567-70569 If this happens: • check the type of gas/pressure used: it must correspond to that indicated on the appliance plate; • check for any shifting of the burner parts (flame divider, cap), due to assembly of the appliance.
CARBEST Gas Cooker l 70557-70559 / 70561-70563 / 70567-70569 8. Special maintenance CAUTION: Any special maintenance to the hob must be carried out by authorised personnel. It is possible to replace the components inside the hob. To access the inside of the hob, it is necessary to remove it from the unit.
CARBEST Gas Cooker l 70557-70559 / 70561-70563 / 70567-70569 9. Specifications The following tables show the technical data for each burner, in relation to the appliance categories Semi Rapid Burner Nominal heat Input kW 1,80 1,80 1,80 Consumption g/h Consumption dm3/h...
Seite 25
CARBEST Gas Cooker l 70557-70559 / 70561-70563 / 70567-70569 Notes...
