Topex") informuje, iż wszelkie prawa autorskie do treści niniejszej
instrukcji (dalej: „Instrukcja"), w tym m.in. jej tekstu, zamieszczonych
fotografii, schematów, rysunków, a także jej kompozycji, należą wyłącznie
do Grupy Topex i podlegają ochronie prawnej zgodnie z ustawą z dnia 4
lutego 1994 roku, o prawie autorskim i prawach pokrewnych (tj. Dz. U.
2006 Nr 90 Poz 631 z późn. zm.). Kopiowanie, przetwarzanie,
publikowanie, modyfikowanie w celach komercyjnych całości Instrukcji jak
i poszczególnych jej elementów, bez zgody Grupy Topex wyrażonej na
piśmie, jest surowo zabronione i może spowodować pociągnięcie do
odpowiedzialności cywilnej i karnej.
GWARANCJA I SERWIS
Serwis Centralny GTX Service Sp. z o.o. Sp.k.
ul. Pograniczna 2/4 tel. +48 22 364 53 50 02-285 Warszawa e-mail
bok@gtxservice.com
Sieć Punktów Serwisowych do napraw gwarancyjnych i pogwarancyjnych
dostępna na platformie internetowej gtxservice.pl
Zeskanuj QR kod i wejdź na gtxservice.pl

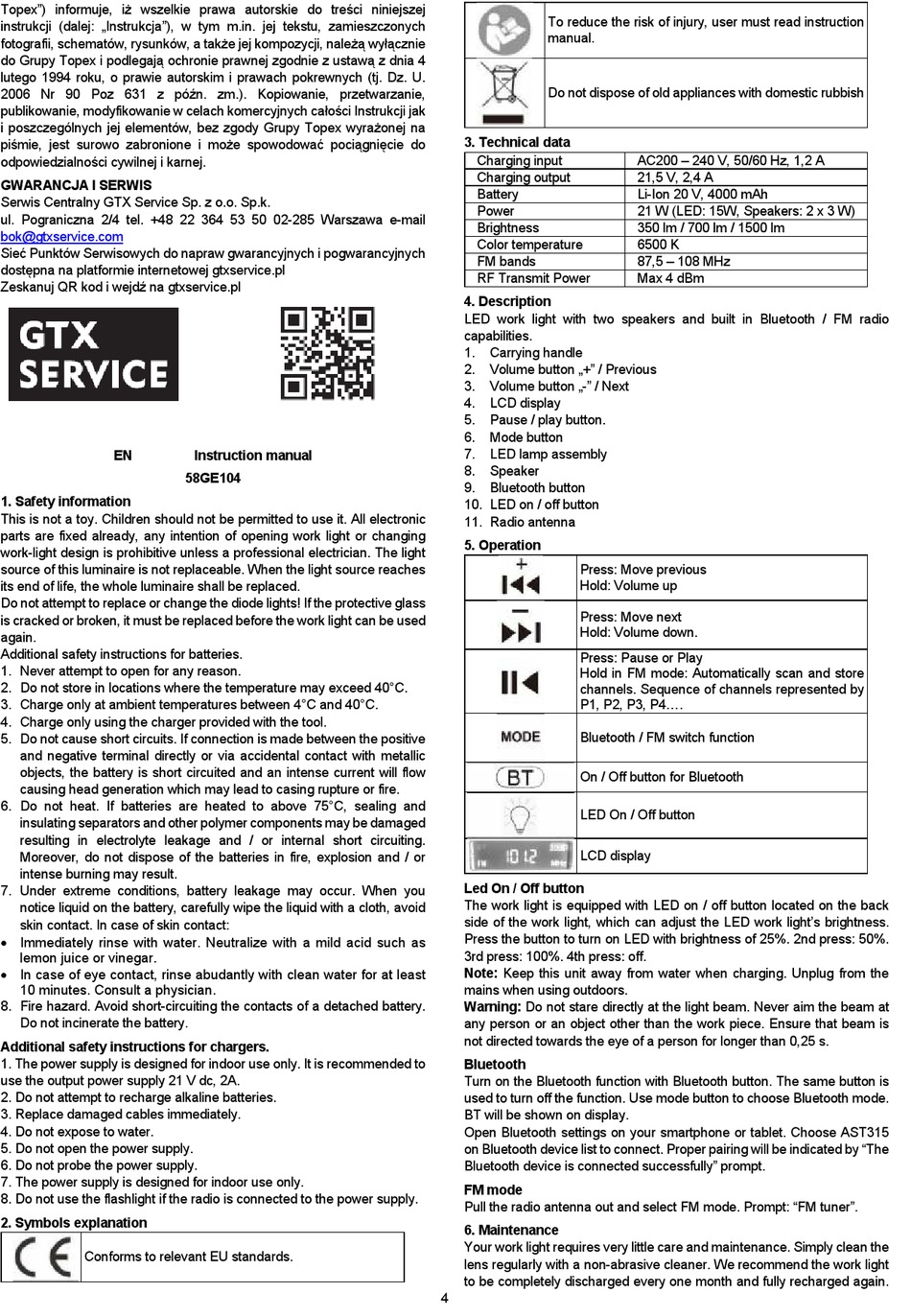

EN
1. Safety information
This is not a toy. Children should not be permitted to use it. All electronic
parts are fixed already, any intention of opening work light or changing
work-light design is prohibitive unless a professional electrician. The light
source of this luminaire is not replaceable. When the light source reaches
its end of life, the whole luminaire shall be replaced.
Do not attempt to replace or change the diode lights! If the protective glass
is cracked or broken, it must be replaced before the work light can be used
again.
Additional safety instructions for batteries.
1. Never attempt to open for any reason.
2. Do not store in locations where the temperature may exceed 40°C.
3. Charge only at ambient temperatures between 4°C and 40°C.
4. Charge only using the charger provided with the tool.
5. Do not cause short circuits. If connection is made between the positive
and negative terminal directly or via accidental contact with metallic
objects, the battery is short circuited and an intense current will flow
causing head generation which may lead to casing rupture or fire.
6. Do not heat. If batteries are heated to above 75°C, sealing and
insulating separators and other polymer components may be damaged
resulting in electrolyte leakage and / or internal short circuiting.
Moreover, do not dispose of the batteries in fire, explosion and / or
intense burning may result.
7. Under extreme conditions, battery leakage may occur. When you
notice liquid on the battery, carefully wipe the liquid with a cloth, avoid
skin contact. In case of skin contact:
Immediately rinse with water. Neutralize with a mild acid such as
lemon juice or vinegar.
In case of eye contact, rinse abudantly with clean water for at least
10 minutes. Consult a physician.
8. Fire hazard. Avoid short-circuiting the contacts of a detached battery.
Do not incinerate the battery.
Additional safety instructions for chargers.
1. The power supply is designed for indoor use only. It is recommended to
use the output power supply 21 V dc, 2A.
2. Do not attempt to recharge alkaline batteries.
3. Replace damaged cables immediately.
4. Do not expose to water.
5. Do not open the power supply.
6. Do not probe the power supply.
7. The power supply is designed for indoor use only.
8. Do not use the flashlight if the radio is connected to the power supply.
2. Symbols explanation
Conforms to relevant EU standards.
Instruction manual
58GE104
To reduce the risk of injury, user must read instruction
manual.
Do not dispose of old appliances with domestic rubbish
3. Technical data
Charging input
Charging output
Battery
Power
Brightness
Color temperature
FM bands
RF Transmit Power
4. Description
LED work light with two speakers and built in Bluetooth / FM radio
capabilities.
1.
Carrying handle
2.
Volume button „+" / Previous
3.
Volume button „-" / Next
4.
LCD display
5.
Pause / play button.
6.
Mode button
7.
LED lamp assembly
8.
Speaker
9.
Bluetooth button
10. LED on / off button
11. Radio antenna
5. Operation
Press: Move previous
Hold: Volume up
Press: Move next
Hold: Volume down.
Press: Pause or Play
Hold in FM mode: Automatically scan and store
channels. Sequence of channels represented by
P1, P2, P3, P4....
Bluetooth / FM switch function
On / Off button for Bluetooth
LED On / Off button
LCD display
Led On / Off button
The work light is equipped with LED on / off button located on the back
side of the work light, which can adjust the LED work light's brightness.
Press the button to turn on LED with brightness of 25%. 2nd press: 50%.
3rd press: 100%. 4th press: off.
Note: Keep this unit away from water when charging. Unplug from the
mains when using outdoors.
Warning: Do not stare directly at the light beam. Never aim the beam at
any person or an object other than the work piece. Ensure that beam is
not directed towards the eye of a person for longer than 0,25 s.
Bluetooth
Turn on the Bluetooth function with Bluetooth button. The same button is
used to turn off the function. Use mode button to choose Bluetooth mode.
BT will be shown on display.
Open Bluetooth settings on your smartphone or tablet. Choose AST315
on Bluetooth device list to connect. Proper pairing will be indicated by "The
Bluetooth device is connected successfully" prompt.
FM mode
Pull the radio antenna out and select FM mode. Prompt: "FM tuner".
6. Maintenance
Your work light requires very little care and maintenance. Simply clean the
lens regularly with a non-abrasive cleaner. We recommend the work light
to be completely discharged every one month and fully recharged again.
4
AC200 – 240 V, 50/60 Hz, 1,2 A
21,5 V, 2,4 A
Li-Ion 20 V, 4000 mAh
21 W (LED: 15W, Speakers: 2 x 3 W)
350 lm / 700 lm / 1500 lm
6500 K
87,5 – 108 MHz
Max 4 dBm
