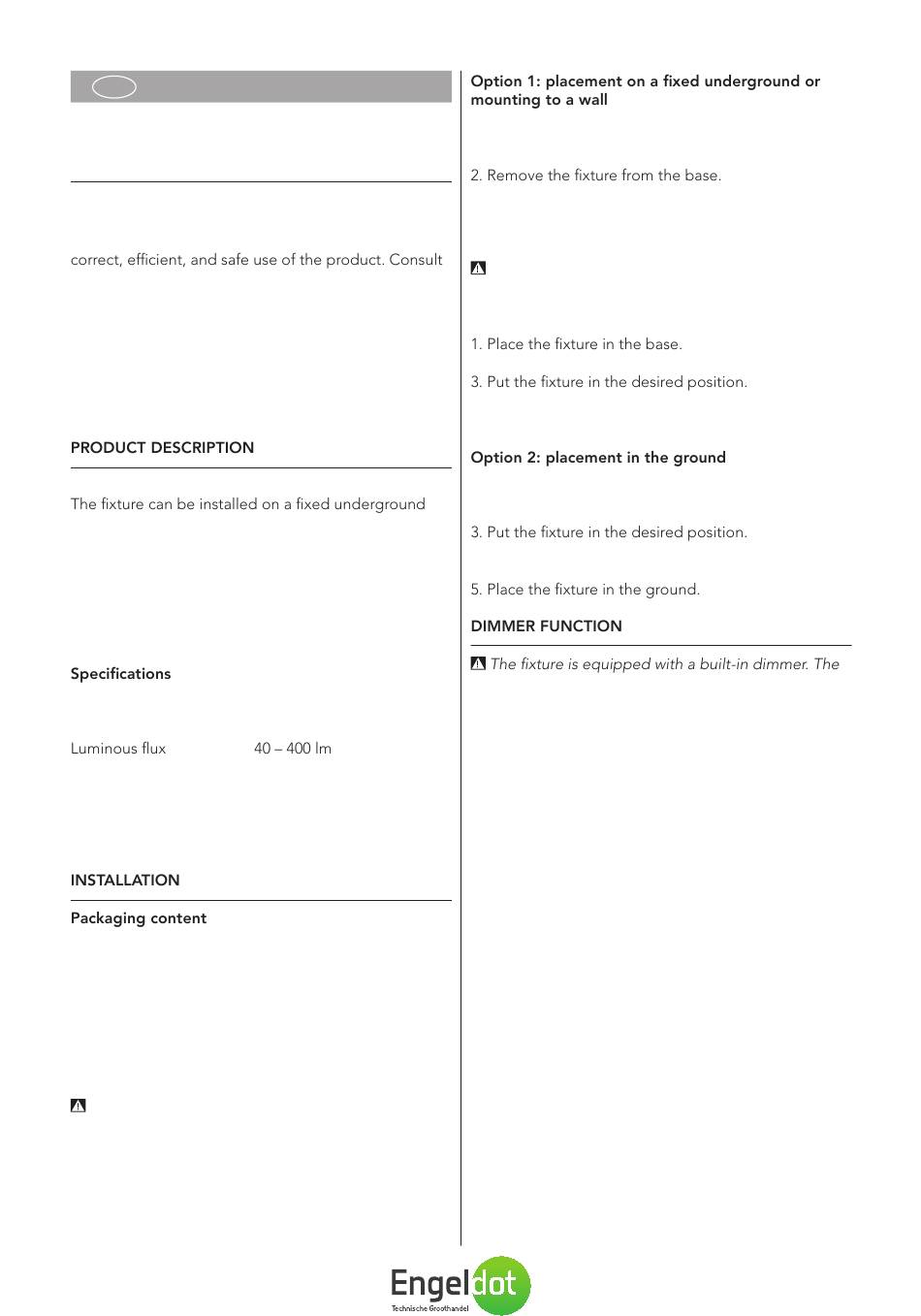

Castor 4
User manual
Thank you for purchasing the Lightpro Castor 4.
This document contains the required information for
the general manual of the Lightpro 12-volt system
and the user manual of your transformer for more
information about the set up and connection of your
light plan.
Read the information in this manual carefully before
using the product. Keep this manual near the product
for consultation in the future.
The Lightpro Castor 4 is an LED spot for outdoor use.
with the included screws, or be placed in the ground
with the included spike. This product may only be
used as outdoor lighting in combination with the
Lightpro 12-volt system. Any alterations made to the
product may have consequences for the safety, gua-
rantee, and correct functioning of the product and/or
other parts of the system.
Product
Article number
Power (max.)
Dimensions (H x W x D)
Protection class
Ambient temperature
Cable length
Dimmable
[Figure A]
1. Fixture Castor 4
2. Ground spike
3. Screw
4. Plug
5. Lightpro connector
6. Hex key (large)
7. Hex key (small)
Check if all parts are present in the packaging. For
questions about parts, service, and any complaints or
other remarks, you can always contact us. E-mail: info@
lightpro.nl
Lightpro Castor 4
178S
3.5W
120 x 60 x 100 mm
IP44
-20°C to 50°C
1m
Yes, with built-in dimmer
[Figure B]
1. Remove the screw from the base using the included
large hex key (Figure A [6]).
[Figure C]
• Install the base onto the underground with the
included screw.
If necessary, drill a hole in the underground and use
the included plug.
[Figure D]
2. Place the screw in the base.
4. Fasten the screw using the included large hex key
(Figure A [6]).
[Figure E]
1. Place the spike underneath the base.
2. Properly fasten the spike.
4. Fasten the screw using the included large hex key
(Figure A [6]).
light output can be set to 6 different levels.
[Figure F]
• Push the button to set the desired light output.
