Assembly Instructions
Instructions de montage
Montageanleitung
discobed.de
AI30531DE-FR

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für DiscoBed ONE

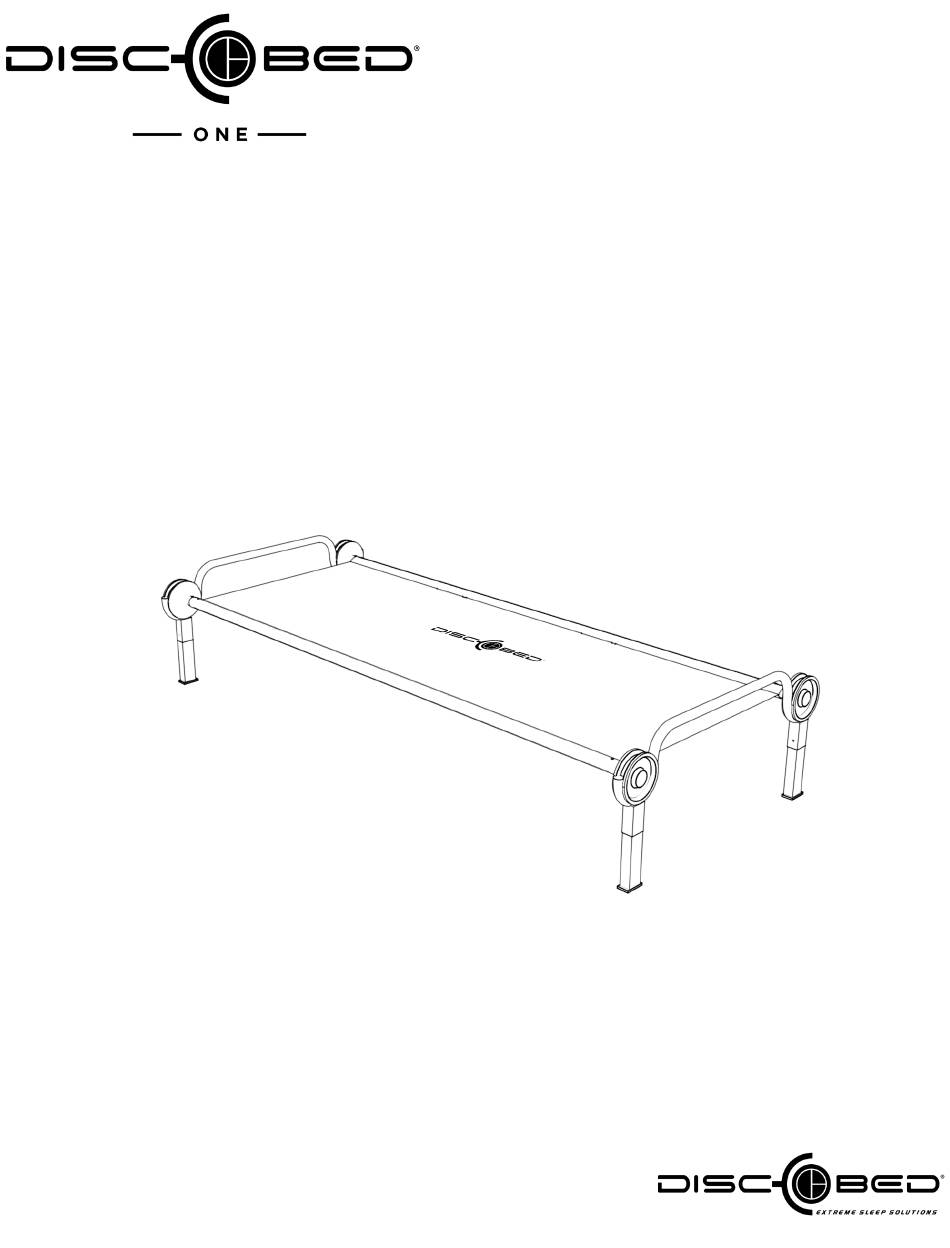

  • Seite 1 Assembly Instructions Instructions de montage Montageanleitung discobed.de AI30531DE-FR...
  • Seite 2 1. Read carefully and fully understand the manufacturer’s assembly. 2. Care and special attention should be used where a warning is indicated. 3. One person only per cot. 4. Use the cot as intended. DO NOT bunk this product. 5. Ensure that the 5 point check list is followed prior to each use of the cot.
  • Seite 3: Wichtige Warnhinweise Zu Diesem Produkt Um Gefährliche Und Tödliche Verletzungen Zu Vermeiden

    Scannez le Code QR avant le montage Scannen Sie den Code vor der Montage or visit http://www.discobed.com/v/c/ and watch assembly video Ou visitez http://www.discobed.com/v/c et regardez la vidéo le montage Oder besuchen Sie http://www.discobed.com/v/c/ und sehen Sie sich das Montagevideo an.
  • Seite 4 PARTS PIÈCES TEILE 1x Sleeping Mat 1x Matelas 1x Matte 4x Leg Extensions ONE 4x Rallonges des jambes ONE 2x End Frames 4x Beinverlängerungen ONE 2x Cadres d’extrémité 2x Rahmen 4x Discs 4x Disques 4x Discs 2x Straight Side Rails / 2x Barres latérales droites...
  • Seite 5 STEP 1. SECURING DISC TO SWAGED SIDE RAIL ÉTAPE 1. FIXEZ LE DISQUE À LA BARRE LATÉRALE EMBOUTIE SCHRITT 1. EINRASTEN DER DISC AN DER GESTAUCHTEN SEITENSTANGE 1.1. Holding swaged rail, press pin (A) down and hold. 1.1. En tenant la barre emboutie, appuyez et maintenez la tige. (A) 1.1.
  • Seite 6 2.1. Attachez une barre latérale emboutie (voir étape 1) à une barre droite. 2.1. Stecken Sie eine gestauchte Seitenstange (wie in Schritt 1 fertiggestellt) in eine gerade Seitenstange. Make sure they slide into one another completely. Assurez-vous que les barres soient complètement enfon-...
  • Seite 7 3.1. Open out sleeping mat with the correct (logo) side up. 3.2. At one end, slide the 2 rails (completed in step 2) into the sleeves of the mat. 3.3. On the other end slide the remaining 2 rails (completed in step 1) into the sleeves of the mat.
  • Seite 8 STEP 4. SECURING EACH DISC INTO THE END FRAME ÉTAPE 4. FIXEZ CHAQUE DISQUE DANS LE CADRE D’EXTRÉMITÉ SCHRITT 4. DIE DISC IN DEN RAHMEN SICHERN 4.1. Make sure pin (A) is visible, is not covered by the sleeping mat and is facing inwards. Check all four bed posts (see diag.
  • Seite 9 Diagram 4.2 Schéma 4.2 Diag. 4.2 Diagram 4.3 Schéma 4.3 Diag. 4.3 Pinch hazard Danger de se faire pincer Quetschgefahr!
  • Seite 10 STEP 5. ATTACH LEG EXTENSIONS TO BED END FRAME ÉTAPE 5. ATTACHEZ LES RALLONGES DES JAMBES À L’EXTRÉMITÉ DU CADRE SCHRITT 5. BEFESTIGEN SIE DIE BEINVERLÄNGERUNGEN AN DEN BEINEN DES RAHMENS 5.1. Press pin (A) down on leg extension and hold. 5.2.
  • Seite 11 THE ASSEMBLY OF YOUR DISC-O-BED® ONE IS NOW COMPLETE. LE MONTAGE DE VOTRE DISC-O-BED® EST MAINTENANT TERMINÉ. DIE MONTAGE IHRES DISC-O-BED® ONE IST NUN ABGESCHLOSSEN. We hope that you are completely happy with our product and that it is exactly what you expected.
  • Seite 12 1. The pin (B) is securely locked in to the disc. STEP 1 page 4. 2. Side rails fit into one another completely. Should feel smooth to the touch. STEP 3 page 6. 3. The pin (A) is facing inwards before fitting the disc into bed end frame. STEP 4 page 7.
  • Seite 13: Satisfaction Guaranteed

    Disc-O-Bed EU GmbH Lustgartenstraße 103 79576 Weil am Rhein PATENT AND DESIGN PROTECTED – SEE DISCOBED.COM/PATENTS © 2023 DISC-O-BED® EU GmbH. All rights reserved © 2023 DISC-O-BED® EU GmbH. Tous droits réservés © 2023 DISC-O-BED® EU GmbH. Alle Rechte vorbehalten...
  • Seite 14: Important Safety Warning

    1. Refer to the assembly instructions and ensure that the 5 point check list is followed prior to each use. Give special care and attention where a warning is indicated. 2. Only one person allowed per cot. 3. DO NOT allow horseplay on or under the product. NO jumping on the product. This product is not a toy.
  • Seite 15: Warranty Conditions

    WARRANTY CONDITIONS Our products are subject to strict quality controls. If a DISC-O-BED® product purchased from us does not work properly, we regret this very much and ask you to contact us at the contact address below at www.discobed.de. In addition to the statutory warranty, we grant you a guarantee on all DISC-O-BED products purchased from us, in accordance with the following provisions: YOUR LEGAL RIGHTS ARE NOT RESTRICTED BY THIS.
