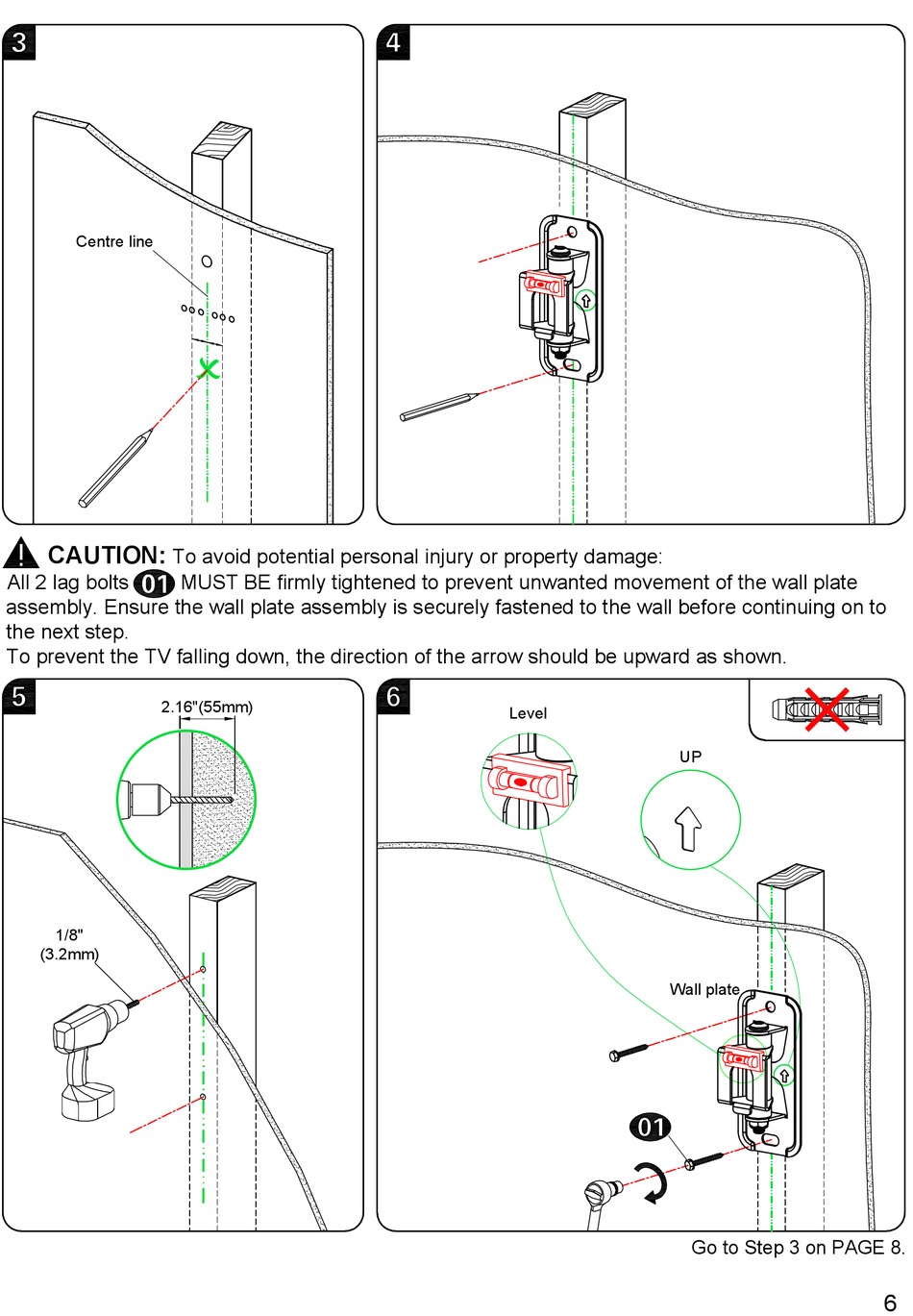

Centre line
O
CAUTION:
To avoid potential personal injury or property damage:
All 2 lag bolts
MUST BE firmly tightened to prevent unwanted movement of the wall plate
assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to
the next step.
To prevent the TV falling down, the direction of the arrow should be upward as shown.
2.16"(55mm)
Level
UP
1/8"
(3.2mm)
Wall plate
Go to Step 3 on PAGE 8.
6
