Certificate • Certificat • Certificado •
Zertifikat • Certificato
CERTIFICATE OF COMPLIANCE
We hereby certify that the device

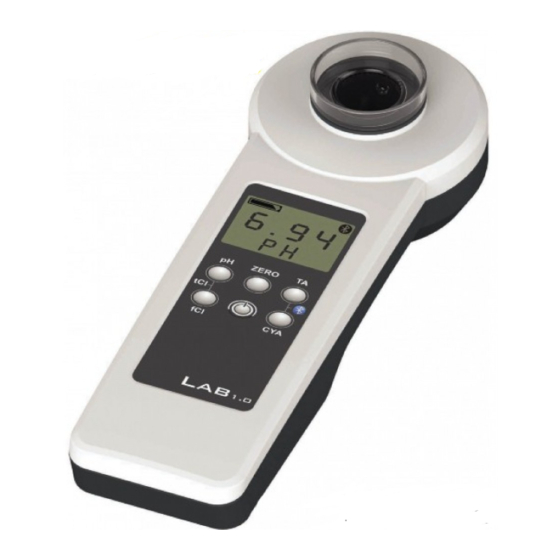

PoolLab 1.0
With it's serial number as stated below,
has passed intensive visual and technical
checks as part of our QM documentation.
Water-i.d. GmbH (Germany)
Andreas Hock, Managing Director
Water-i.d. GmbH • Daimlerstr. 20 • D-76344 Eggenstein • Germany
Water-i.d. is certified according to ISO 9001:2016
S/N
Manufacturing date
48
User Manual
GB
Manuel d'utilisation
F
Manual de usuario
E
Gebrauchsanleitung
D
Manuale dell'utente
I
www.water-id.com
V2
Werbung
Inhaltszusammenfassung für Water-id Pool Lab 1.0
- Seite 1 Manual de usuario checks as part of our QM documentation. Gebrauchsanleitung Water-i.d. GmbH (Germany) Manuale dell’utente Andreas Hock, Managing Director Water-i.d. GmbH • Daimlerstr. 20 • D-76344 Eggenstein • Germany Water-i.d. is certified according to ISO 9001:2016 Manufacturing date www.water-id.com...
- Seite 2 Delivery content • Contenu du colis • Contenido de la entrega • Lieferumfang • CONTENT contenuto della confezione PoolLab 1.0 Delivery content Light shield Changing Batteries AAA Batteries Switch on/off Crushing / Stirring Rods General Advices 6 - 7 10ml syringe ZERO 8 - 9 User guide...
- Seite 3 Batteries • Piles • Pilas • Switch on • Allumer • Encender • Batterien • Batterie Einschalten • Accendere Change • chargement • cambio • wechseln • cambiamento 2 sec. · ZERO On/Off button can also be used to skip countdown during measurement (not recommended) Le bouton Marche / Arrêt peut être également utilisé...
- Seite 4 Advices • Conseils • Consejos • IMPORTANT • IMPORTANTE • WICHTIG • Hinweise • Consigli Always use PHOTOMETER grade tablets! Never use RAPID grade tablets! Do not touch reagent tablets! Detergent waterproof Toujours utiliser des pastilles (IP68 ) de qualité PHOTOMETRE! Ne jamais utiliser des pastilles de ZERO qualité...
- Seite 5 ZERO Only 1 time per test batch • Une seule fois par lot de 3 x = test • Sólo una vez por lote de prueba • Nur 1 x pro waterproof Testreihe • solo una volta per test in batch (IP68 ) ZERO Once you performed ZERO, all measurements, like pH, chlorine...
- Seite 6 After / Après / Después de / Nach / Dopo ZERO completely Phenol Red dissolved Photometer Range: 6.50 - 8.40 pH Reagent: Phenol Red Photometer TEST! TEST! residue ZERO ZERO 3 x = waterproof (IP68 ) ZERO 10 ml 15 sec. 7.10 waterproof TEST!
- Seite 7 Chlorine After / Après / Después de / Nach / Dopo ZERO Free Chlorine • Chlore libre • Cloro libre • Chlore Freies Chlor • Cloro libero N° 1 Cloro Photometer completely Chlor dissolved Cloro Range: 0.00 - 6.00 mg/l (ppm) Reagents: DPD N°...
- Seite 8 Total Chlorine • Chlore total • Cloro total • Gesamt-Chlor • Cloro totale Total Chlorine is measured directly after free Chlorine N° 3 without emptying the cuvette. The DPD 3 tablet is added Photometer to the sample water which already contains the DPD 1 tablet (dissolved).
- Seite 9 After / Après / Después de / Nach / Dopo ZERO Cyanuric Acid Cyan. Acid • Acide Cyan • Ácido Cian. • Cyanursäure • Acido Cianurico Acide cyanurique CYA-Test Ácido cianúrico completely Photometer dissolved Cyanursäure Acido Cianurico Range: 0 - 160 mg/l (ppm) TEST! TEST! Reagent:...
- Seite 10 After / Après / Después de / Nach / Dopo ZERO Alkalinity Alkalinity • Alcalinité • Alcalinidad • Alcalinité Alkalinität • Alcalinità Alkalinity-M Alcalinidad Photometer Alkalinität completely dissolved Alcalinità Range: 0 - 300 mg/l (ppm) CaCO TEST! TEST! Reagent: Alkalinity-M Photometer ZERO ZERO 3 x =...
- Seite 11 After / Après / Después de / Nach / Dopo ZERO Active Oxygen (MPS) Active Oxygen • Oxygène actif • Oxígeno activo Aktivsauerstoff • Ossigeno Attivo Oxygène actif (MPS) N° 4 Oxígeno activo (MPS) Photometer* Aktivsauerstoff (MPS) completely dissolved Ossigeno Attivo (MPS) Range: 0.3 - 30.0 mg/l (ppm) TEST!
- Seite 12 After / Après / Después de / Nach / Dopo ZERO Chlorine Dioxide Cl.Dioxide • Dioxyde de Cl • Dióxido de Cl Dioxyde de Chlore Chlordioxid • Biossido di Cl Dióxido de cloro Only if your water sample does contain Chlorine next to Chlorine Chlordioxid Dioxide (both disinfectants used), the following procedure „A“...
- Seite 13 After / Après / Después de / Nach / Dopo ZERO After / Après / Después de / Nach / Dopo ZERO Cl.Dioxide • Dioxyde de Cl • Dióxido de Cl Cl.Dioxide • Dioxyde de Cl • Dióxido de Cl Chlordioxid •...
- Seite 14 After / Après / Después de / Nach / Dopo ZERO Bromine Bromine • Brome • Bromo • Brome Brom • Bromo Bromo Brom Only if your water sample does contain Chlorine next to Bromine (both disinfectants used), the following procedure „A“ needs to be Bromo followed and Glycine reagent needs to be used.
- Seite 15 After / Après / Después de / Nach / Dopo ZERO After / Après / Después de / Nach / Dopo ZERO Bromine • Brome • Bromo • Bromine • Brome • Bromo • Brom • Bromo Brom • Bromo With Chlorine / Avec du Chlore / Con Cloro / Without Chlorine / Sans Chlore / Sin Cloro / Mit Chlor / Con il Cloro...
- Seite 16 After / Après / Después de / Nach / Dopo ZERO Ozone Ozone • Ozono • Ozon Ozono Ozon Only if your water sample does contain Ozone next to Chlorine Dioxide (both disinfectants used), the following procedure „A“ needs to be followed and Glycine reagent needs to be used. Range: 0.0 - 4.0 mg/l (ppm) Otherwise (only Ozone present), please follow procedure...
- Seite 17 After / Après / Después de / Nach / Dopo ZERO After / Après / Después de / Nach / Dopo ZERO Ozone • Ozono • Ozon Ozone • Ozono • Ozon With Chlorine / Avec du Chlore / Con Cloro / Without Chlorine / Sans Chlore / Sin Cloro / Mit Chlor / Con il Cloro Ohne Chlor / Senza Cloro...
- Seite 18 After / Après / Después de / Nach / Dopo ZERO Hydrogen Peroxide Hyd. Perox. • Perox. d‘hyd. • Peróx. de Hidr. Wasserstoffperox. • Peross. di Idrog. Peroxyde d'Hydrogène Hyd. Peroxide LR Peróxido de Hidrógeno Photometer* Wasserstoffperoxid completely dissolved Perossido di Idrogeno Range: 0.3 - 2.9 mg/l (ppm) TEST!
- Seite 19 Error codes • Codes d'erreur • OR-UR / Dilution • OR-UR / Verdünnung • Códigos de error • Fehlercodes • OR-UR / Dilución • OR-UR / Diluzione codici di errore OR = Overrange / UR = underrange. Test result is outside the range of the method.
- Seite 20 Changing the cuvette • Changer la cuvette Cambiar la cubeta • Küvettenwechsel Accessories • Accessoires • Accesorios • cambiando la cuvetta Zubehör • Accessori Reagents • Réactifs • Reactivos • Reagenzien • Reagenti 90° POL01-Nf 20/20/10/10/10 Phenol Red / DPD N° 1 / DPD N°...
- Seite 21 ZERO LED: 530 nm / 570 nm / 620 nm 3 x AAA (1.5 V, LR03) 300 sec. ï Windows/ 5 - 45°C Apple/Linux: www.water-id.com IP 68 (1 h / 0.2 m) iOS: Developed in Germany Android: Produced in PRC...
-
Seite 22: Ce Compliance Statement
Disposal CE compliance statement Batteries We, the manufacturer of the PoolLab 1.0 Photometer hereby declare comliance of PoolLab 1.0 Photometer with the essential According to EC Guideline 2006/66/EC, user is obliged to dispose in a proper manner by returning worn out batteries to dedicated requirements in accordance to the Directive 1999/5/EC of the collection places such as any shop selling batteries. - Seite 23 - Consult the dealer or an experienced radio/TV technician for 22610- POOLLAB10 help. Model: POOL LAB 1.0 Industry Canada Licence-Exempt Radio Apparatus This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
- Seite 24 NOTES • NOTAS • NOTES • NOTAS • NOTIZEN • NOTE NOTIZEN • NOTE...
