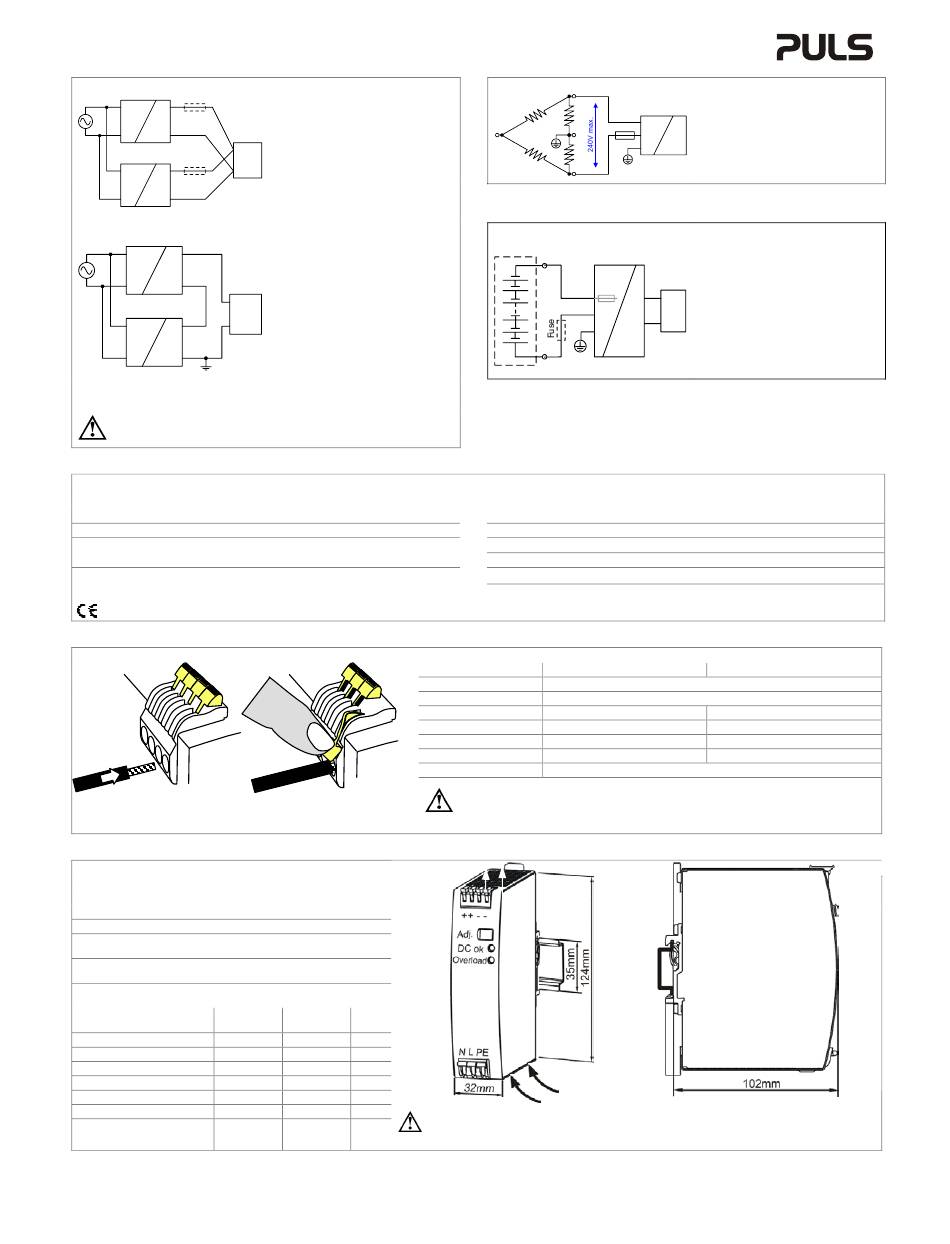

QS3 Power Supply Instruction Manual
Parallel Operation
Power Supply A
Fuse
*)
AC
+
-
DC
+
Load
Power Supply B
Fuse
*)
-
AC
+
-
DC
Serial Operation
Power Supply A
AC
+
-
DC
+
Load
Power Supply B
-
AC
+
-
DC
*)
Earth
Check touch current (earth leakage current)! The total touch current is the sum
of the touch currents of all units. Safety limits – depending on the field of
application - apply for the allowed touch current!
EMC
The device is suitable for applications in industrial environment as well as in residential,
commercial and light industry environment without any restrictions.
For further details see datasheet.
EMC Immunity
EN 61000-6-1, EN 61000-6-2
EMC Emission
EN 61000-3-2, EN 61000-3-3, EN 61000-6-3, EN 61000-6-4,
FCC Part 15 Class B
This device complies with FCC Part 15 rules. Operation is subjected to following two
conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
CE mark in conformance with EMC guideline 89/336/EEC and 93/68/EEC and low-voltage directive (LVD) 73/23/EWG.
Terminals and Connections
open
1.
Insert the wire
Physical Dimensions, Indicators and Cooling
Width
32mm / 1.26''
Height
124mm / 4.88''
Depth
102mm / 4.02''
Weight
440g / 0.97lb
Use DIN-rails according to EN 60715 or EN 50022
DIN-Rail
with a height of 7.5 or 15mm
Mounting
Output terminal on top and input terminals on the bottom.
Orientation
For other orientations consult factory.
DC-ok LED
Indicators
(green)
Normal operating mode
ON
®
BonusPower
operation
ON
Overload (V
< 90%)
ON
OUT
Overload (V
< 80%)
OFF
OUT
Short-circuit (V
= 0)
OFF
OUT
Temperature shut-down
Flashing
No input power
OFF
PU-358.010.00-10B
All manuals and user guides at all-guides.com
(1) Use only power supplies from the same
Dimension Q-series.
(2) Adjust the output voltages of all power
supplies to approximately the same value
(±500mV). Otherwise, the DC-ok signal
might not work properly.
(3) A fuse (or diode) on the output is only
required if more than three units are
connected in parallel.
(4) Keep an installation clearance of 15mm
(left/right) between two power supplies and
avoid installing the power supplies on top of
each other.
(1) It is possible to connect as many units in
series as needed, providing the sum of the
output voltage does not exceed 150Vdc.
(2) Voltages with a potential above 60Vdc
are not SELV any more and can be
dangerous. Such voltages must be installed
with a protection against touching.
(3) For serial operation use power supplies
of the same type.
(4) Earthing of the output is required when
the sum of the output voltage is above
60Vdc.
(5) Keep an installation clearance of 15mm
(left/right) between two power supplies and
avoid installing the power supplies on top of
each other.
Terminals
Type
Ferrules
Solid wire
Stranded wire
AWG
close
Stripping length
Pull-out force
2.
Snap the lever
plus DIN-rail depth
Overload
lamp (red)
OFF
OFF
ON
ON
ON
Flashing
OFF
Operation on Two Phases
L1
L3
Center
N
Tap
L2
Operation with DC Input
Battery
Power S upply
+
AC
internal
fused
L
N
PE
-
Safety
Separation of output
Touch current
Isolation resistance
PE resistance
Transformer
Approvals
Input
Bi-stable, quick-connect spring clamp terminals
Allowed, but not required
2
0.5-6mm
2
0.5-4mm
AWG 20-10
10mm / 0.4inch
10AWG:80N, 12AWG:60N, 14AWG:50N, 16AWG:40N (UL486E)
Use appropriate copper cables that are designed for an operating temperatures of 60°C (for ambient
up to 45°C) and 75°C (for ambient up to 60°C), minimum. Follow national installation codes and
regulations! Ensure that all strands of a stranded wire enter the terminal connection! Up to two
stranded wires with the same cross section are permitted in one connection point (except PE wire). Do
not use without PE (Ground) connection!
Air flow
Do not obstruct air flow! The unit is convection cooled. Ventilation grid must be kept free of any obstructions.
Keep installation clearances at higher ambient temperature and full load:
40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded
permanently with full power. In case the adjacent device is a heat source, 15mm clearance are recommended.
(1) A phase to phase connection is allowed
as long as the supplying voltage is below
+15%
240V
.
L
N
Fuse
(2) Use a fuse or a circuit breaker to protect
PE
DC
the N input. The N input is internally not
protected and is in this case connected to a
hot wire.
(1) The power supply will operate with a DC
input voltage.
(2) Use a battery or similar DC source.
(3) Connect +pole to L and –pole to N
+
(4) In case the –pole of the battery is not
Load
grounded, use an appropriate fuse to protect
-
the N terminal.
(5) Connect the ground terminal of the power
supply to a PE wire or to machine ground.
DC
SELV
IEC/EN 60950-1
PELV
EN 60204-1, EN 50178, IEC 60364-4-41
max. 0.3 mA
Earth leakages current, TN- mains
min. 5MOhm
Input to output, 500Vdc
max. 0.1Ohm
Between housing and ground terminal
Safety transformer according to IEC/EN 61558-2-17
See datasheet or markings on the unit
Output
2
0.3-4mm
2
0.3-2.5mm
AWG 28-12
6mm / 0.25inch
