This mode is suitable for Calcium battery from 20Ah upwards at normal ambient temperature.
·
The maximum charging current is 10A +/- 10 % until 16V +/- 0.25V is reached.
·
This mode could also be used to regenerate deep-discharged or sulphated Lead Acid batteries from 20 Ah upwards.
·
à Use this mode with care, high voltage may cause some water loss.
·
To select this mode, select the MODE button (13)
·
When the battery voltage reaches 16V +/- 0.25 V, LED 4 FULL lights up. The device automatically switches to float charge
stage.
You can also use this mode with batteries specified by the manufacturer to be suitable for a higher charge end voltage. Please observe the
charging instructions of the battery manufacturer.
4. Lithium mode (14.4V +/- 0.25V, Max. 10A)
·
This mode is suitable for Lithium (LiFePO4) battery.
·
The charger will automatically reset the low voltage protection for those deep discharged Lithium batteries filtered by the battery
management system (BMS).
·
To select this mode, select the MODE button (13) until both LED 9 Flooded and LED10 AGM lights up.
·
When the battery is fully charged (14.4V +/- 0.25V), LED 4 FULL lights up. The device automatically switches to float charge
stage.
Power Supply function (Max. 10A)
·
The charger can also be used as a power adapter (max. 10A).
·
There is no dedicated mode (switch) to select the Power supply function. This power supply function is only triggered
automatically to provide the power when external load is drawing with a maximum current of 10A.
·
Do not power any products that require a stabilised operating voltage of 12V (e.g. computers).
·
Make sure there is no load connected from the charger before the mode is activated.
Regeneration function:
·
This function is designed to regenerate deep-discharged batteries. It cannot be directly selected.
·
If a deep discharged rechargeable battery is connected to the charger, the regeneration mode is the first mode to start. Low
charging currents are used to try and bring the deep discharged rechargeable battery to a normal battery voltage again. When
the battery reaches a normal voltage, the charger will continue charging using the regular process.
Defective rechargeable batteries
The charger recognises defective rechargeable batteries automatically. In this case the selected charging programme will not be
started. LED 7 lights up.
MODE SELECT
Press the MODE button (13) to activate the selected mode.
CLEANING
Disconnect the battery charger from the battery and the mains voltage before cleaning it. Clean the outside of the product with a clean,
dry, and soft cloth. Do not use aggressive cleaning agents to avoid discolouration.
SPECIFICATIONS
Operating voltage: 220-240V~/50/60 Hz
Charge end voltage: 14.4V +/- 0.25V (Flooded / GEL batteries / Lithium batteries)
14.7V +/- 0.25V (AGM)
16.0V +/- 0.25V (Calcium batteries)
Charging current: 10 A +/- 10%
Rechargeable battery type: ... Any 12-V Lead-acid batteries (SLA, AGM, GEL) or 12-V Lithium (LiFePO4) or 12-V
Calcium batteries
Battery Charge capacity: 20 - 200Ah
Battery Maintenance capacity: 20 - 300Ah
Protection type: IP65 (casing)
until LED 11 CAL/BOOST lights up.
4

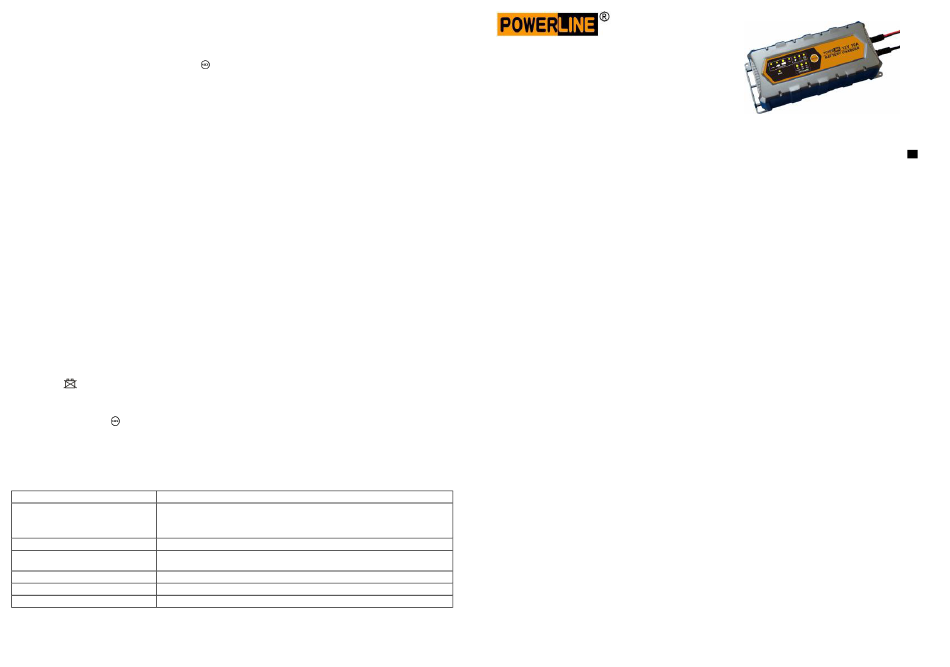

USER MANUAL
PL-C010P
12V 10A
AUTOMATIC CHARGER
© Powerline Industrial Ltd. All rights reserved.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
OPERATING INSTRUCTIONS
PL-C010P (12Volt, 10Ampere)
Intelligent Battery Charger
INTENDED USE
The product is designed to charge and maintain 12-V lead-acid, Lithium & calcium batteries with a capacity of 20 - 200 Ah.
Any use other than that described above will damage this product and involves the risk of short circuits, fire, electric shock, etc.
DELIVERY CONTENTS
·
Battery charger
·
Operating instructions
·
Cable with battery clamps
·
Cable with o-ring connectors
·
Cable with cigarette lighter plug
SAFETY INSTRUCTIONS
Please read through the operating instructions completely before operating the device. They contain important information
for correct operation. The warranty/guarantee will be void if damage is incurred resulting from non-compliance with these
operating instructions! We assume no liability for any consequential damage! We do not assume any liability for damage to
property or personal injury caused by improper use or the failure to observe the safety instructions!
General
·
Any unauthorized conversion and/or modification of this product is not admissible for safety and approval reasons (CE).
·
This product may only be operated with a voltage supply 220-240Vac ~ 50/60 Hz.
·
Always keep the product away from children. The product should be set up, used and stored in places that are not accessible to
children.
·
This product is only designed to charge 12V lead acid, Lithium and calcium battery.
non-rechargeable batteries or other type of rechargeable batteries (e.g. NiCd, NiMH) due to risk of fire and explosion.
·
Any maintenance, adjustment, and repair work may only be carried out by specialist or specialised workshop.
·
During maintenance, adjustment and repair work use only original spare parts to replace faulty components in the product.
If any damage is noticed on the product, DO NOT use the product anymore and return it to a specialised workshop or disposed it in an
environmentally friendly manner.
Operation
DO:
·
Ensured there is sufficient ventilation during operation.
DO NOT:
·
Use the product if ambient temperature is above 40℃.
·
Use the product under the present of flammable gases, solvents, vapours, and relative humidity (RH) above 80%.
·
Use the product in the vicinity of flammable or combustible substances or gases.
·
Use the battery charger inside a vehicle.
·
Cover the battery charger or the connected battery.
·
Smoke while handling the battery charger or the battery.
·
Operate the device immediately after it has been taken from a cold to warm room to avoid malfunctioning of the product due to
condensation vapour.
Notes on Lead Acid, Lithium & Calcium Battery
·
Please read through all safety and charging instructions from the battery manufacturer user manual.
·
Make sure all loads are disconnected before connecting the battery to the battery charger.
·
Make sure battery is disconnected before connecting any loads to the battery charger.
DO NOT use it to recharge
