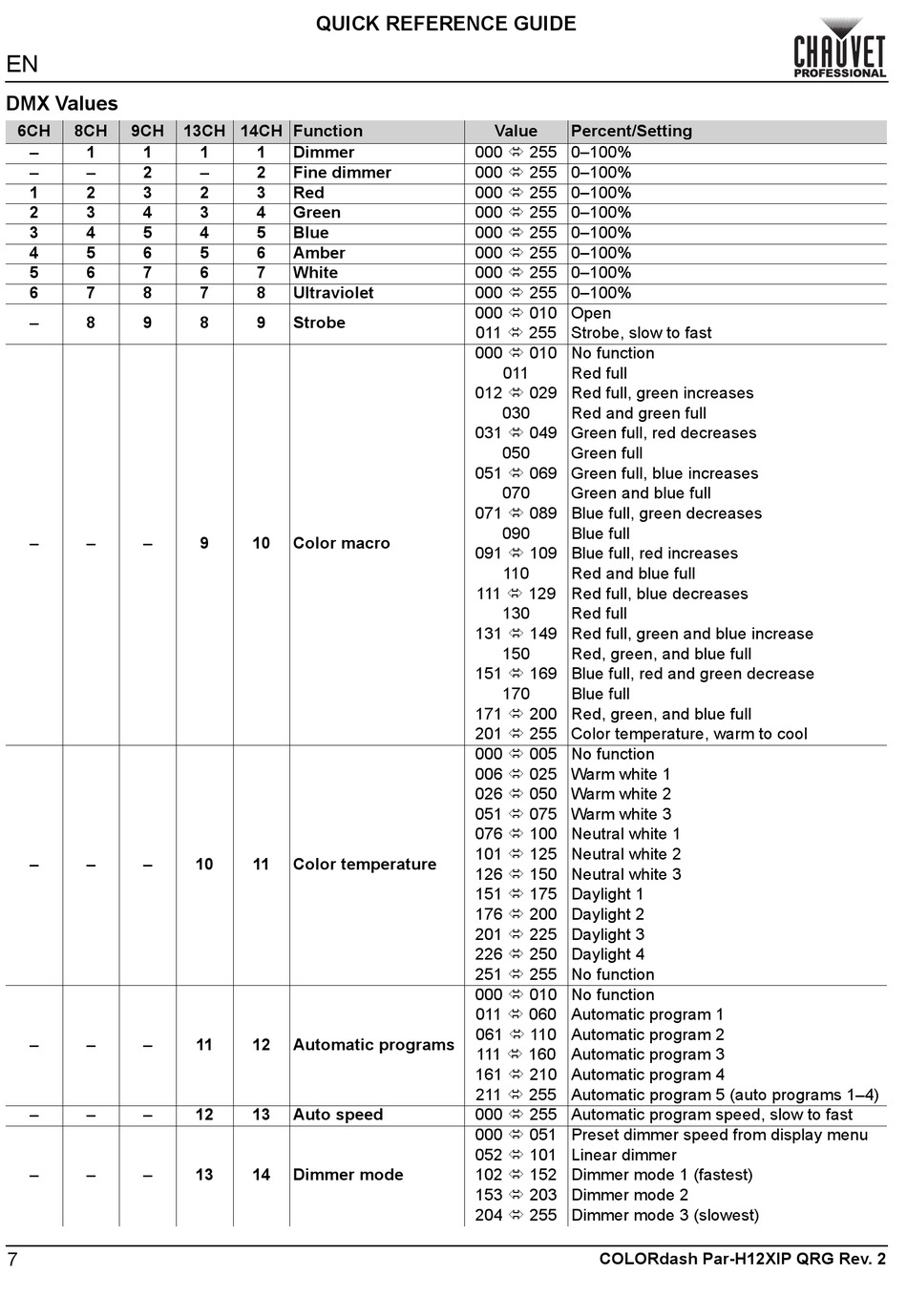

DMX Values

6CH 8CH 9CH
– 1 1
– – 2
1 2 3
2 3 4
3 4 5
4 5 6
5 6 7
6 7 8
– 8 9
– – –
– – –
– – –
– – –
– – –
7
QUICK REFERENCE GUIDE
13CH 14CH Function
1 1 Dimmer
– 2 Fine dimmer
2 3 Red
3 4 Green
4 5 Blue
5 6 Amber
6 7 White
7 8 Ultraviolet
8 9 Strobe
9 10 Color macro
10 11 Color temperature
11 12 Automatic programs
12 13 Auto speed
13 14 Dimmer mode
Value Percent/Setting
000  255 0–100%
000  255 0–100%
000  255 0–100%
000  255 0–100%
000  255 0–100%
000  255 0–100%
000  255 0–100%
000  255 0–100%
000  010 Open
011  255 Strobe, slow to fast
000  010 No function
011 Red full
012  029 Red full, green increases
030 Red and green full
031  049 Green full, red decreases
050 Green full
051  069 Green full, blue increases
070 Green and blue full
071  089 Blue full, green decreases
090 Blue full
091  109 Blue full, red increases
110 Red and blue full
111  129 Red full, blue decreases
130 Red full
131  149 Red full, green and blue increase
150 Red, green, and blue full
151  169 Blue full, red and green decrease
170 Blue full
171  200 Red, green, and blue full
201  255 Color temperature, warm to cool
000  005 No function
006  025 Warm white 1
026  050 Warm white 2
051  075 Warm white 3
076  100 Neutral white 1
101  125 Neutral white 2
126  150 Neutral white 3
151  175 Daylight 1
176  200 Daylight 2
201  225 Daylight 3
226  250 Daylight 4
251  255 No function
000  010 No function
011  060 Automatic program 1
061  110 Automatic program 2
111  160 Automatic program 3
161  210 Automatic program 4
211  255 Automatic program 5 (auto programs 1–4)
000  255 Automatic program speed, slow to fast
000  051 Preset dimmer speed from display menu
052  101 Linear dimmer
102  152 Dimmer mode 1 (fastest)
153  203 Dimmer mode 2
204  255 Dimmer mode 3 (slowest)
