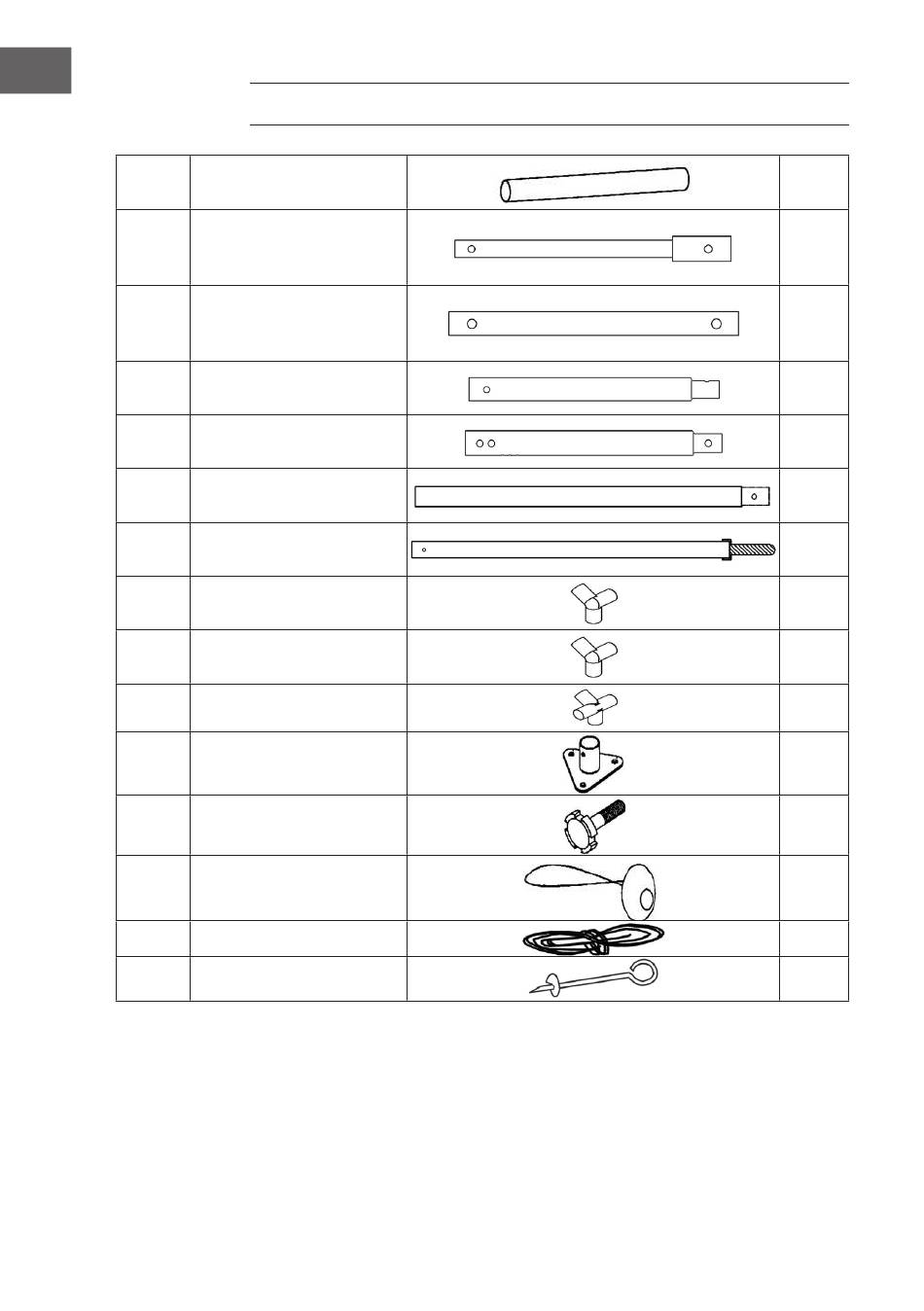

INDIVIDUAL PARTS

Inclination bar Ø3.8 cm,
powder-coated
Horizontal brace
Ø3.8 cm, powder coated
Horizontal brace
Ø3.8 cm, powder coated
Vertical brace Ø 4.8 cm,
powder coated
Vertical brace Ø 4.8 cm,
powder coated
Support tube for canopy,
lower part
Support tube for canopy,
upper part
Corner piece for
horizontal braces
Corner piece for vertical
braces
4-way corner piece
Foot plate
Screw for foot plate
Fastening rubber with
ball end
Tension cord for canopy
Peg for tension cord
x8
x9
x9
x8
x8
x3
x3
x2
x4
x6
x8
x8
x46
x3
x3
