Hrvatski
Sadržaj pakiranja
• PCIe Riser kartica
• Korisnički priručnik
Sigurnosne upute
• Zaštitite proizvod od vlage
• Izbjegavajte antistatički elektricitet prilikom umetanja kartice
Ugradnja hardvera
1. Isključite računalo i odvojite kabel za napajanje.
2.
Otvorite kućište.
3. Ravno i pažljivo umetnite karticu u slobodan PCI Express utor dok potpuno
ne sjedne na mjesto.
4. Spojite kabel za napajanje vaše Riser kartice.
5. Sada možete instalirati karticu PCI 32 Bit 5 V u Riser karticu.
6. Vratit kućište i ponovno priključite kabel za napajanje u AC adapter.
ελληνικά
Περιεχόμενα συσκευασίας
• Κάρτα ανύψωσης PCIe
• Εγχειρίδιο χρήστη
Οδηγίες ασφάλειας
• Προστατεύστε το προϊόν από την υγρασία
• Αποφύγετε αντιστατικό ηλεκτρισμό όταν εγκαθιστάτε την κάρτα
Εγκατάσταση υλικού
1. Σβήστε τον Η/Υ σας και βγάλτε το καλώδιο τροφοδοσίας από την πρίζα.
2.
Ανοίξτε το περίβλημα.
3. Εισάγετε την κάρτα απευθείας και προσεκτικά στην ελεύθερη υποδοχή PCI
Express, μέχρι να κάτσει καλά.
4. Συνδέστε ένα καλώδιο ρεύματος της παροχής ενέργειάς σας στην κάρτα
ανύψωσης.
5. Τώρα μπορείτε να εγκαταστήσετε μια κάρτα PCI 32 Bit 5 V στην κάρτα
ανύψωσης.
6.
Συνδέστε ξανά το περίβλημα και συνδέστε το καλώδιο τροφοδοσίας στην
πρίζα ρεύματος.
User manual
Mode d'emploi
Uživatelská příručka
Manuale utente
Manual de utilizare
Korisnički priručnik

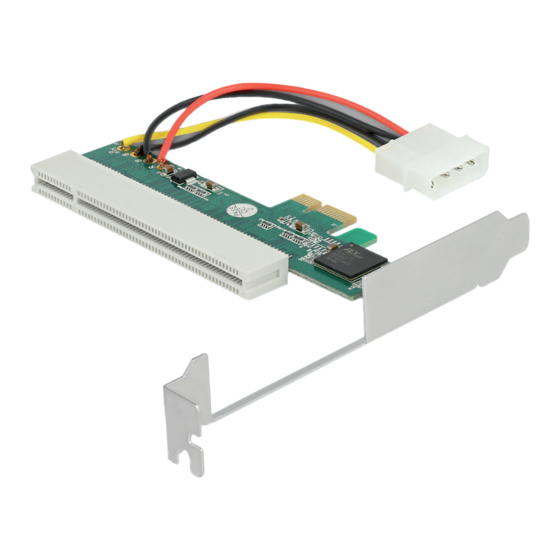

Riser Card PCI Express x1 to
1 x PCI 32 Bit 5 V Slot
English
Package content
• PCIe riser card
• User manual
Safety instructions
• Protect the product against moisture
• Avoid anti-static electricity when installing the card
Hardware Installation
1. Turn off your PC and unplug the power cord.
2.
Open the housing.
3. Insert the card straight and carefully into the free PCI Express slot, until it is
well seated.
4. Connect a power cable of your power supply to the riser card.
5. Now you can install a PCI 32 Bit 5 V card into the riser card.
6. Reattach the housing and connect the power cord to the AC adapter.
Deutsch
Packungsinhalt
• PCIe Riser Karte
• Bedienungsanleitung
Sicherheitshinweise
• Produkt vor Feuchtigkeit schützen
• Vermeiden Sie antistatische Aufladung beim Einbau der Karte
Hardwareinstallation
1. Schalten Sie Ihren PC aus, ziehen Sie das Netzkabel.
2.
Öffnen Sie das Gehäuse.
3. Stecken Sie die Karte gerade und vorsichtig in den freien PCI Express Slot,
bis sie fest sitzt.
4. Verbinden Sie ein Stromkabel Ihres Netzteils mit der Riser Karte.
5. Nun können Sie eine PCI 32 Bit 5 V Karte in der Riser Karte installieren.
6. Schließen Sie das Gehäuse wieder und verbinden Sie das Netzkabel mit dem
Netzteil.
Bedienungsanleitung
Manual del usuario
Instrukcja obsługi
Bruksanvisning
Használati utasítás
Εγχειρίδιο χρήστη
Product-No:90063
User manual no:90063-a
