1. Sicherheit / Safety Symbole und Bedeutung / Symbols and meaning Symbol Bezeichnung Symbol Meaning Allgemeine Warnung vor einer Gefahren- General warning of a dangerous area stelle Symbol Bezeichnung Symbol Meaning Achtung! Hochspannung! Warning! High voltage! Berühren verboten Do not touch Symbol Bezeichnung Symbol...

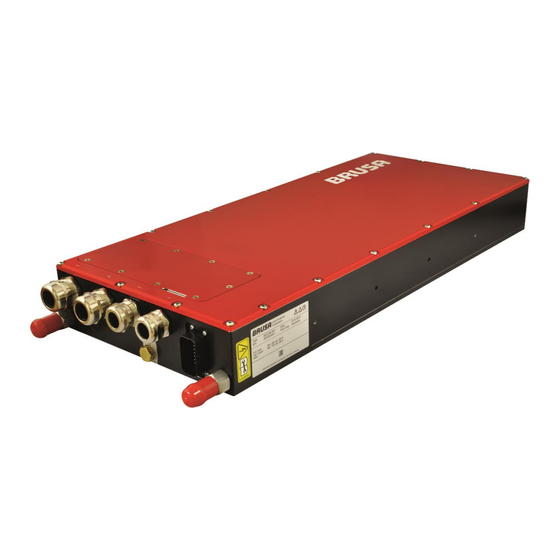

2. Montage BDC546 Montageanleitung LEBENSGEFAHR! DANGER TO LIFE! Gerät und die Leistungskabel müssen Device and powercables must be free of electrical Spannungsfrei sein! voltage! Gerät mithilfe der acht an der Gehäu- Mount the device using the eight M6 thread seseite angebrachten M6 Gewindeboh- holes on the left and right side.
Seite 5
Kabel mithilfe der Kabelschuhe im Ge- Connect the power cables with the wiring ter- rät montieren. Schrauben sind bereits minals in the device. Use the screws already im Gerät vormontiert. mounted in the device. o High-Side und Low-Side korrekt an- o Connect the high-side and low-side power cable schliessen! on the correct terminal!
