Separett Tiny 1270-01 Installationsanleitung Seite 3

Tiny
®

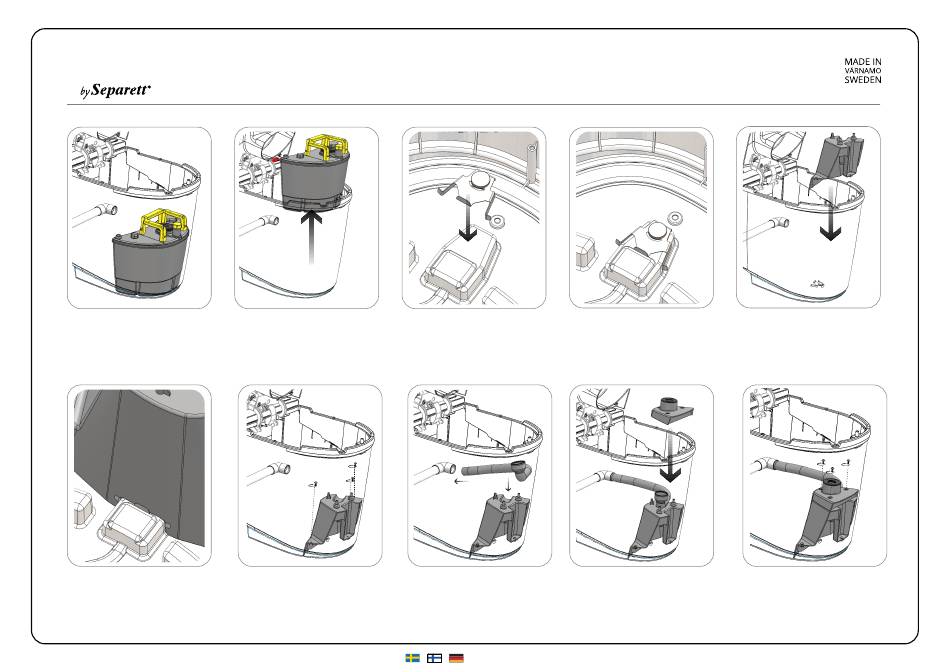

Convert 1270-01 --> 1271-01
Installation of the urine hose needs to be performed before the change can be done
1. 2.
Open the lid and have
necessary tools ready container
Screwdriver torx T25
5. 6.
Make sure that the three
edges of the magnet holder that keep the assembly base
is on the outside of the in position
assembly base
3.
Take out the urine Place the magnet holder
If the toilet is connected to power, the
red light goes out
7.
Tighten the three screws
Place the urine hose to
the connector
Place the magnet holder
8.
Place the fixing block and
gasket
www.separett.com
4.
Place the assembly base
9.
Tighten the three screws.
Ready to use
12475-02
