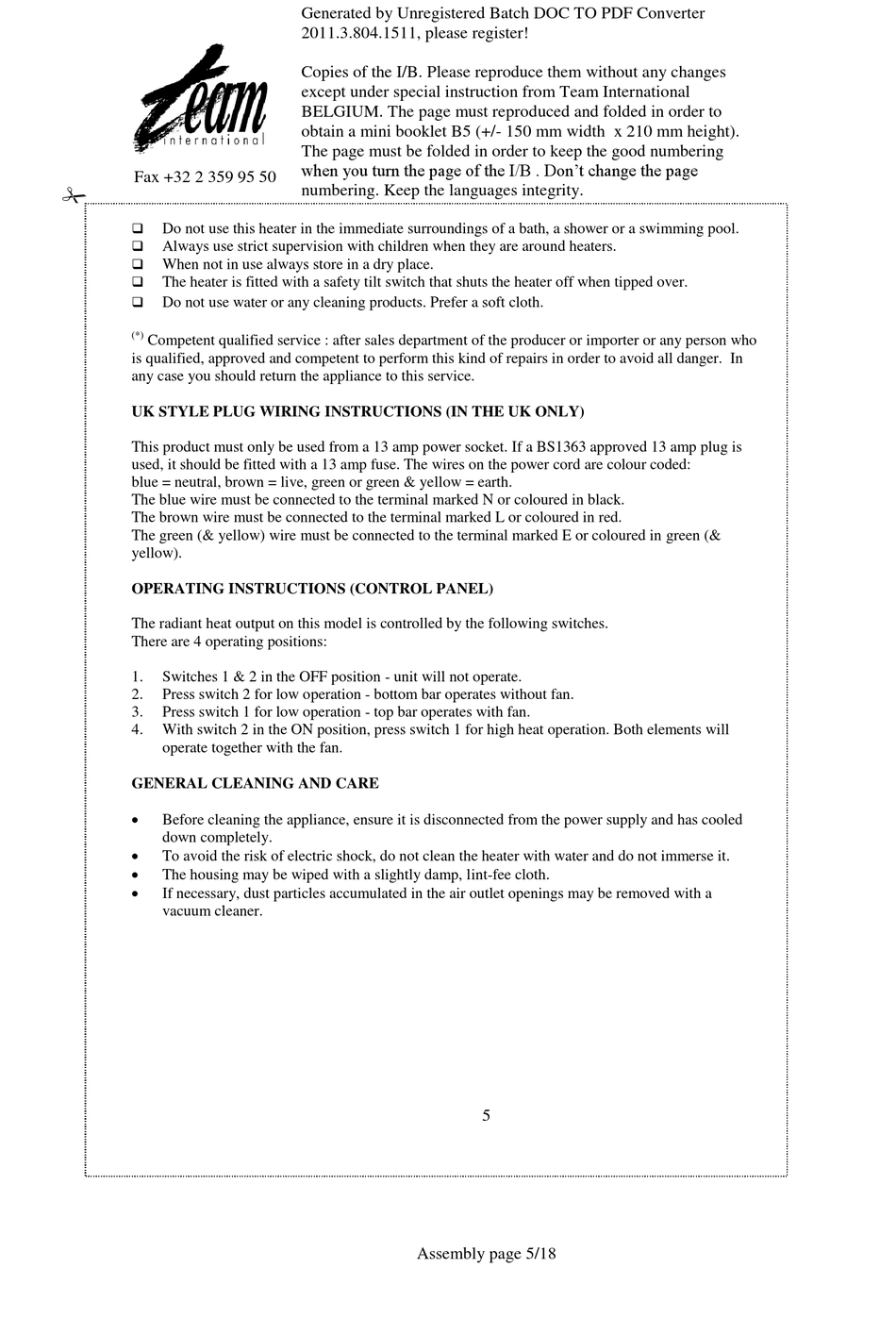

Team IH 1200 Gebrauchsanleitung Seite 5

Fax +32 2 359 95 50


Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

Always use strict supervision with children when they are around heaters.

When not in use always store in a dry place.

The heater is fitted with a safety tilt switch that shuts the heater off when tipped over.

Do not use water or any cleaning products. Prefer a soft cloth.
(*)
Competent qualified service : after sales department of the producer or importer or any person who
is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In
any case you should return the appliance to this service.
UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)
This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is
used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded:
blue = neutral, brown = live, green or green & yellow = earth.
The blue wire must be connected to the terminal marked N or coloured in black.
The brown wire must be connected to the terminal marked L or coloured in red.
The green (& yellow) wire must be connected to the terminal marked E or coloured in green (&
yellow).
OPERATING INSTRUCTIONS (CONTROL PANEL)
The radiant heat output on this model is controlled by the following switches.
There are 4 operating positions:
1. Switches 1 & 2 in the OFF position - unit will not operate.
2. Press switch 2 for low operation - bottom bar operates without fan.
3. Press switch 1 for low operation - top bar operates with fan.
4. With switch 2 in the ON position, press switch 1 for high heat operation. Both elements will
operate together with the fan.
GENERAL CLEANING AND CARE

Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled
down completely.

To avoid the risk of electric shock, do not clean the heater with water and do not immerse it.

The housing may be wiped with a slightly damp, lint-fee cloth.

If necessary, dust particles accumulated in the air outlet openings may be removed with a
vacuum cleaner.
