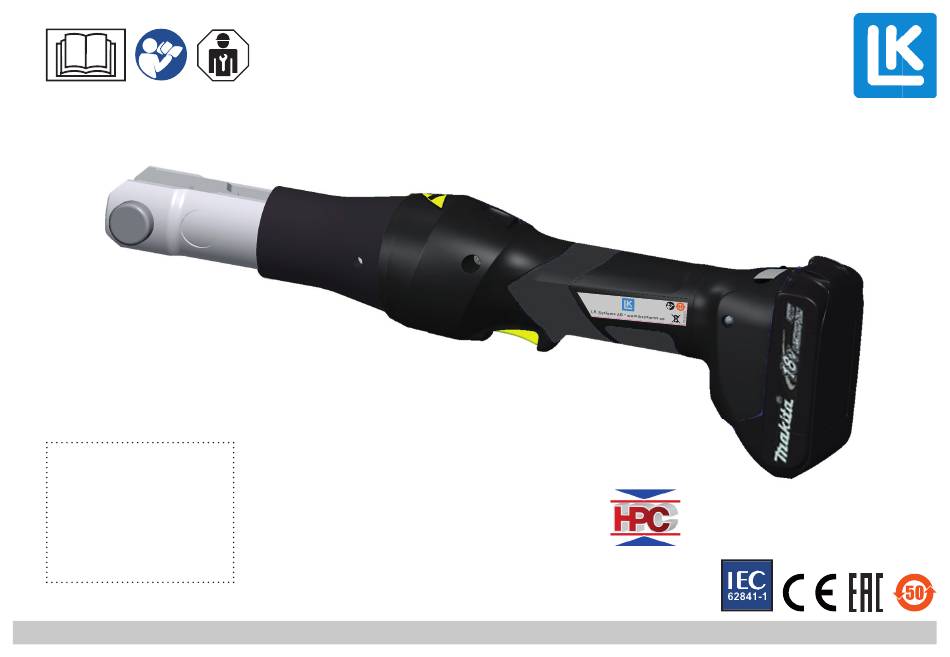

- Seite 1 LK Minipress Basic V3-15kN MAP215FLMLK Serialnumber Hydraulic Pressure Abb. ähnlich / pic. similar Check HE.20067_B © 11/2021 R&D-2 LK Systems AB • Box 66 • 16126 Bromma • Tel.: +46 (8) 50685100 • www.lksystems.se...
- Seite 2 LK Minipress Basic V3-15kN MAP215CFM For US and Canada only FCC ID: RFRMS42 • IC: 4957A-MS42 Model: CFM optional: This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt standard(s). Operation is subject to the following two conditions: (1) this...
- Seite 3 LK Minipress Basic V3-15kN MAP215CFM WARNING Read all safety warnings, instructions, illustrations and specifi cations provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference.
- Seite 4 LK Minipress Basic V3-15kN MAP215CFM 146,5 <70dB <2,5m/s +40°C -10°C 15 kN MAP215CFM MAP215FLM Pressing tool 15 kN 18 V Pressing tool 15 kN 18 V • • • • LK Systems AB • www.lksystems.se For use only with Klauke RALK18xx and Makita BL18xx battery series For use only with 18 V Makita battery 30% max.
- Seite 5 LK Minipress Basic V3-15kN MAP215CFM Scope of accessories Applications / Applikationer / Tillbehör Bruksområder / Käyttöalueet / Anvendelser Medfølgende tilbehør Stainless steel, steel Tarvikkeiden tarkoitus Rostfritt stål, stål max. 22 mm * Tilbehør Rustfritt stål, stål (28 mm upon request) Ruostumaton teräs, teräs...
- Seite 6 LK Minipress Basic V3-15kN MAP215CFM Attention Please follow the general installation/mapping instructions as well as the operation and Service instructions of the company Gustav Klauke including the respective written notes on the application range as well as installation and mapping instructions of the system supplier.
- Seite 7 LK Minipress Basic V3-15kN MAP215CFM PROFILE DIM XX Type Type Tyyppi Type General safety rules Abb. ähnlich / pic. similar General WORK SERVICE DON´T DO HE.20067_B © 11/2021 HE.16812_E © 11/2017 safety rules...
- Seite 8 LK Minipress Basic V3-15kN MAP215CFM Abb. ähnlich / pic. similar General WORK SERVICE DON´T DO HE.20067_B © 11/2021 HE.16812_E © 11/2017 safety rules...
- Seite 9 LK Minipress Basic V3-15kN MAP215CFM PROFILE DIM XX Type General Type safety rules Tyyppi Type WE (MP32) Abb. ähnlich / pic. similar General WORK SERVICE DON´T DO HE.20067_B © 11/2021 HE.16812_E © 11/2017 VIII safety rules...
- Seite 10 LK Minipress Basic V3-15kN MAP215CFM Abb. ähnlich / pic. similar General WORK SERVICE DON´T DO HE.20067_B © 11/2021 HE.16812_E © 11/2017 safety rules...
- Seite 11 LK Minipress Basic V3-15kN MAP215CFM on/off > 350° STOP ® Abb. ähnlich / pic. similar General WORK SERVICE DON´T DO HE.20067_B © 11/2021 HE.16812_E © 11/2017 safety rules...
- Seite 12 LK Minipress Basic V3-15kN MAP215CFM SAFETY 3 years or 10.000 operations 3 år eller 10 000 cykler ® 3 år eller 10 000 sykluser 3 vuotta tai 10 000 jaksoa 3 år eller 10.000 cykler ® ® WEEE 2012/19/EU Presswerkzeuge und Zubehör...
- Seite 13 LK Minipress Basic V3-15kN MAP215CFM ® DC18RC (BL1840) 36 min. RAL40 (BL1815) 15 min. RAL1 Li-ion & Ni-MH 7.2-18V 10 - 40°C All manuals are also available on www.Klauke.com / Alla manualer fi nns tillgängliga på Li-ion ® www.Klauke.com / Alle håndbøker fi nnes også på www.Klauke.com / Kaikki oppaat ovat saatavilla #884676B996 myös osoitteesta www.Klauke.com / Alle manualer fi...
- Seite 14 LK Minipress Basic V3-15kN MAP215CFM When/Milloin/Mikor/Når Why/Miksi/Miért/Hvorfor After working cycle Efter pressprocess 20 sec Työskentelyn jälkeen Etter arbeidsprosessen Efter afslutning af arbejdet After working cycle Efter pressprocess 20 sec/2Hz Työskentelyn jälkeen Etter arbeidsprosessen Efter afslutning af arbejdet While exceeding the temp. limit...
- Seite 15 LK Minipress Basic V3-15kN MAP215CFM When/Milloin/Mikor/Når Why/Miksi/Miért/Hvorfor After working cycle Error: the required pressure has not been reached. The operator has interrupted the pressing cycle manually while the motor was Efter pressprocess not running. Työskentelyn jälkeen Rätt oljetryck har ej uppnåtts eller har återgångsknappen tryckts in Etter arbeidsprosessen innan pressningen är slutförd.
- Seite 16 Handgeführtes batteriebetriebenes Elektrowerkzeug Typ LK Minipress Basic V3-15kN MAP215CFM (D) CE-´21 - Konformitätserklärung. Wir erklären in alleiniger Verantwortlichkeit, daß dieses Produkt mit den fol- (N) CE-´21 - Konformitetserklæring. Vi erklærer på eget ansvarlighet at dette produkt er i overensstemmelse genden Normen oder normativen Dokumenten übereinstimmt: EN 62841-1, EN ISO 12100, EN ISO 13857, med følgende standarder eller standard-dokumenter: EN 62841-1, EN ISO 12100, EN ISO 13857, EN 28662-1,...
