Please consult the equipment list.
Make sure the machine is in the O position (OFF).

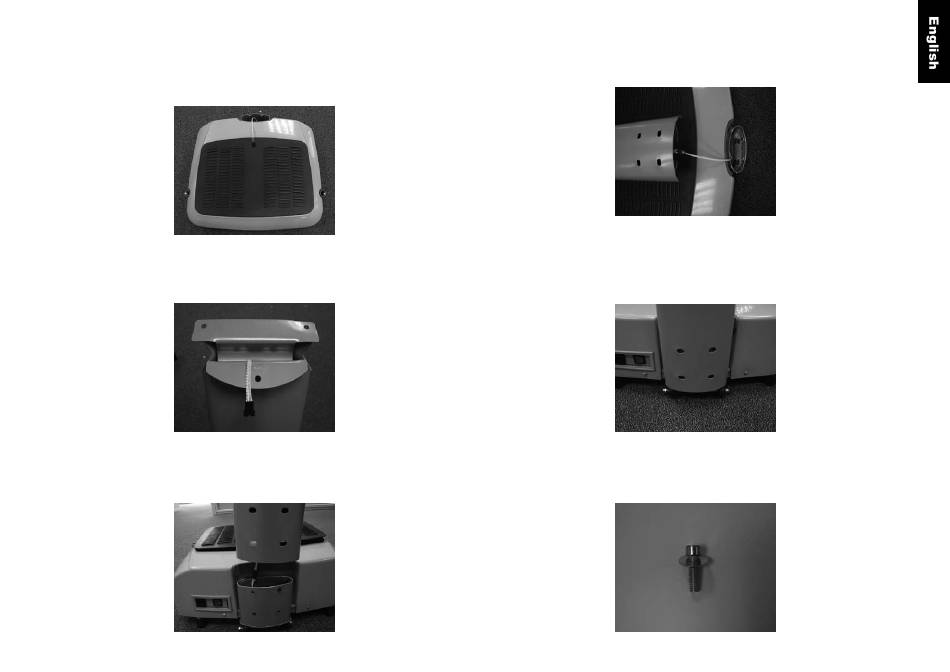

1 - Lay the main unit (Nº1) on an even surface
2 - Take wire Nº 2 and pass it down the middle of the suport tube Nº 3. Please pay attention to have the larger
connector at the top. With some cello tape (not supplied) tape the larger connector of the wire Nº 2 onto the
main suport tube Nº 3. Please see the photo below
3 - When you assemble the main suport tube, make sure the wires remain connected.
4 - Connect the bottom connector of wire Nº 2 with the wire in the main unit. Please see the photo. Make
sure the wires remain connected.
5 - Now slot the main suport tube Nº 3 into the main unit Nº 1.
- Please see photo below
6 - Take screws Nº 4 and washers Nº 5 and put together.
