Reset of the device

Allows you to reset the device without removing any previously set configuration parameters.

Smart thermostat connection

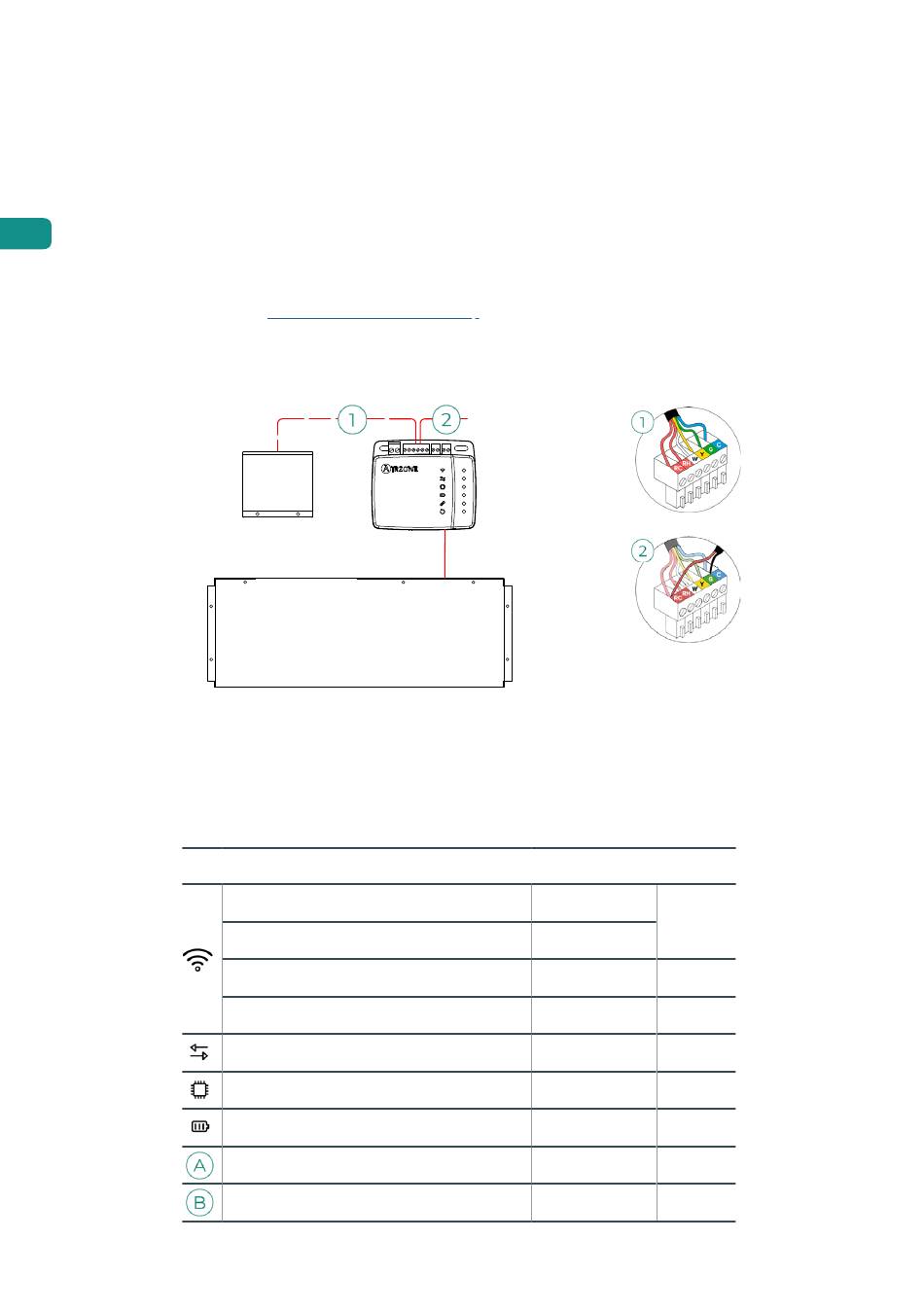

Port that receives signals from smart thermostats via the GYW lines. In addition, the terminal
EN
has another 3 pins for 24 Vac power supply (RH, RC, C).
You can link your smart thermostat account with the Airzone Cloud app. To do this, follow the
steps described in the
Once the connection is made, if there is no integration with a third-party account, it can be
configured if the control is carried out by the Airzone Cloud app or by the thermostat (by
default).

Power supply input

12 Vdc input that enables providing power to the Aidoo Pro device.
The 230 Vac - 12 Vdc power supply is supplied with the device.

Diagnostic LEDs

6
Airzone Cloud app Manual.
Smart
thermostat
INDOOR UNIT
Connecting to a Wi-Fi network
Connected to a Wi-Fi network
Connected to the server
Not configured
Cloud Communications
Microprocessor activity
Power supply
Transmission of data to the indoor unit
Reception of data from the indoor unit
Power supply
unit not
External power input for
smart thermostat
provided
Meaning
Blinking
Steady
Steady
Off
Blinking
Blinking
Steady
Blinking
Blinking
Green
Blue
-
Red
Green
Red
Red
Green
