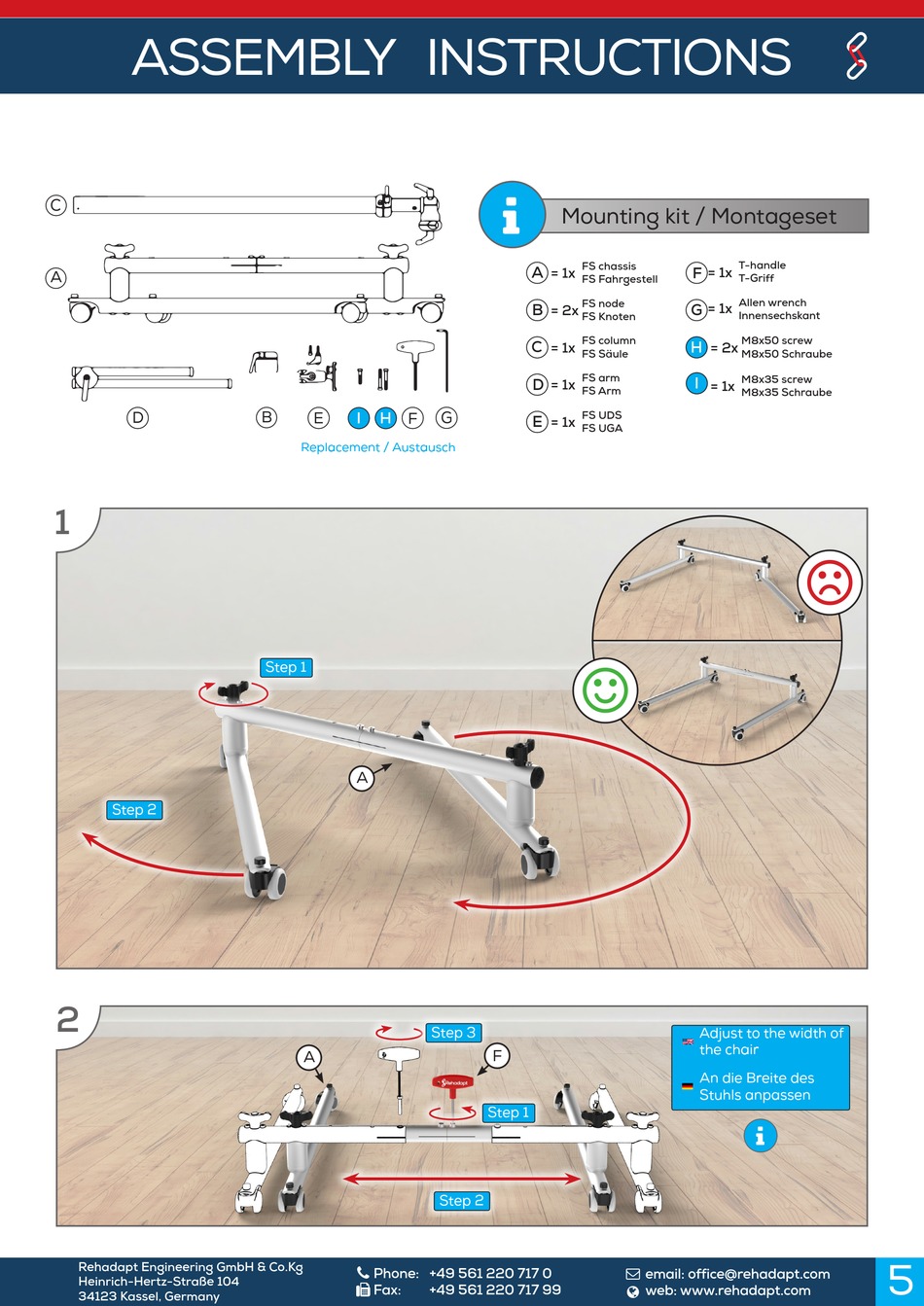

ASSEMBLY INSTRUCTIONS
C
A
D
1
Step 2
2
Rehadapt Engineering GmbH & Co.Kg
Heinrich-Hertz-Straße 104
34123 Kassel, Germany
B
I
H
E
F
Replacement / Austausch
Step 1
A
Step 3
A
Phone: +49 561 220 717 0
Fax:
+49 561 220 717 99
i
Mounting kit / Montageset
FS chassis
A
= 1x
FS Fahrgestell
FS node
B
= 2x
FS Knoten
FS column
C
= 1x
FS Säule
FS arm
D
= 1x
FS Arm
G
FS UDS
E
= 1x
FS UGA
F
Step 1
Step 2
T-handle
F
= 1x
T-Griff
Allen wrench
= 1x
G
Innensechskant
M8x50 screw
H
= 2x
M8x50 Schraube
M8x35 screw
I
= 1x
M8x35 Schraube
Adjust to the width of
the chair
An die Breite des
Stuhls anpassen
email: office@rehadapt.com
web: www.rehadapt.com
